NXP Semiconductors

UM11227

NTM88 family of tire pressure monitor sensors

User manual Rev. 6 — 24 April 2020

163 / 205

aaa-031073

HV CONTROL

LOGIC

Bandgap Out

wakeup1

supply

wakeup2

Reset3p3b

SIM handshake

RTI

wakeup

VOLTAGE

REGULATOR

dda

dda_sw

dd_sw

FRC

RTI

LVD/POR

CIRCUIT

HV DETECT

CIRCUIT

LV CONTROL

LOGIC

REGISTERS

MCU Internal Address, Data, Interrupt, and Control Bus

freeze1

freeze2

RTI Clock

RTI Out

ExtClk

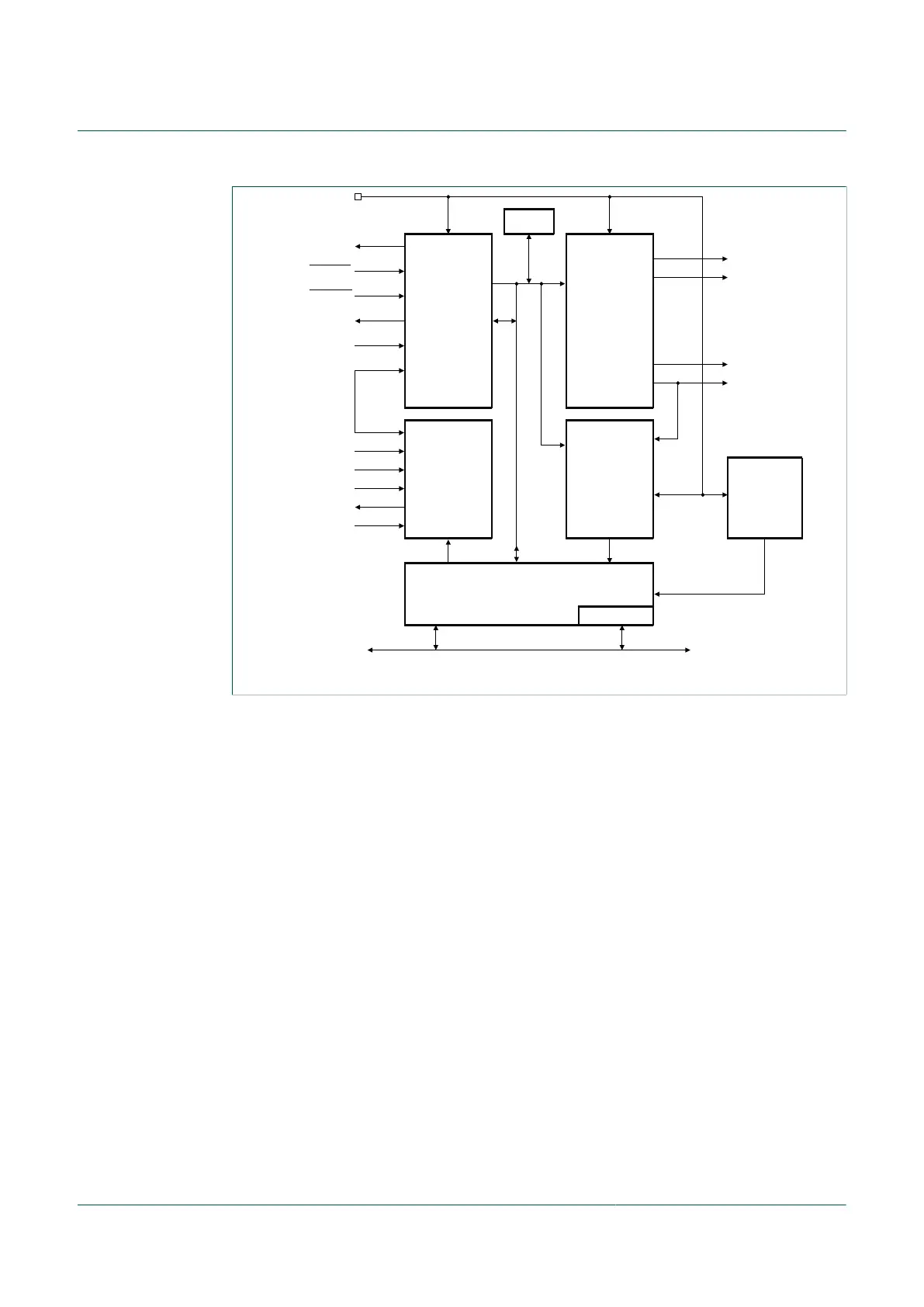

Figure 52. Power management controller module block diagram
