3-22
Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions

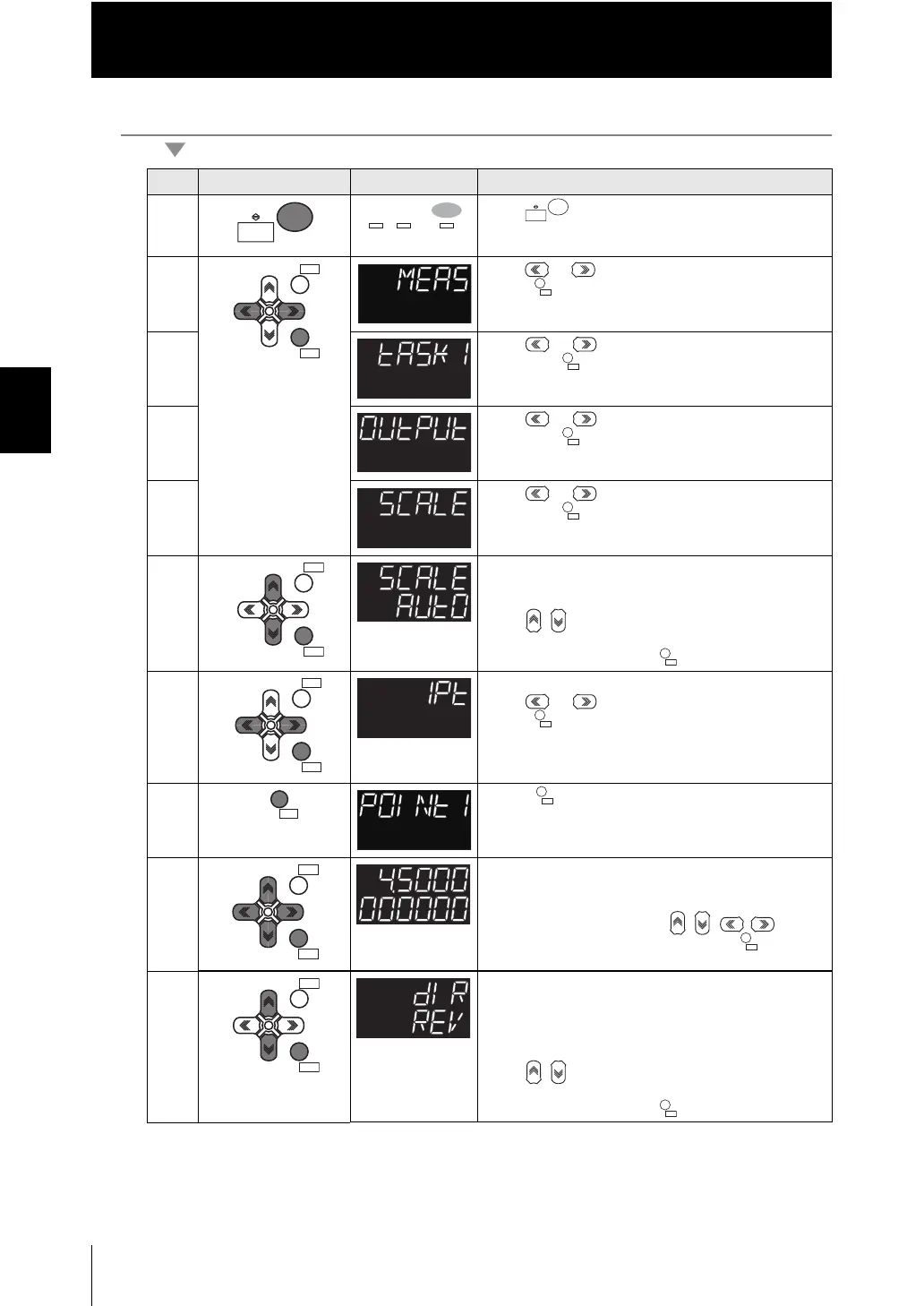

Operating procedure
Steps
Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "MEAS" and
press key.
3 Press or keys to select either of "TASK1"
and press key.
4 Press or keys to select either of "OUTPUT"
and press key.
5 Press or keys to select either of "SCALE"
and press key.
6 Select "AUTO" as the scaling type.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "AUTO" and press key.
7 Select "One point."
Press or keys to select either of "1PT" and
press key.
8 Press key when the main display shows
"POINT1."
9 The current measured value is displayed on the main
display and the current setting value is displayed on
the sub-display.
To edit numerical values use / / / keys.
Enter the setting value and then press key.
10 Set the increment/decrement direction.
"DIR" is displayed on the main display and the
incremental/decremental directions ("FWD": the NEAR
side as + and "REV": the FAR side as +) are displayed
on the sub-display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "AUTO" and press key.
RUN
FUN
TEACH
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERORST/
ESC
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
To Next Page
