Chapter 3 SETTINGS FOR FUNCTIONS
Chapter 3
Setting the Output Conditions
3-23
ZW
User’s Manual

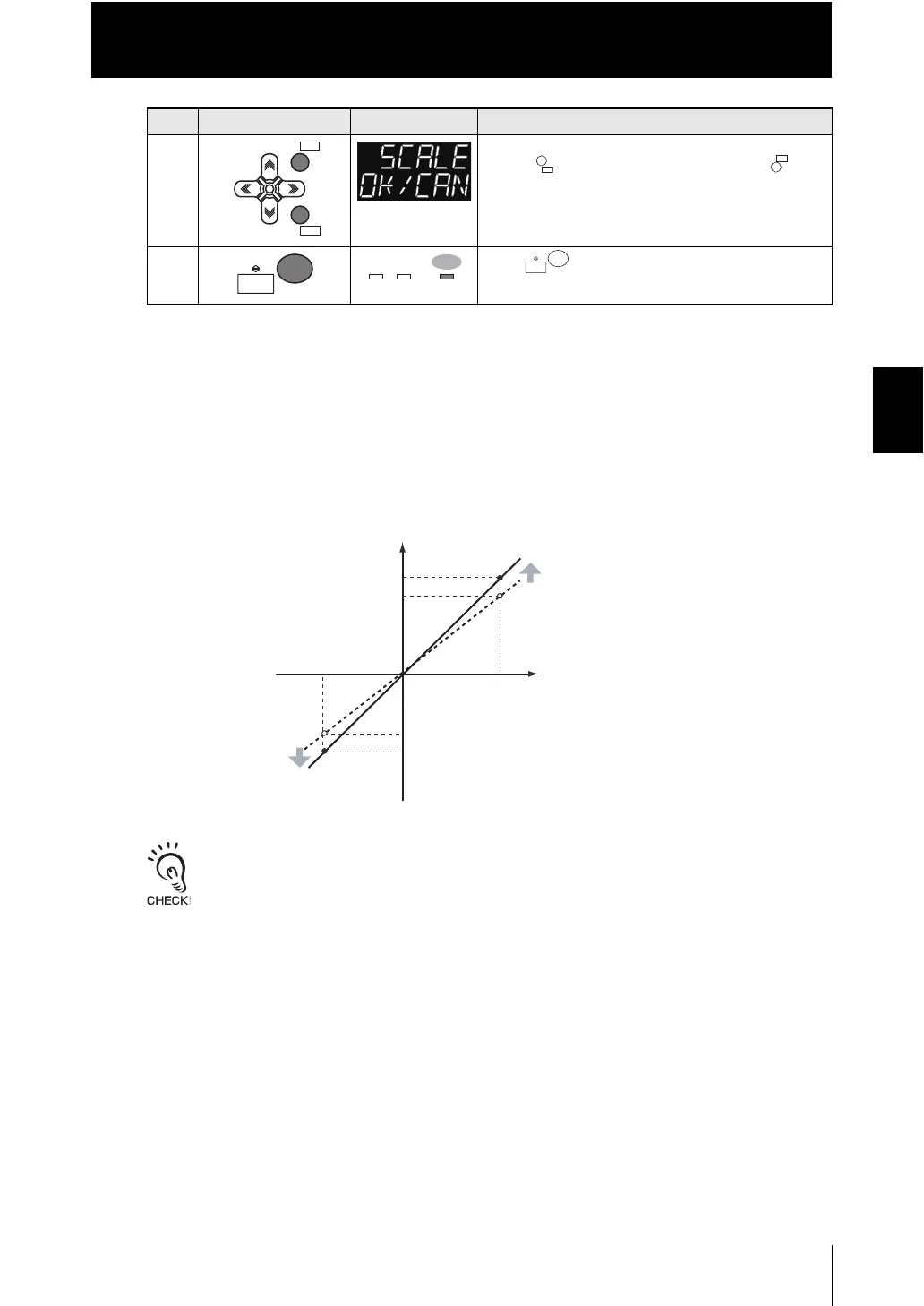

● Two-point scaling
A measurement is performed at two positions and offset values are set for that
measured value. (Default value: OFF)
Example: When correcting display values to match actual distances
Separate the two specified points by at least 1 % of the rated measuring range for the connected
Sensor Head.
For example, for ZW-S40, the two measured points must be separated by at least 12 mm x 0.01 =
0.12 mm as the measuring range is 12 mm 6 mm).
11 "OK/CAN" is displayed on the sub-display.
Press key to execute the scaling or key
to cancel.
12 Press key for two seconds to enter the RUN
mode.
Steps
Key operation Display Description
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERORST/
ESC
RUN
FUN
TEACH
RUN
FUN
TEACH
4.0
-3.0
-2.8
3.8
-3.0
4.0
Display value
(mm)
Measured value
(mm)
Point 2
Point 1
To Next Page
