Omron ZW Series User Manual

3-24
Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions
Operating procedure

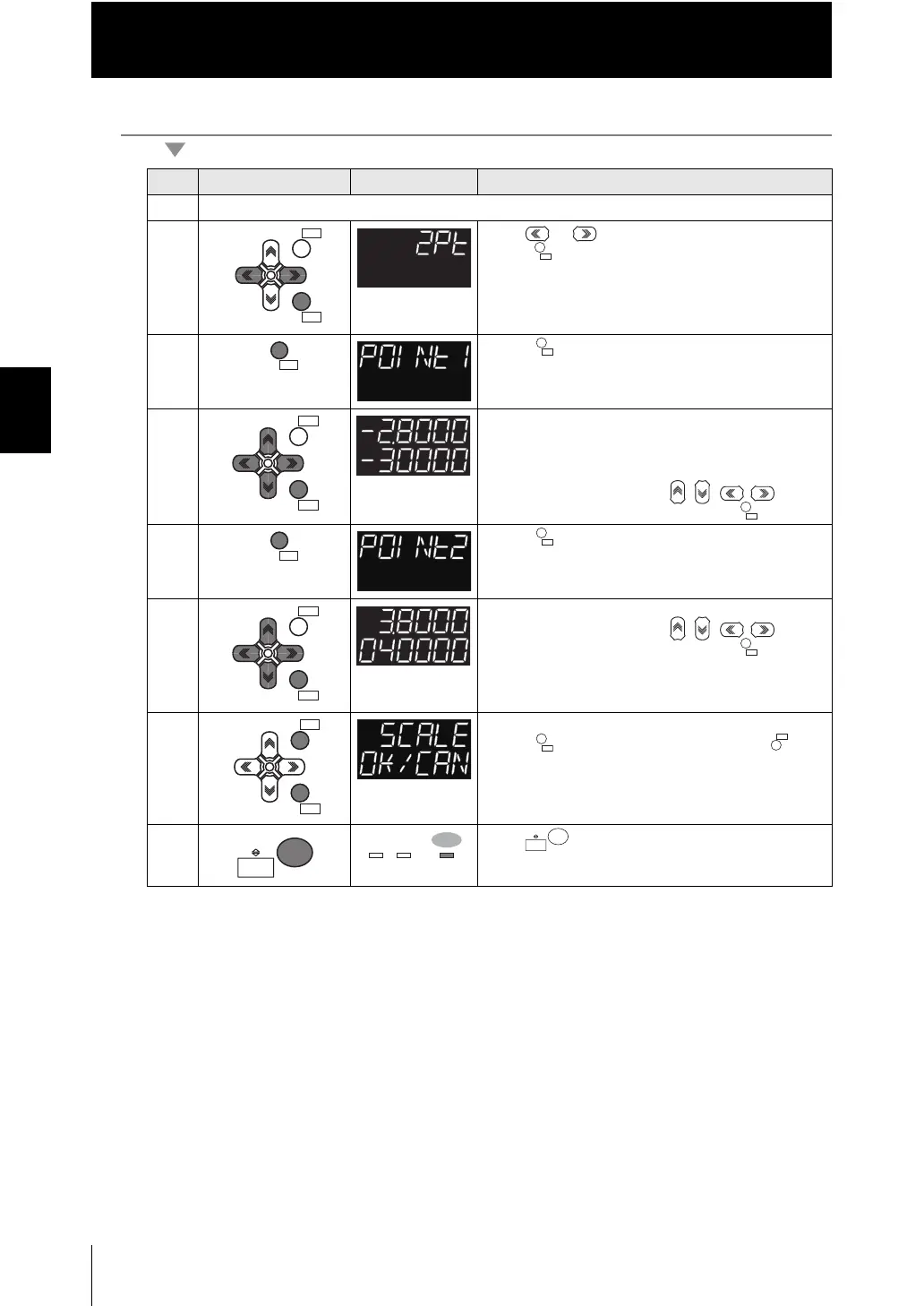

Steps Key operation Display Description
1 - 6 For moving to SCALE - AUTO, see steps 1 to 6 in p.3-22
7 Press or keys to select either of "2PT" and
press key.
8 Press key when the main display shows
"POINT1."
9 Set the measured value of point 1.
The current measured value is displayed on the main
display and the current setting value is displayed on
the sub-display.
To edit numerical values use / / / keys.
Enter the setting value and then press key.
10 Press key when the main display shows
"POINT2."
11 Set the measured value of point 2.
To edit numerical values use / / / keys.
Enter the setting value and then press key.
12 "OK/CAN" is displayed on the sub-display.
Press key to execute the scaling or key
to cancel.
13 Press key for two seconds to enter the RUN
mode.
