Chapter 3 SETTINGS FOR FUNCTIONS
Chapter 3
Setting the Output Conditions
3-25
ZW
User’s Manual

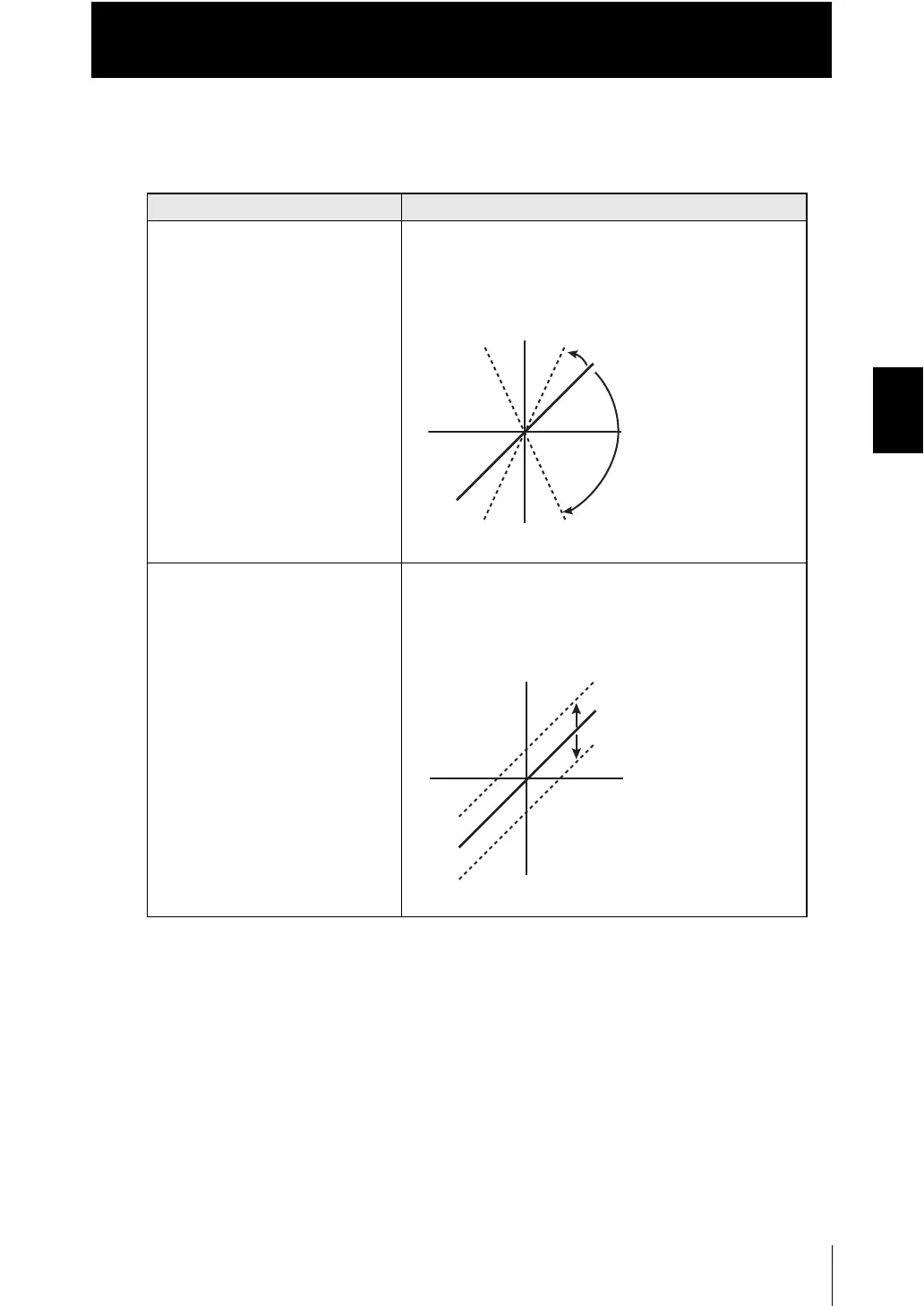

■ Manual scaling
Set the scaling by entering the correction value.
Setting [Display] Description
Span [SPAN] Sets the inclination of the sensor characters as a
coefficient.
Range: -2.0000 to 2.0000 (Default value: 1.0000)
Offset [OFFSET] Adds/subtracts a fixed value to or from the measured
value.
Range: -999.999999 to 999.999 (Default value: 0)
-2.0
2.0
Measurement value
(mm)
Workpiece
displacement
Measurement value
(mm)
Workpiece
displacement
