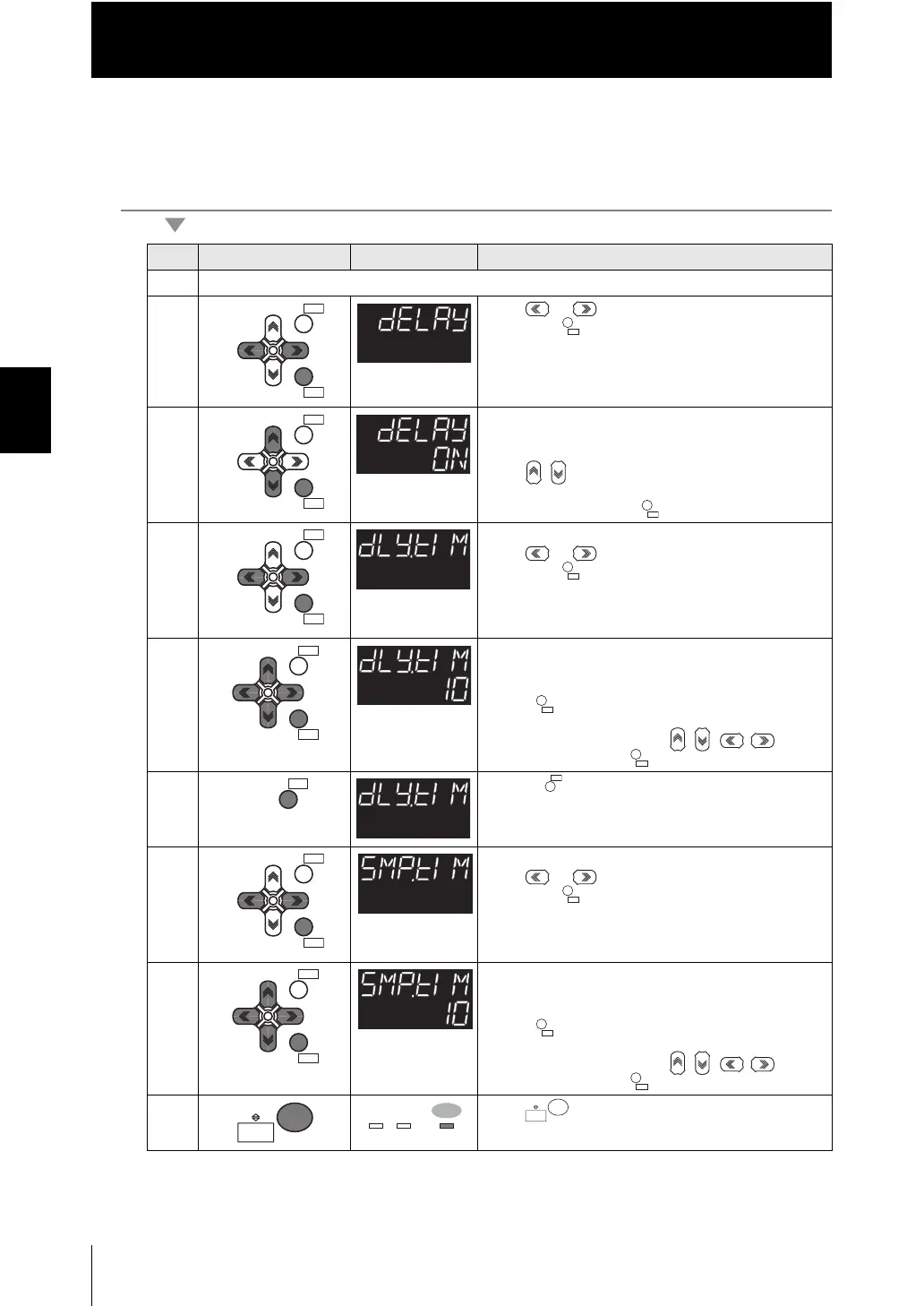

Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions
As an example, here is an explanation of the procedure for selecting the "10 ms" delay
time and sampling time settings.
Operating procedure
Steps
Key operation Display Description
1 - 5 For moving to HOLD, see steps 1 to 5 in p.3-31
6 Press or keys to select either of "DELAY"
and press key.
7 Enable the delay.
"DELAY" is displayed on the main display and the
current setting value is displayed on the sub-display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "ON" and press key.
8 Select the “Delay time”.
Press or keys to select either of "DLY.TIM"
and press key.
9 Set "10" as the delay time.
The current setting value is displayed on the sub-
display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "10" and press key.
10 Press key to return to the previous menu.
11 Select the “Sampling time”.
Press or keys to select either of "SMP.TIM"
and press key.
12 Set "10" as the sampling time.
The current setting value is displayed on the sub-
display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "10" and press key.
13 Press key for two seconds to enter the RUN
mode.
