Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions
As an example, here is an explanation of the procedure for selecting the "Real value"
zero reset type setting.

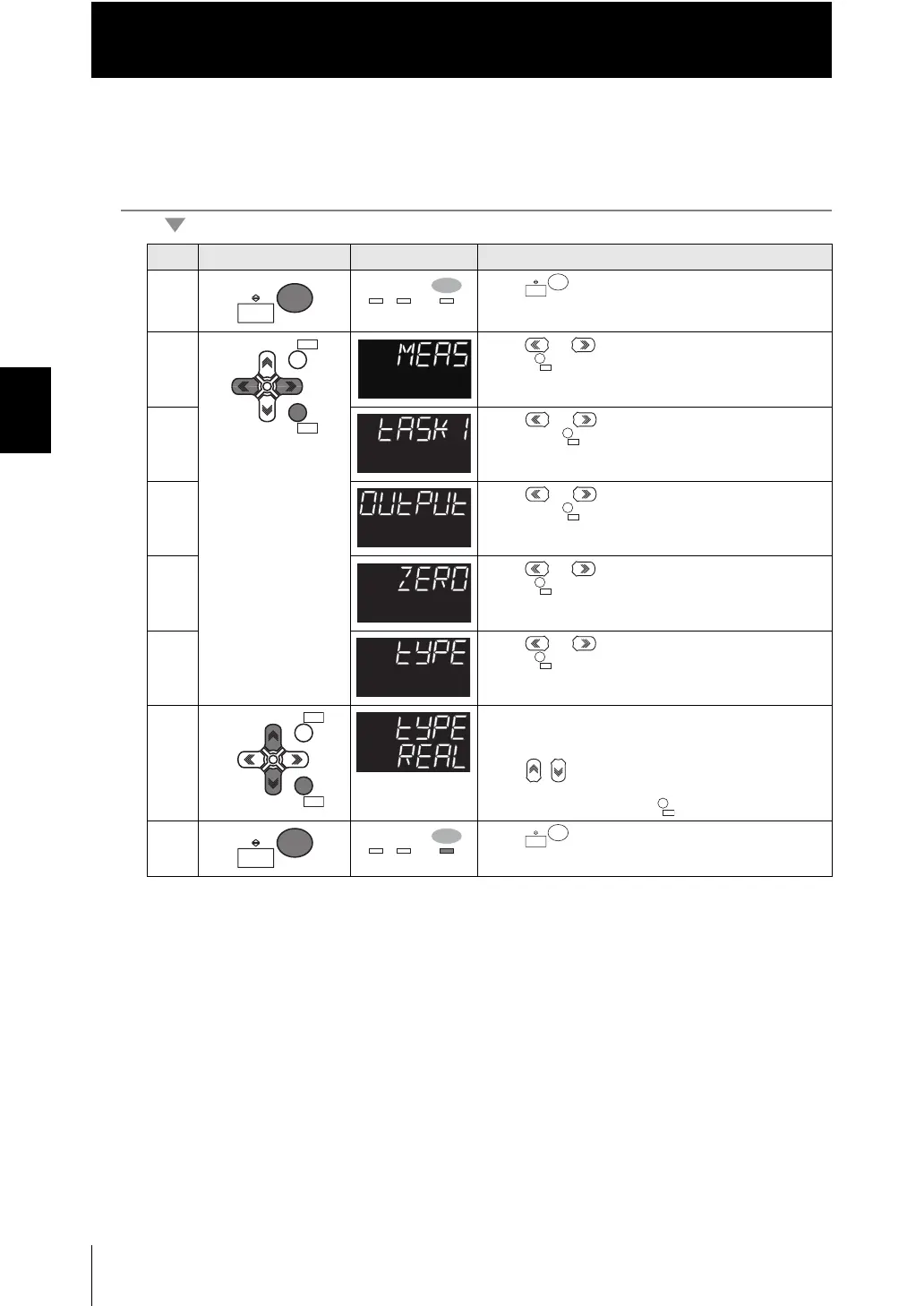

Operating procedure
Steps Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "MEAS" and
press key.
3 Press or keys to select either of "TASK1"
and press key.
4 Press or keys to select either of "OUTPUT"
and press key.
5 Press or keys to select either of "ZERO" and
press key.
6 Press or keys to select either of "TYPE" and
press key.
7 Select "Real value" as the zero reset type.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "REAL" and press key.
8 Press key for two seconds to enter the RUN
mode.
