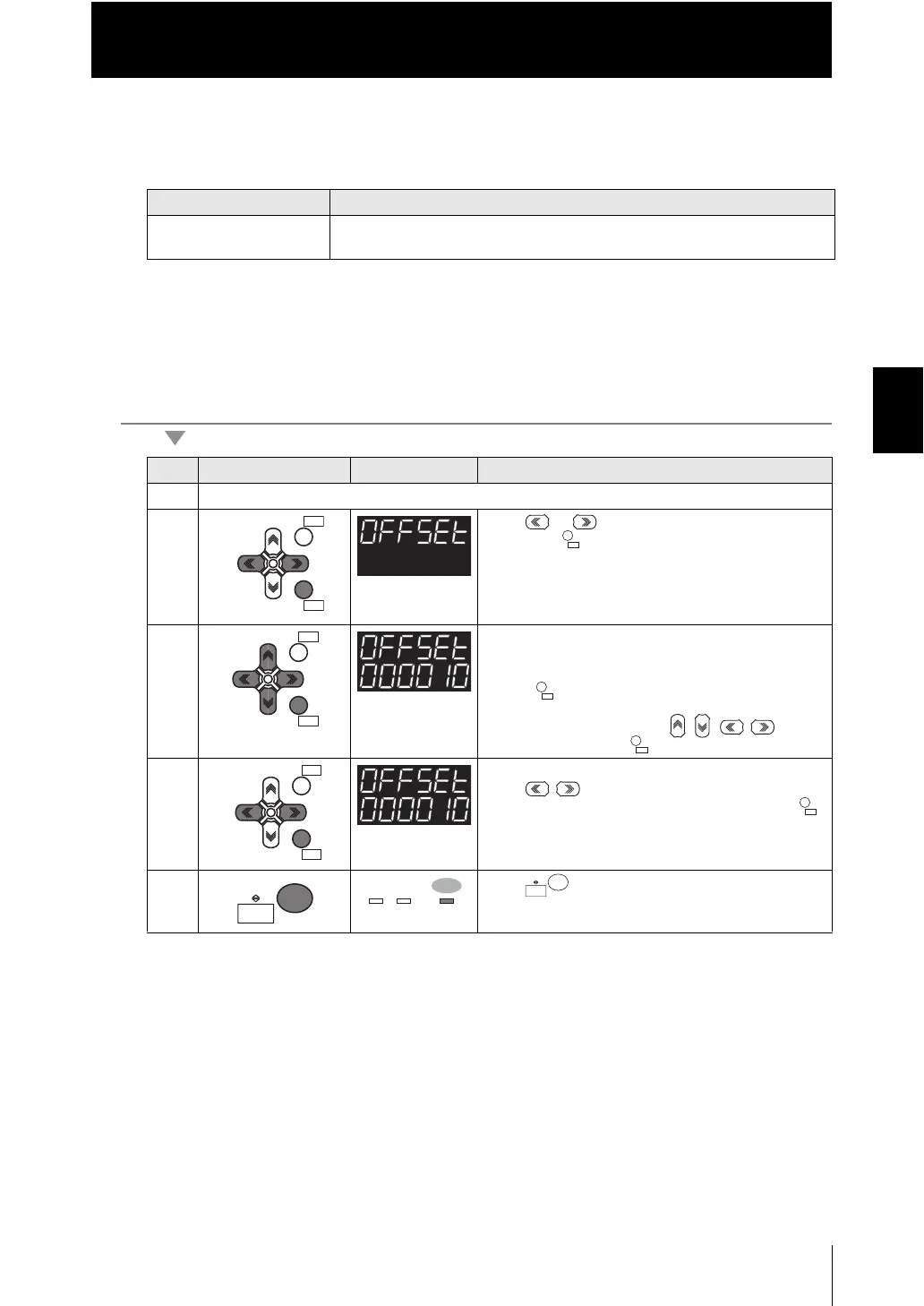

■Offset
Set an offset to set the reference value for zero reset to a value other than 0.
As an example, here is an explanation of the procedure for selecting the "10 mm"
reference value setting.
Operating procedure
Setting [Display] Description
Offset [OFFSET] Sets the reference value.
Range: -999.999999 to 999.999999 mm (Default value: 0)
Steps Key operation Display Description
1 - 5 For moving to ZERO, see steps 1 to 5 in p.3-38
6 Press or keys to select either of "OFFSET"
and press key.
7 Set "10" as the reference value.
The current setting value is displayed on the sub-
display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "10" and press key.
8 The decimal point is displayed.
Press / key to move the decimal point.
Determine the decimal point and then press the
key.
9 Press key for two seconds to enter the RUN
mode.
