Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions
■Status
Set valid/invalid for the zero reset function.
The status is set for each task.
As an example, here is an explanation of the procedure for selecting the "ON"
(Enabled) zero reset type setting.
Operating procedure
Setting [Display] Description
On [ON]
(Default value)
When a zero reset input is received externally, a zero reset is executed.
Off [OFF] Even when a zero reset input is received externally, a zero reset is not
executed.

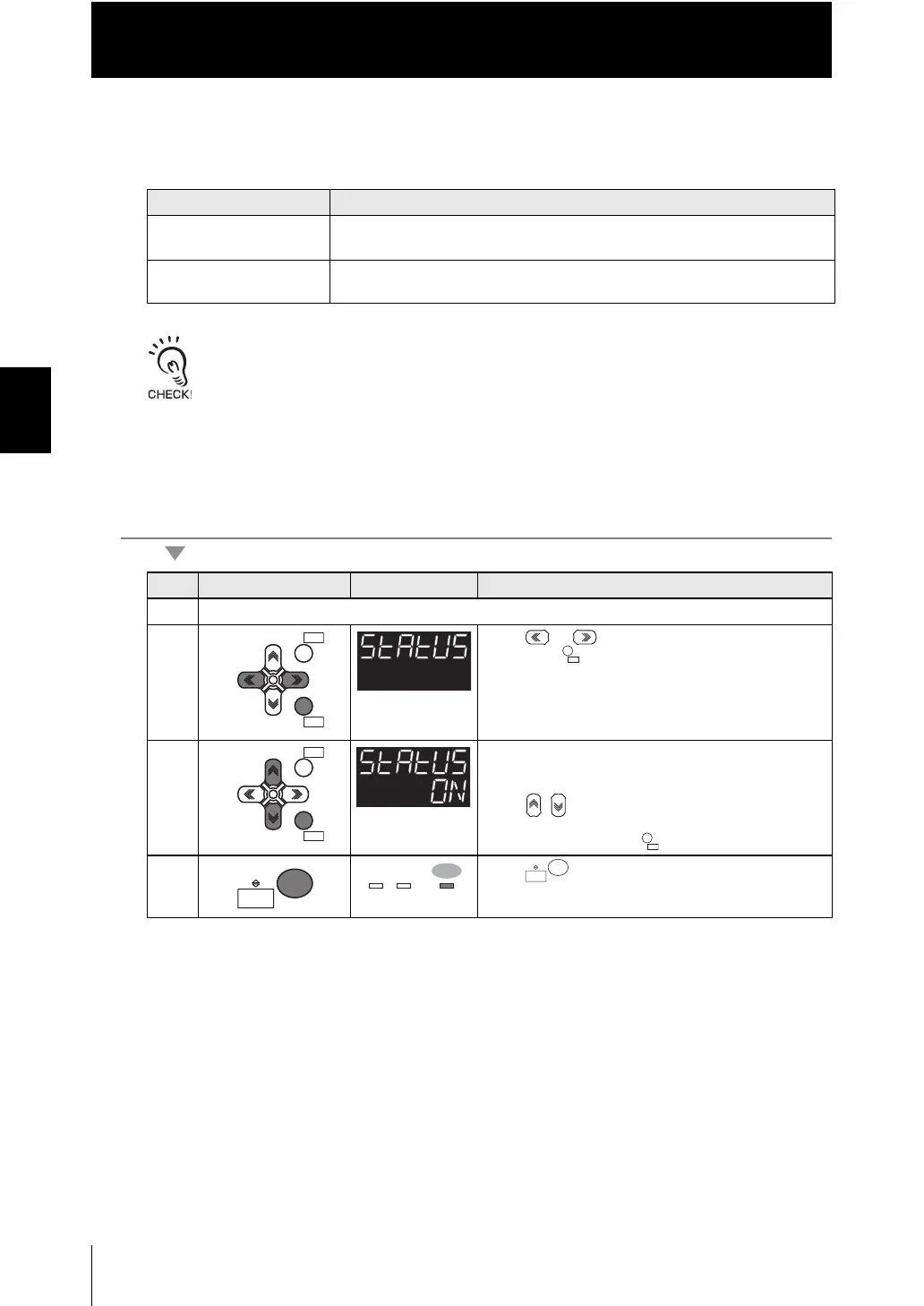

Steps
Key operation Display Description
1 - 5 For moving to ZERO, see steps 1 to 5 in p.3-38
6 Press or keys to select either of "STATUS"
and press key.
7 Enable the zero reset.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "ON" and press key.
8 Press key for two seconds to enter the RUN
mode.
