Chapter 4 I/O SETTINGS
Chapter 4
I/O Terminal Names and Functions
4-3
ZW
User’s Manual

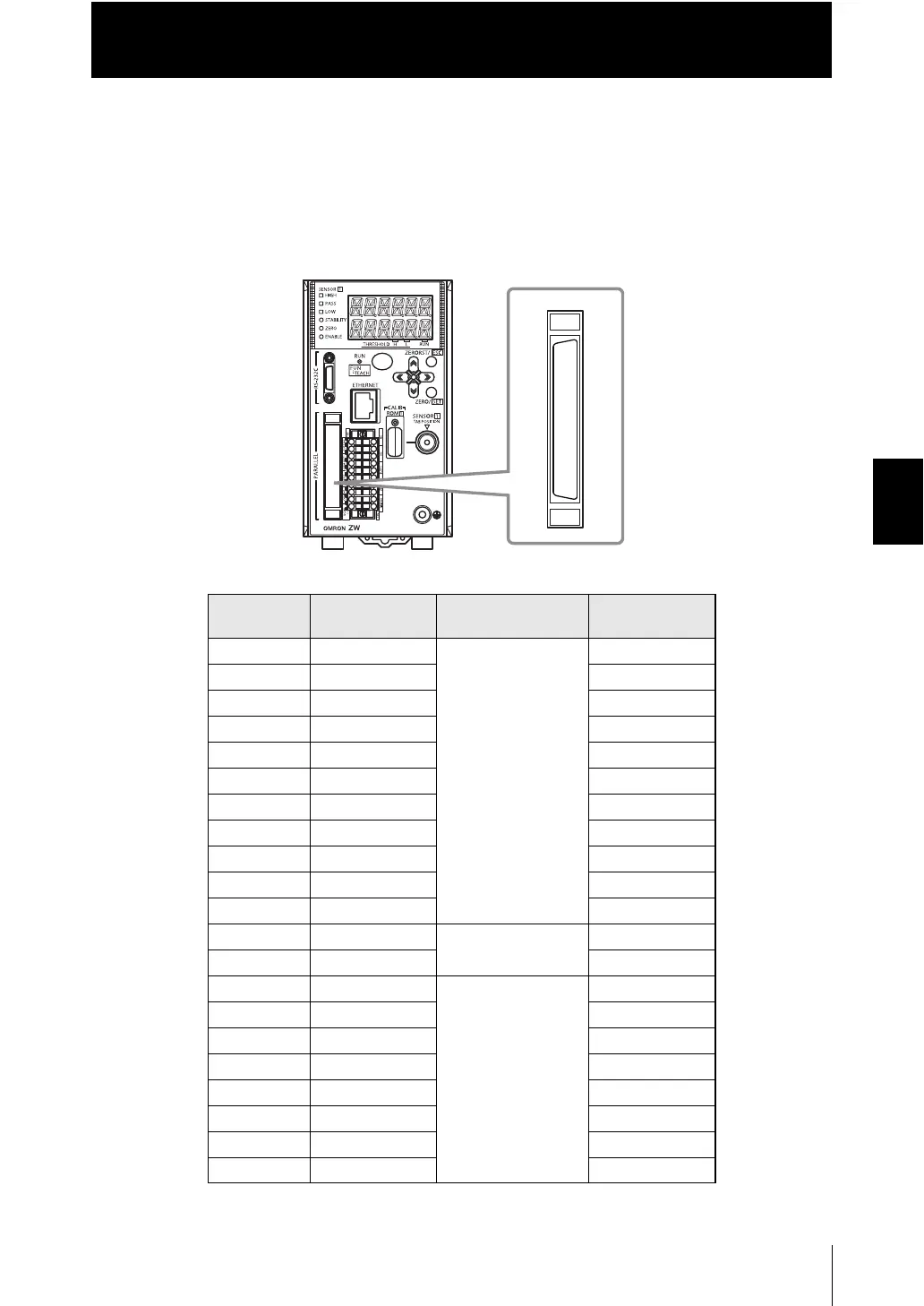

■ 52-pole extension connector
Used for bank number selection input, binary output object task selection input, binary
output, etc.
Compatible connector: FX2B series (Hirose Electric Co., Ltd.)
A parallel cable (ZW-XCP2) for an extension connector with 2 m cable is available.
(See p.6-15)
No. Signal name Description
ZW-XCP2
cable color
A1 BINARY20 Binary output Brown
A2 BINARY19 Red
A3 BINARY18 Orange
A4 BINARY17 Yellow
A5 BINARY16 Green
A6 BINARY15 Blue
A7 BINARY14 Purple
A8 BINARY13 Gray
A9 BINARY12 White
A10 BINARY11 Black
A11 BINARY10 Brown
A12 COM_OUT4 COM4 for output Red
A13 COM_OUT4 Orange
A14 BINARY9 Binary output Yellow
A15 BINARY8 Green
A16 BINARY7 Blue
A17 BINARY6 Purple
A18 BINARY5 Gray
A19 BINARY4 White
A20 BINARY3 Black
A21 BINARY2 Brown
To Next Page
