Chapter 4 I/O SETTINGS
ZW
User’s Manual
Chapter 4
Settings for I/O

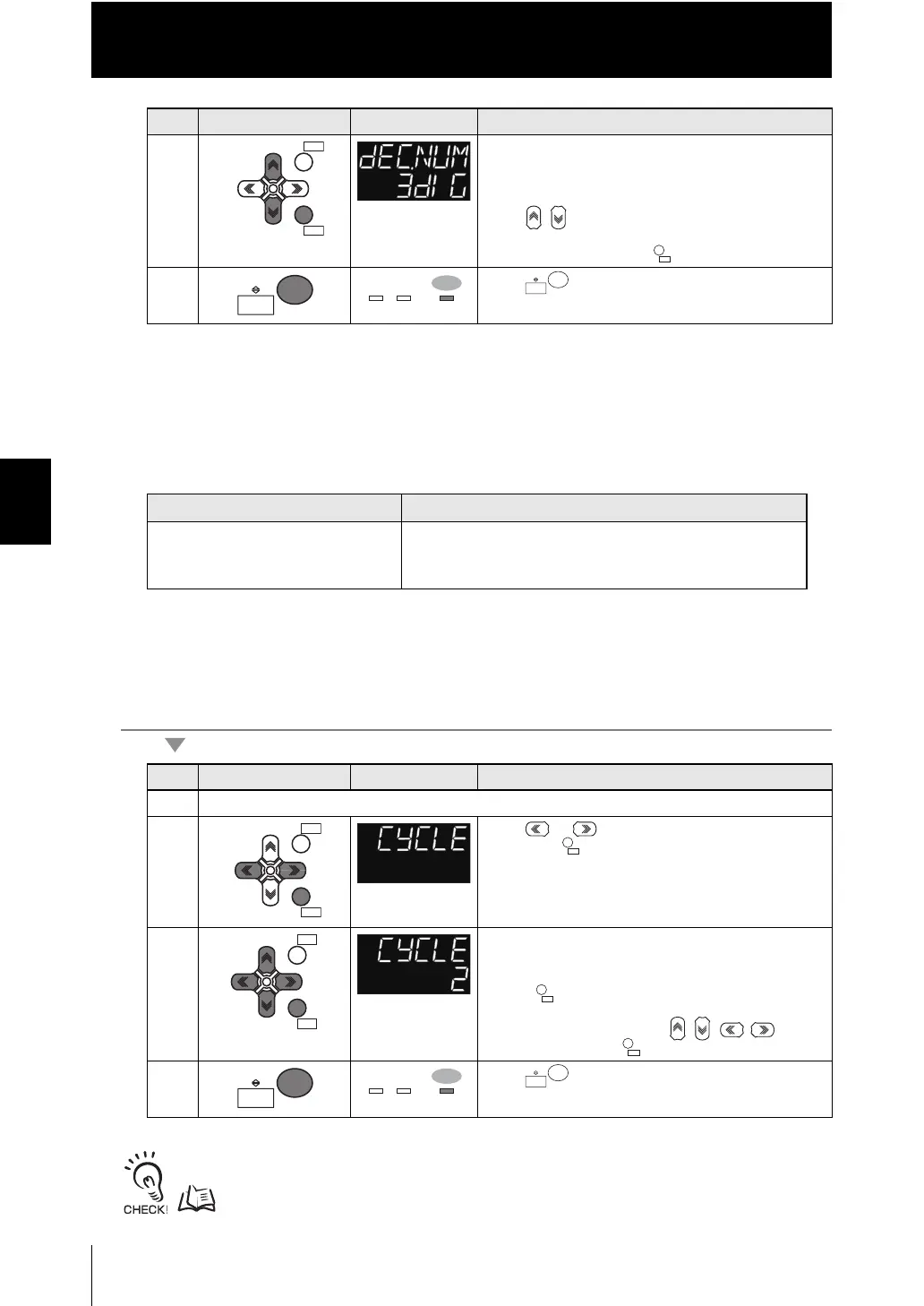

■ Output cycle setting
Sets the output cycle for binary output.
The output cycle can be set as an integer multiple of the measurement cycle.
As an example, here is an explanation of the procedure for setting the output cycle to
"2 times" the measurement cycle.
Operating procedure
The measuring cycle can be viewed in the "System Information" menu.
Checking Information p.3-47
5 Select "3" as the number of digits after the decimal
point.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "3DIG" and press key.
6 Press key for two seconds to enter the RUN
mode.
Setting [Display] Description
Output cycle [CYCLE] The binary data is output at the interval "setting value x
measurement cycle".
Range: 1 to 100 (Default value: 1)
Steps
Key operation Display Description
1 - 3 For moving to BINARY, see steps 1 to 3 in p.4-22
4 Press or keys to select either of "CYCLE"
and press key.
5 Set "2" as the output cycle.
The current setting value is displayed on the sub-
display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "2" and press key.
6 Press key for two seconds to enter the RUN
mode.
Steps
Key operation Display Description
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
RUN
FUN
TEACH
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERO/
SET
RUN
FUN
TEACH
