Chapter 4 I/O SETTINGS
Chapter 4
Settings for I/O
4-29
ZW
User’s Manual

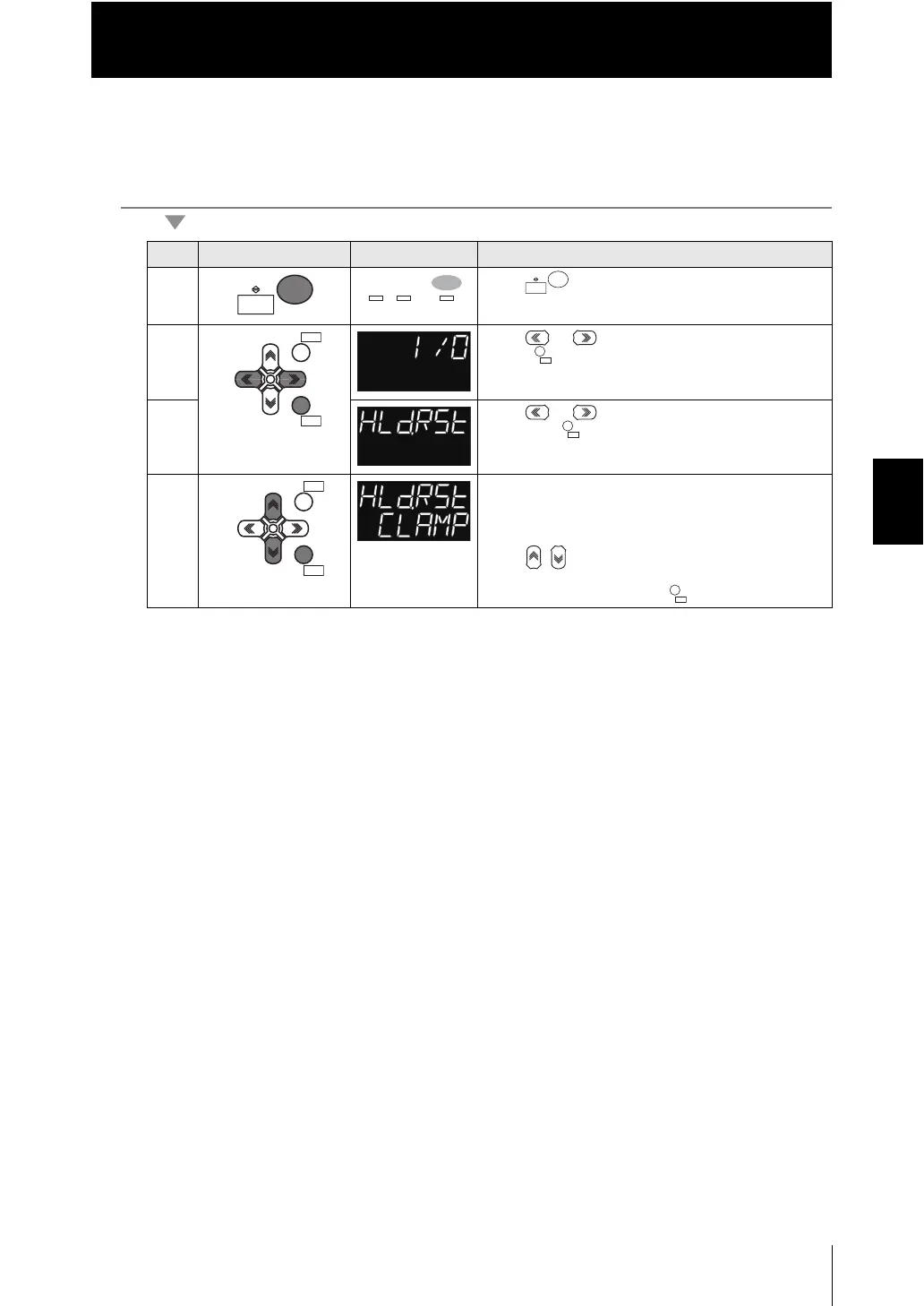

As an example, here is an explanation of the procedure for setting the processing for
when measurement is not possible to "Clamp".
Operating procedure
Steps
Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "I/O" and
press key.
3 Press or keys to select either of "HLD.RST"
and press key.
4 Select "Clamp" as the processing for when
measurement is not possible.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "CLAMP" and press key.
RUNRUN
FUNFUN
TEACHTEACH
L
H L RUNRUN
UNLIT
RUN
RUN
FUN
FUN
TEACH
TEACH
L
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
ZERO/
SET
SET
ZERO/ZERO/
SETSET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/ZERO/
SETSET
