Omron ZW Series User Manual

Chapter 4 I/O SETTINGS
Chapter 4
Timing Charts
4-45
ZW
User’s Manual
■ Task measurement result output
The following two output methods can be selected from.
• Measured value 1 mode (When measured values for multiple tasks are output
consecutively)
The preset tasks are output in order for each of a certain cycle.
• Measured value 2 mode (When measured values for multiple tasks are output by
BINARY_SEL input)
The tasks to output with binary output are selected with external input and the
measurement data for those tasks is output.
●

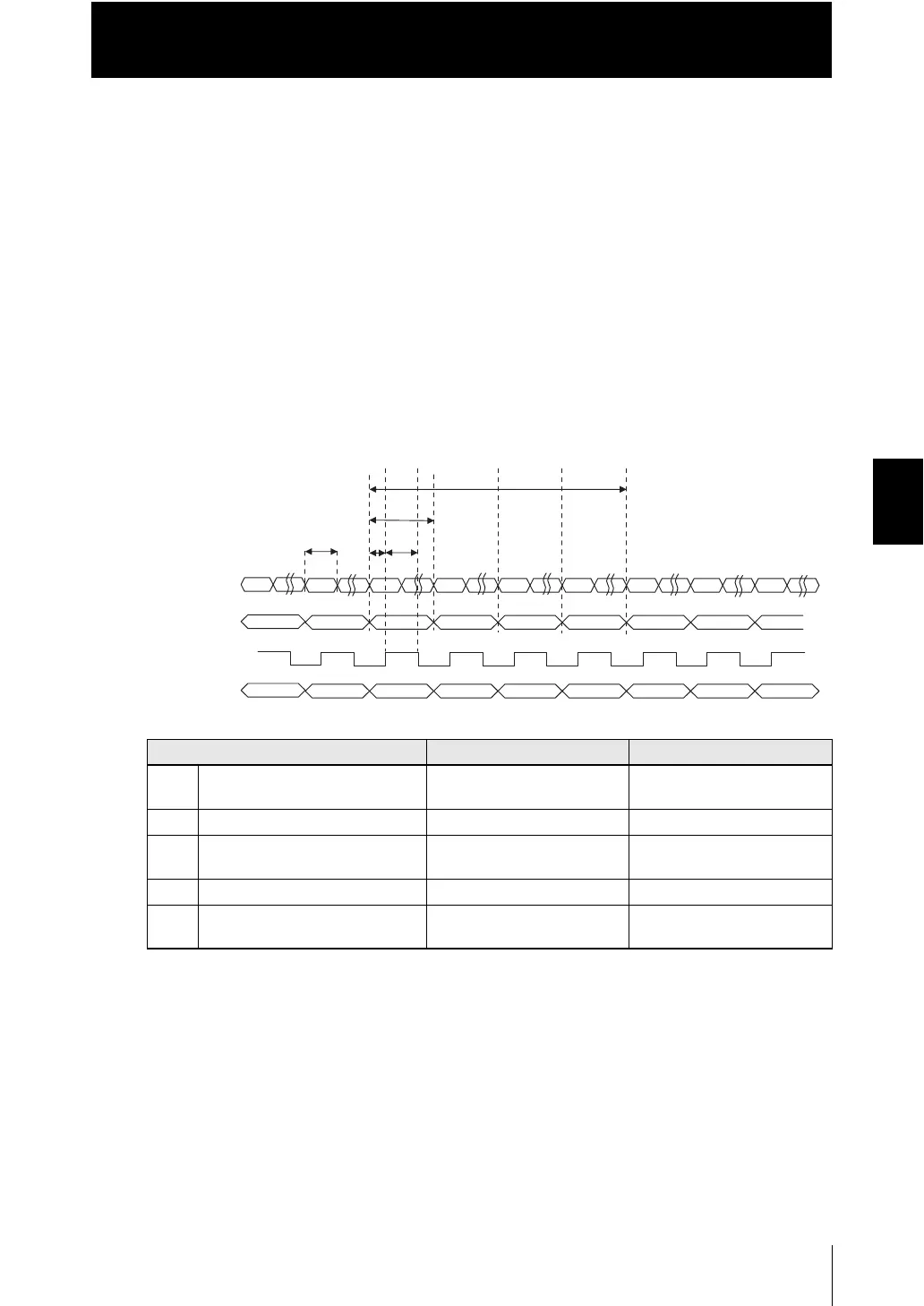

Measured value 1 mode (When measured values for multiple tasks are output
consecutively)
• Explanation of operations (When the results for all tasks are output)
(1) The TASK1 results are output (judgment output and binary output).
(2) After the judgment result and binary data output, the GATE signal is turned ON.
(3) The GATE output time after the GATE signal is turned ON, the GATE signal is
turned OFF.
(4) After the binary output update cycle, the TASK2 results are output (judgment
output and binary output).
(5) After the binary output update cycle, the TASK3 results are output (judgment
output and binary output).
Item Minimum Maximum
T0 Measurement cycle 0.5 ms Depends on the set conditions
(0.5 to 30 ms)
T4 GATE signal rise time - 0.2 ms
T5 Output time of GATE signal Setting value
(0.1 to 100.0 ms)
Setting value
(0.1 to 100.0 ms)
T15 Binary output update cycle T0Update cycle T0Update cycle
T16 Binary output update cycle 2 T0Update cyclenumber of
tasks output
T0Update cyclenumber of
tasks output
TASK3 result
010b
011b
(1) (2)
T0
T15
(3)
T4
(4) (5) (6) (7)
000b 001b 010b010b 011b 000b 001b
T16
T5
ON
OFF
Judgment output
(HIGH/PASS/LOW)
Binary output
GATE output
BINARY OUT output
TASK4 result TASK1 result TASK2 result TASK3 result TASK4 result TASK1 result TASK2 result TASK3 result
