4-44
Chapter 4 I/O SETTINGS
ZW
User’s Manual
Chapter 4

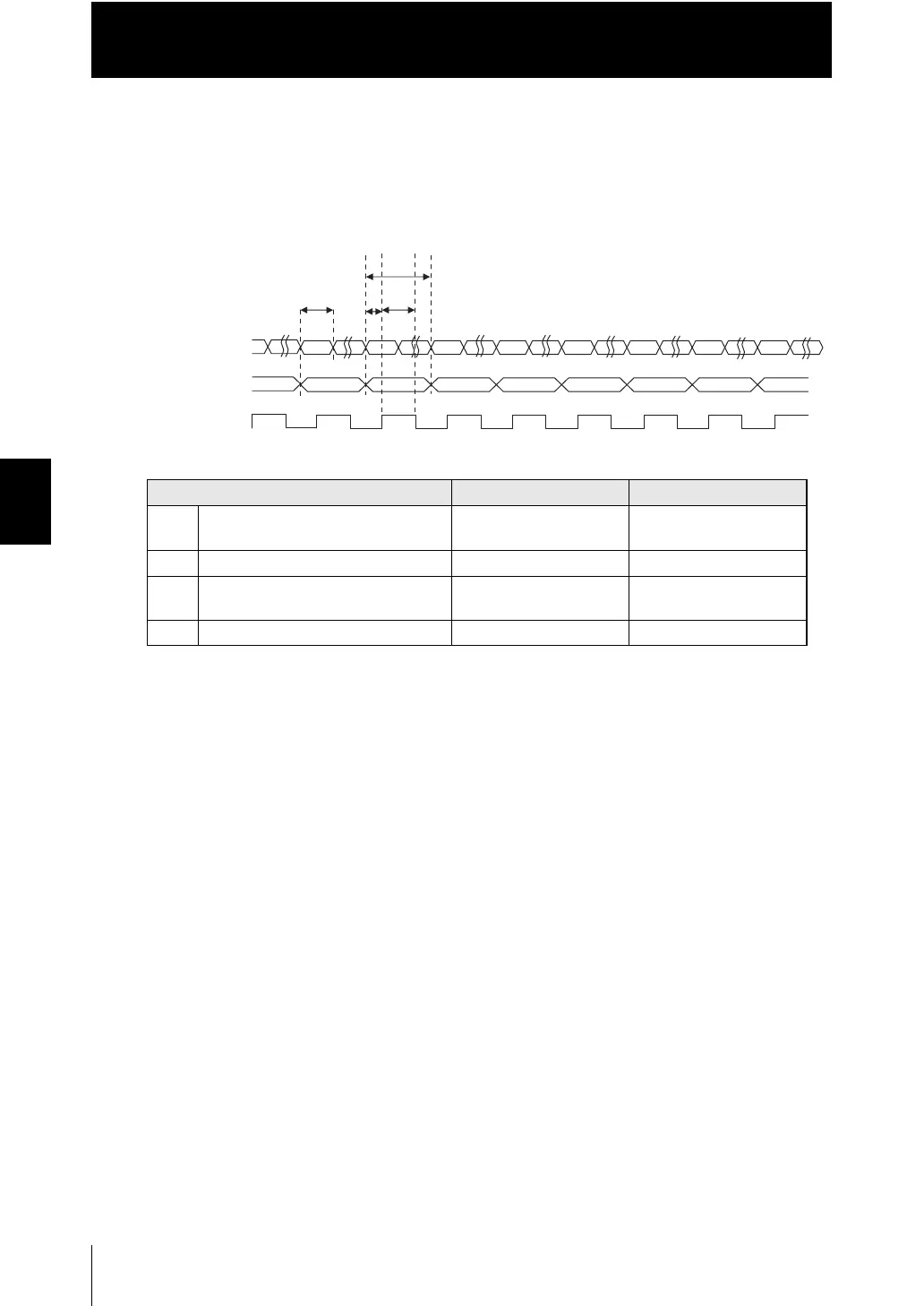

Timing Charts
■ Binary output
●
When the judgment results for all tasks are output at the same time (judgment value
mode (When the output target is a judgment value)
The binary output results can be acquired when the GATE output is ON.
• Explanation of operations
(1) The TASK2, 3 and 4 judgment results (HIGH/PASS/LOW) are output.
(2) After the judgment result output, the GATE signal is turned ON.
(3) The GATE output time after the GATE signal is turned ON, the GATE signal is
turned OFF.
(4) After the binary output update cycle, the TASK2, 3 and 4 judgment results are
updated.
Item Minimum Maximum
T0 Measurement cycle 0.5 ms Depends on the set
conditions
T4 GATE signal rise time - 0.2 ms
T5 Output time of GATE signal Setting value
(0.1 to 100.0 ms)
Setting value
(0.1 to 100.0 ms)
T15 Binary output update cycle T0Update cycle T0Update cycle
(1) (2)
T0
T15
(3)
T4
(4)
T5
ON
OFF
Judgment output
(HIGH/PASS/LOW)
Binary output
GATE output
Judge result Judge resultJudge resultJudge resultJudge resultJudge result
Judge result
To Next Page
