Chapter 4 I/O SETTINGS
Chapter 4
Timing Charts
4-43
ZW
User’s Manual

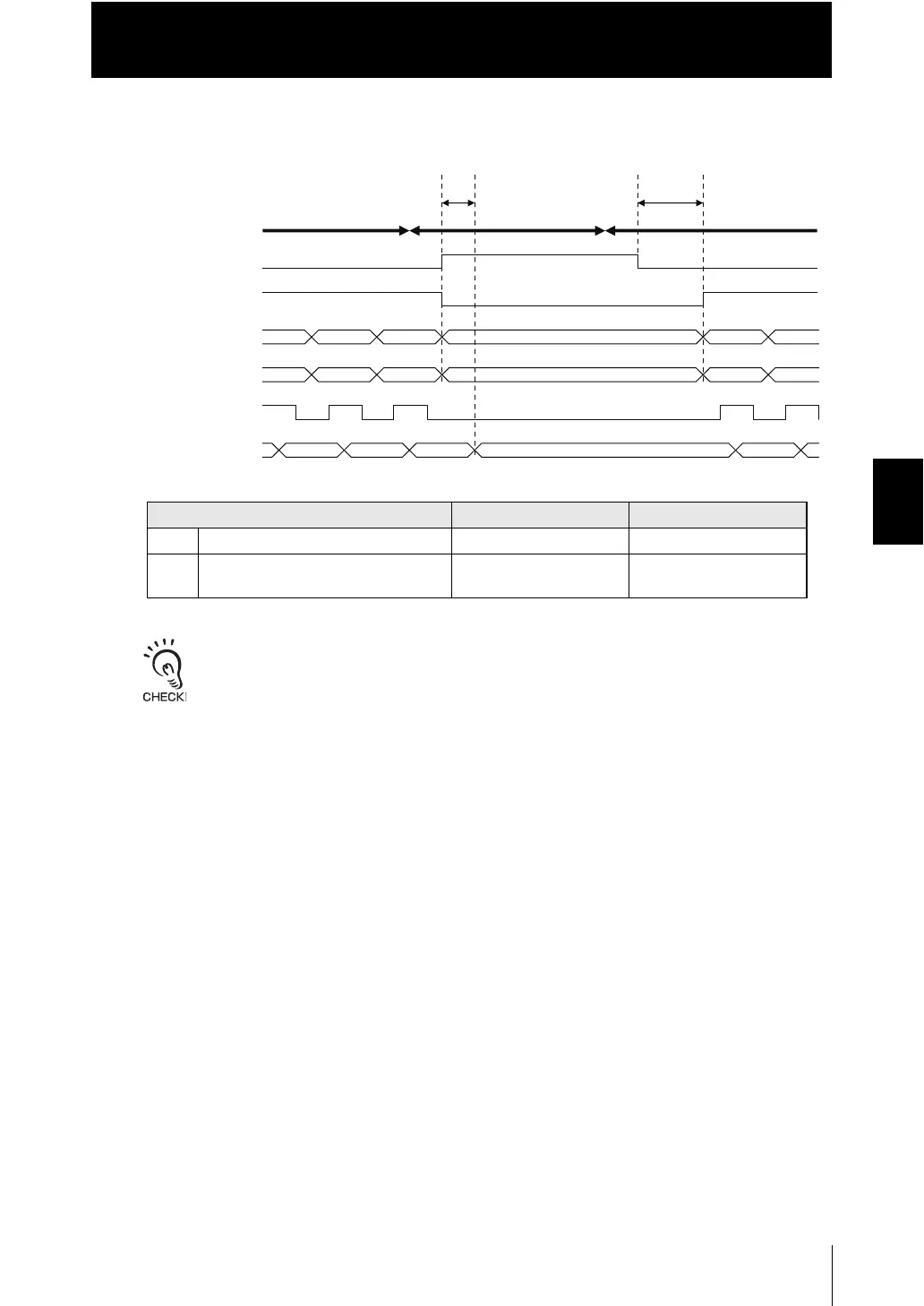

■ Operating mode switching
In FUN mode, there is no binary output. Immediately after the mode is switched to RUN mode, the
clamp value is output until the measured value is applied.
● Explanation of operations
(1) After the mode is switched from RUN to FUN mode, the BUSY output and
ENABLE output are turned OFF. The judgment outputs all go OFF and the binary
output is output clamped.
(2) The response time of analog output after the BUSY output is turned ON, the
analog output is output clamped.
(3) After the mode is switched from FUN mode to RUN mode, the BUSY output is
turned OFF.
(4) Measurement is restarted and the ENABLE signal is turned ON, then the
measurement results are output.
Item Minimum Maximum
T3 Response time of analog output - 0.1 ms
T9 Measurement start response time 3T0 Depends on the set
conditions
(1)
(3)
T3
RUN FUN RUN
(2) (4)
T9
ON
OFF
ON
OFF
ON
OFF
Judgment output
(HIGH/PASS/LOW)
Binary output
GATE output
Analog output
BUSY output
ENABLE output
MODE
All OFF
CLAMP
CLAMP
