Chapter 4 I/O SETTINGS
ZW
User’s Manual
Chapter 4
Timing Charts

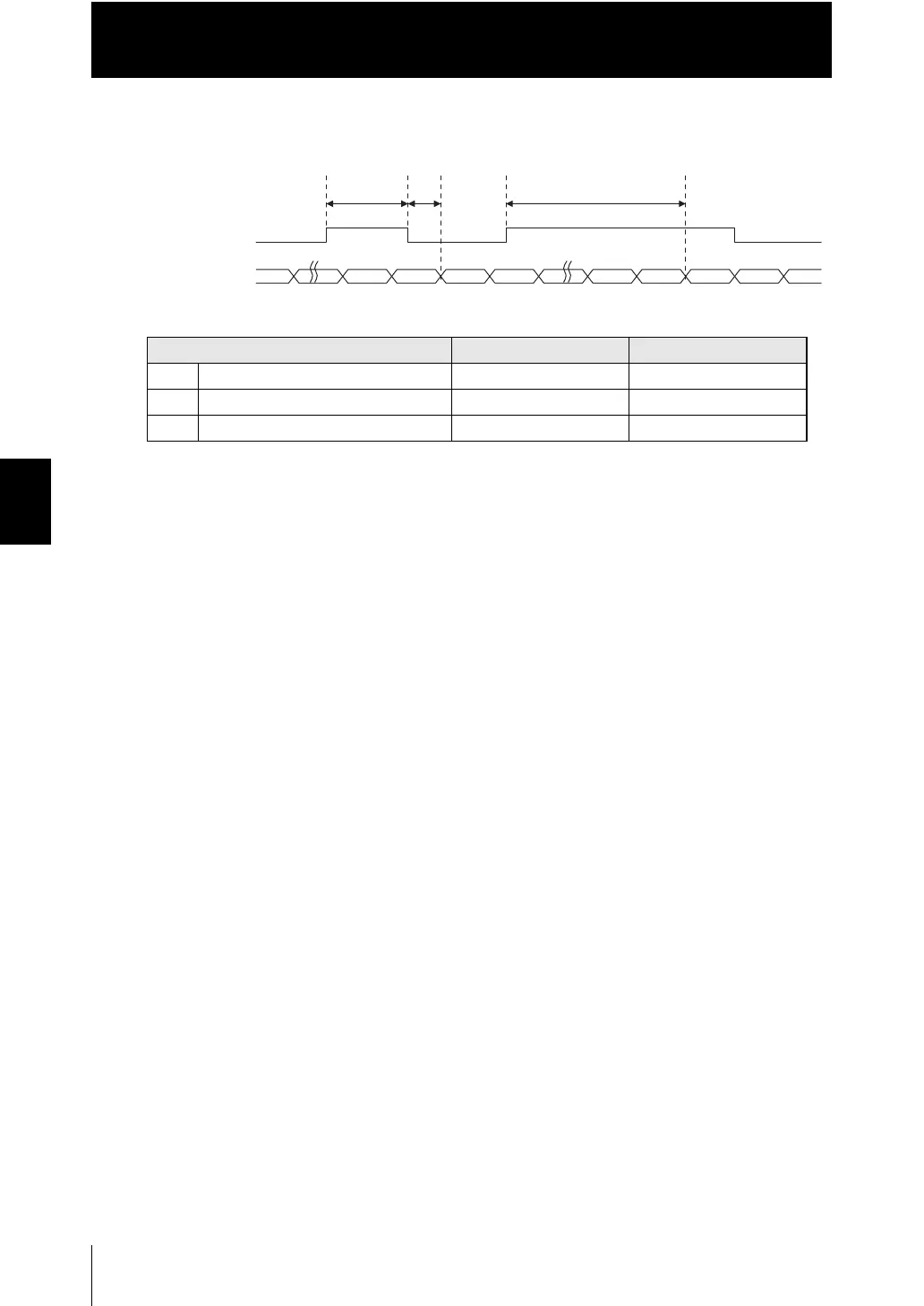

■ Zero reset
●
Explanation of operations
(1) The zero reset input is turned ON.
(2) After the zero reset input time, the zero reset input is turned OFF.
(3) After the zero reset input is turned OFF, the zero reset is executed and the
judgment results reflected in the measurement results are output.
(4) The zero reset input is turned ON.
(5) After at least the cancel time of zero reset input has passed, the zero reset is
cancelled.
Item Minimum Maximum
T7 Response time of input 2 msT0 3 msT02
T13 Zero reset input time 50 ms 0.8 s
T14 Cancel time of zero reset input 1 s -
(1) (2)
(4)
(3)
T14
T13 T7
(5)
ON
OFF
Judgment output
(HIGH/PASS/LOW)
Zero reset input
(ZERO)
