Chapter 4 I/O SETTINGS
Chapter 4
Timing Charts
4-41
ZW
User’s Manual

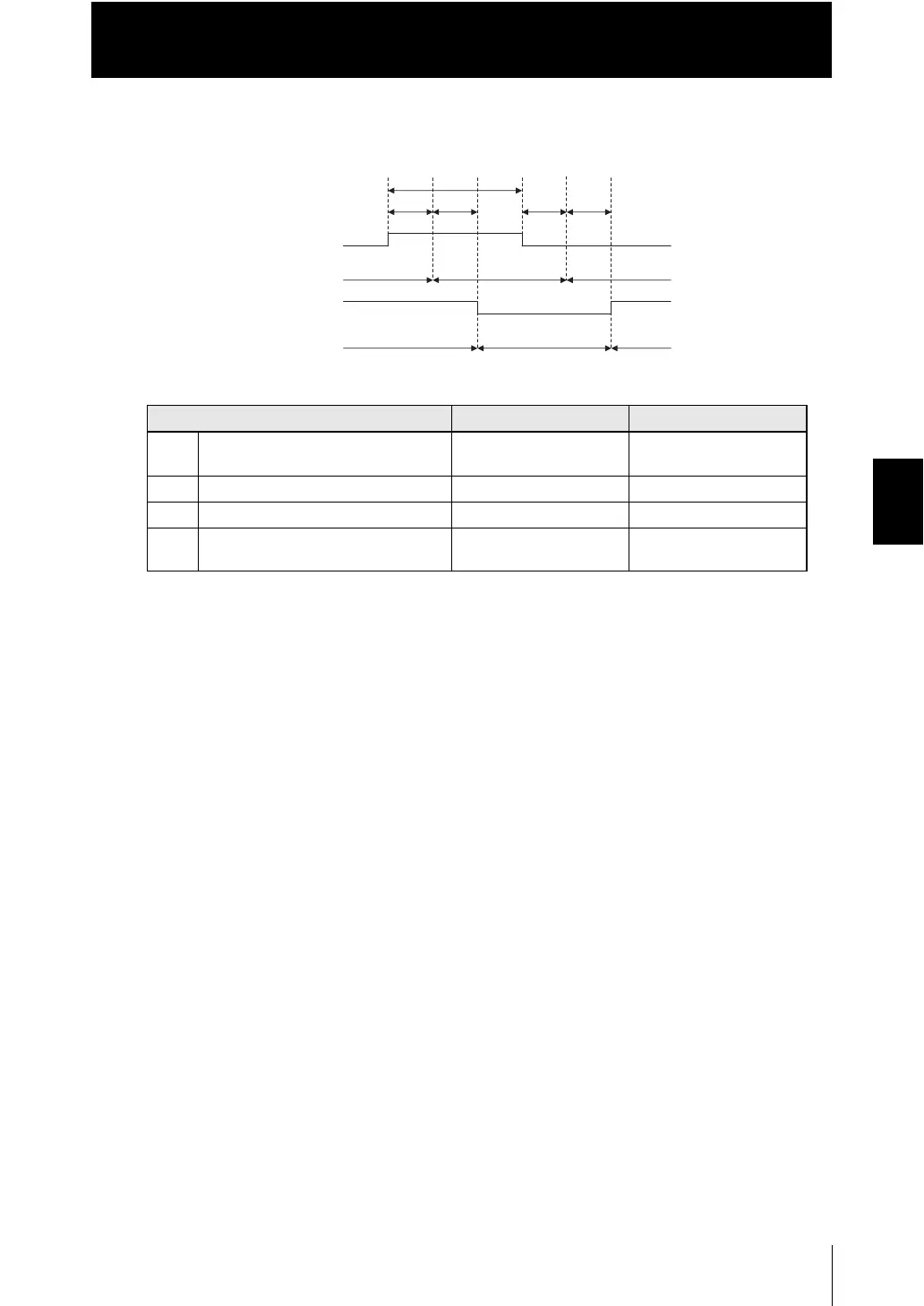

■ LED OFF
●
Explanation of operations
(1) The LED OFF signal is turned ON.
(2) After the LED OFF signal is turned ON, the LEDs are turned OFF.
(3) After the LEDs are turned OFF, the ENABLE signal is turned OFF.
(4) The LED OFF signal is turned OFF.
(5) After the LED OFF signal is turned OFF, the LEDs are turned ON.
(6) After the LEDs are lit up, measurement is restarted and the ENABLE signal is
turned ON.
Item Minimum Maximum
T9 Measurement start response time 3T0 Depends on the set
conditions
T10 Time of receiving LED OFF input 100 s-
T11 Response time of LED OFF - 100 s
T12 ENABLE response time after LEDs
are turned OFF
-2T0
(1) (2)
T11 T12
(3) (4)
T11
(5) (6)
T9
T10
ON
OFF
ON
OFF
LED OFF input
Measurement
ENABLE output
Clamp
Measurement
Measurement
Turn ON
Turn OFF
Turn ON
LED
To Next Page
