Chapter 1 MEASUREMENT SETUP
Chapter 1
About Installation and Connection
1-17
ZW
User’s Manual

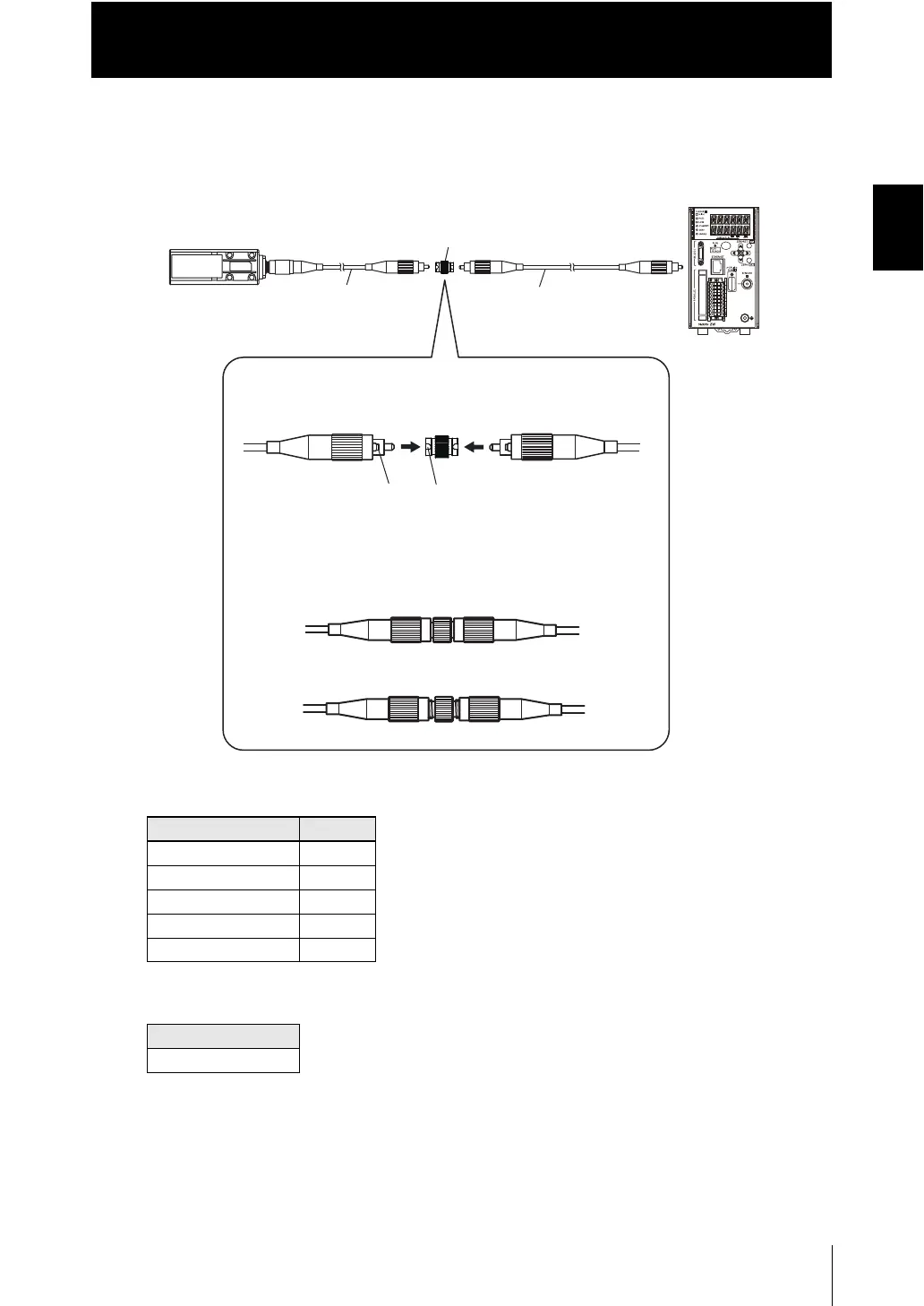

■ Extending fiber cable
To extend the fiber cable on the Sensor Head, use an extension fiber cable and
connecting adapter.
Extension fiber cable (option)
Connecting adapter (option)
Model Length
ZW-XF02R 2 m
ZW-XF05R 5 m
ZW-XF10R 10 m
ZW-XF20R 20 m
ZW-XF30R 30 m
Model
ZW-XFC
Extension fiber cable
㩷㩷ZW-XF_ _R䋺
㩷㩷䋨2 m/5 m/10 m/20 m/30 m䋩
Connecting adapter
䇭ZW-XFC
Mate the convex section on the fiber cable with the groove
on the connection adapter and turn the threaded section
clockwise while pushing in.
Sensor Head
fiber cable
In the "No good" status in figure below, optic signals cannot
be transmitted and correct measurement is not possible.
Always check that the system is in the "Good" status.
Convex
section
Groove
Good
No good
