Chapter 2 BASIC OPERATION
Chapter 2
Functions and Operations during Measurement
2-13
ZW
User’s Manual
■ Threshold values change
The threshold value for the task displayed on the main display in RUN mode can be
changed.
To change the target task, change the task displayed on the main display.
Display details change p.2-12
As an example, here is an explanation of the procedure for setting the HIGH threshold
value by entering "1.000" directly.

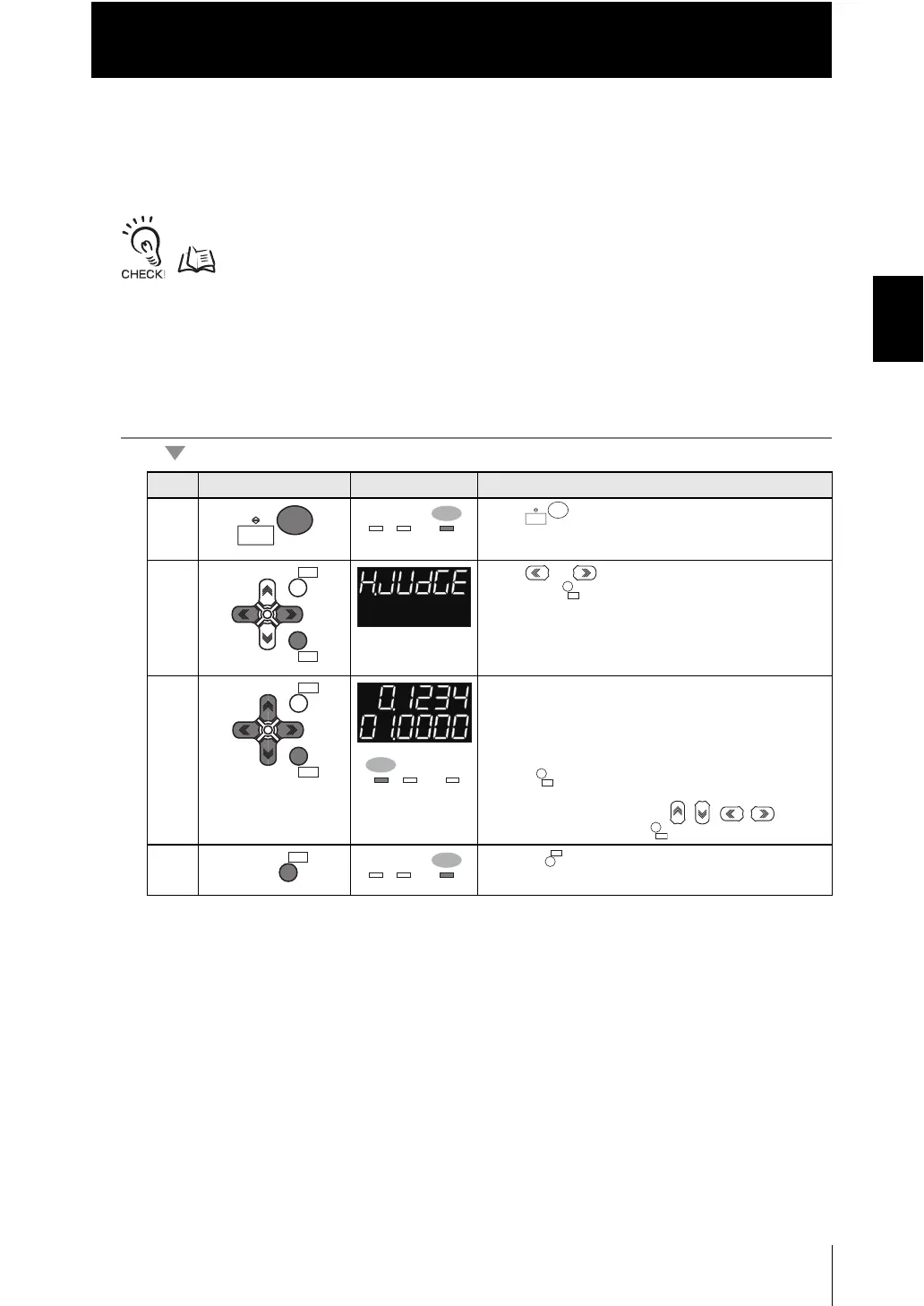

Operating procedure
Steps Key operation Display Description
1 Press key in the RUN mode to display the
setting menu.
2 Press or keys to select either of "H.JUDGE"
and press key.
3 Set "1.000" as the HIGH threshold value.
The current measured value is displayed on the main
display and the current set threshold value is
displayed on the sub-display. (At that time, the
THRESHOLD-H indicator lights up.)
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "1.000" and press key.
4
Press key in the RUN mode to exit the setting
menu.
RUN
RUN
FUN
FUN
TEACH
TEACH
L
H L RUNRUN
LIT
RUN
RUN
FUN
FUN
TEACH
TEACH
L
ZERORST/
ZERORST/
ESC
ESC
ZERO/
ZERO/
SET
SET
ZERO/ZERO/
SETSET
ZERORST/
ZERORST/
ESC
ESC
ZERO/
ZERO/
SET
SET
H L
RUN
RUN
LIT
ZERO/
ZERO/
SET
SET
ZERO/
ZERO/
SET
SET
ZERORST/
ZERORST/
ESC
ESC
H L RUNRUN
LIT
ZERORST/
ZERORST/
ESC
ESC
