Omron ZW Series User Manual

2-12
Chapter 2 BASIC OPERATION
ZW
User’s Manual
Chapter 2
Functions and Operations during Measurement

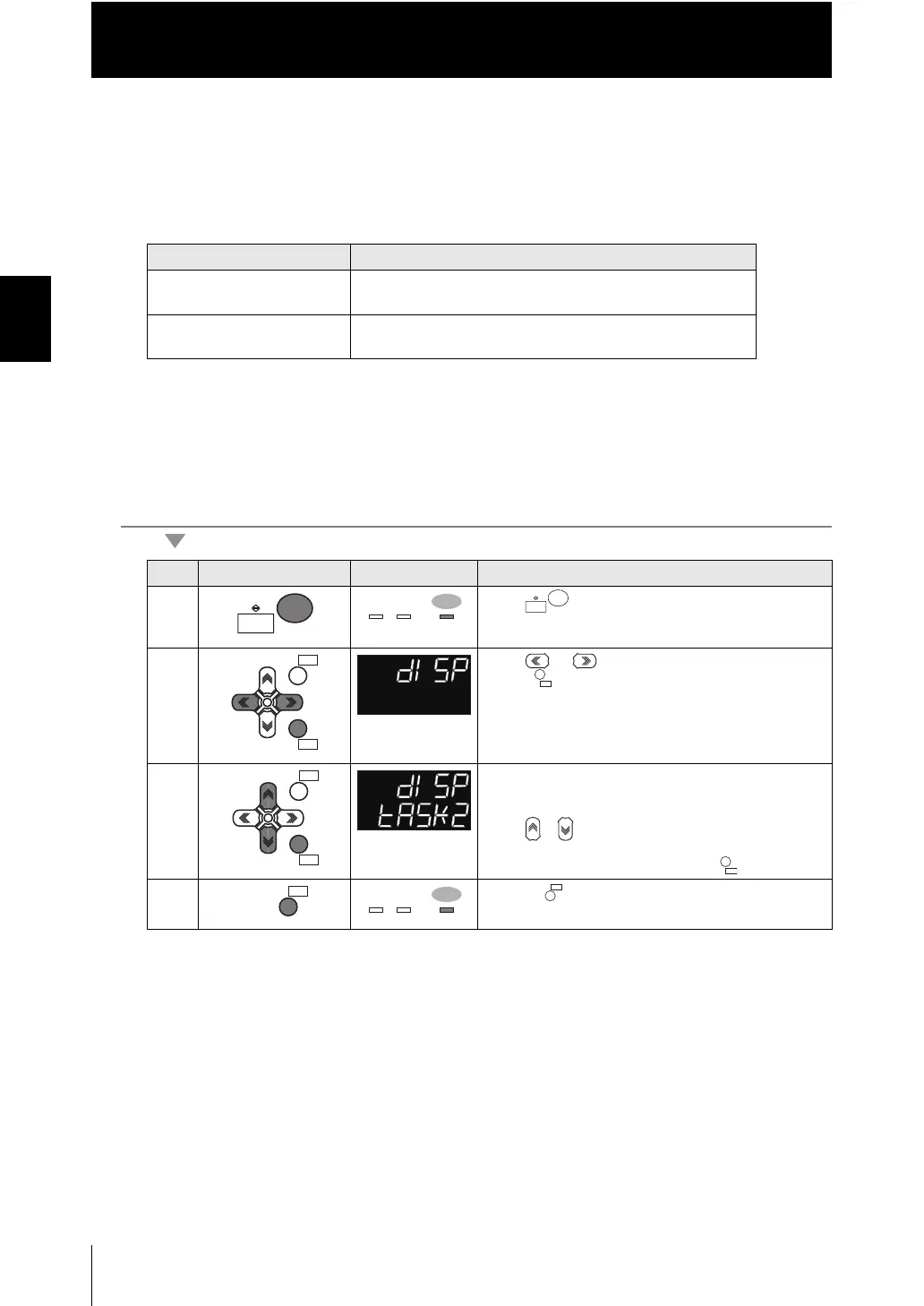

■ Display details change
The measurement result displayed on the main display in RUN mode can be selected
from TASK 1 to 4.
The number of digits displayed can also be changed.
As an example, here is an explanation of the procedure for setting TASK2 as the task
to be displayed target.
Operating procedure
Settings [Display] Description [Display]
Task for displayed target
[DISP]
TASK1/TASK2/TASK3/TASK4
Decimal point digit
[DEC.NUM]
0 [0DIG]/1 [1DIG]/2 [2DIG]/3 [3DIG]/4 [4DIG]/5 [5DIG]
Steps Key operation Display Description
1 Press key in the RUN mode to display the
setting menu.
2 Press or keys to select either of "DISP" and
press key.
3 Select the task to be displayed target.
The current setting value is displayed on the sub-
display.
Press / key to enter the editing mode, and the
sub-display blinks.
Select either of "TASK2" and press key.
4
Press key in the RUN mode to exit the setting
menu.
RUN
RUN
FUN
FUN
TEACH
TEACH
L
H L RUNRUN
LIT
RUN
RUN
FUN
FUN
TEACH
TEACH
L
ZERORST/
ZERORST/
ESC
ESC
ZERO/
ZERO/
SET
SET
ZERO/ZERO/
SETSET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/ZERO/
SETSET
ZERORST/
ZERORST/
ESC
ESC
H L RUNRUN
LIT
ZERORST/
ZERORST/
ESC
ESC
