Chapter 3 SETTINGS FOR FUNCTIONS
Chapter 3
Setting the Output Conditions
3-15
ZW
User’s Manual

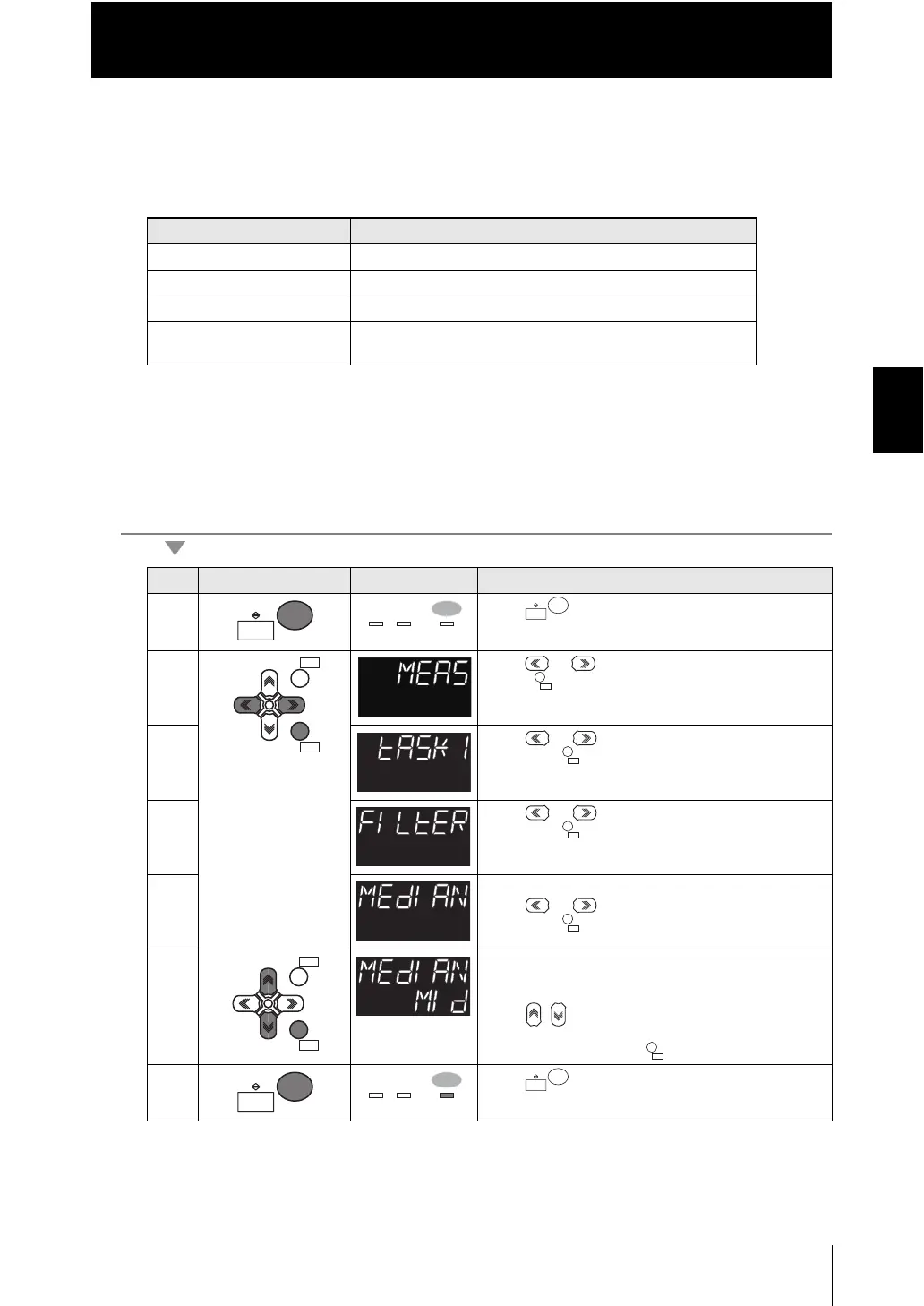

■ Setting the median filter
The intermediate value of multiple sets of data can be output as the measurement
result.
As an example, here is an explanation of the procedure for selecting the "Mid" median
filter setting.
Operating procedure
Setting [Display] Description
Low [LOW] Outputs the intermediate value of the last 3 measurements.
Mid [MID] Outputs the intermediate value of the last 9 measurements.
High [HIGH] Outputs the intermediate value of the last 15 measurements.
Off [OFF]
(Default value)
Median filter is not used.
Steps Key operation Display Description
1 Press key for two seconds to enter the FUN
mode.
2 Press or keys to select either of "MEAS" and
press key.
3 Press or keys to select either of "TASK1"
and press key.
4 Press or keys to select either of "FILTER"
and press key.
5 Select "Median filter" as the filter type.
Press or keys to select either of "MEDIAN"
and press key.
6 Select "Mid" as the median filter type.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "MID" and press key.
7 Press key for two seconds to enter the RUN
mode.
