3-16
Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions
Setting the average value filter
The average of the measured values obtained based on the preset number of samples
can be output. Select this setting when you want to ignore sudden changes in
measured values.

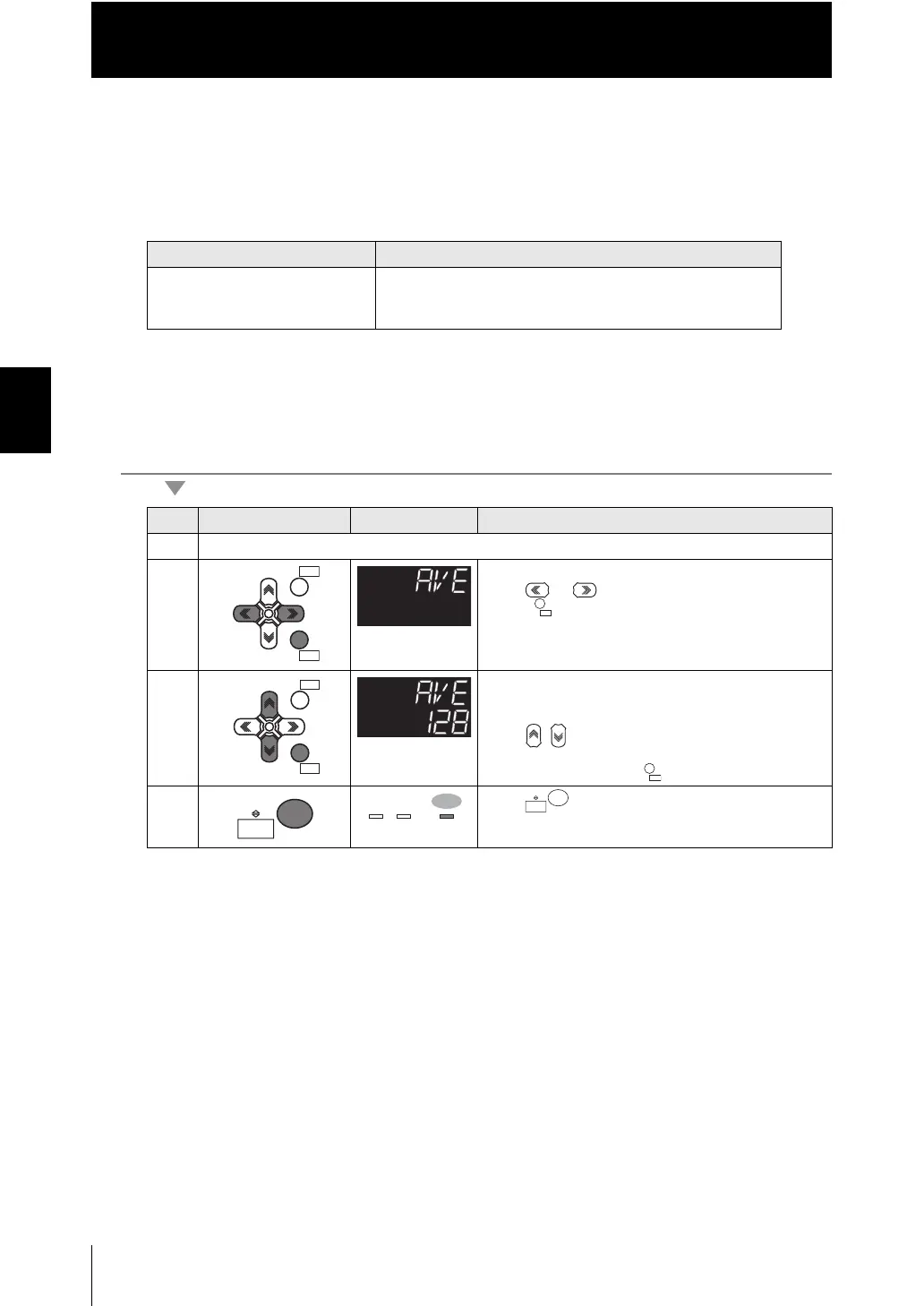

As an example, here is an explanation of the procedure for selecting the "128" average
count setting.
Operating procedure
Setting Description
1/2/4/8/16/32/64/128/256/512/
1024/2048/4096
(Default value: 256)
Sets the average count.
Steps
Key operation Display Description
1 - 4 For moving to FILTER, see steps 1 to 4 in p.3-15
5 Select "Average filter" as the filter type.
Press or keys to select either of "AVE" and
press key.
6 Select "128" as the average count.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "128" and press key.
7 Press key for two seconds to enter the RUN
mode.
ZERORST/
ZERORST/
ESC
ESC
ZERO/
ZERO/
SET
SET
ZERO/
ZERO/
SET
SET
ZERORST/
ZERORST/
ESC
ESC
ZERO/
ZERO/
SET
SET
ZERO/ZERO/
SETSET
RUNRUN
FUNFUN
TEACHTEACH
L
H L RUNRUN
LIT
RUN
RUN
FUN
FUN
TEACH
TEACH
L
