Remove the Motherboard Assembly
a.

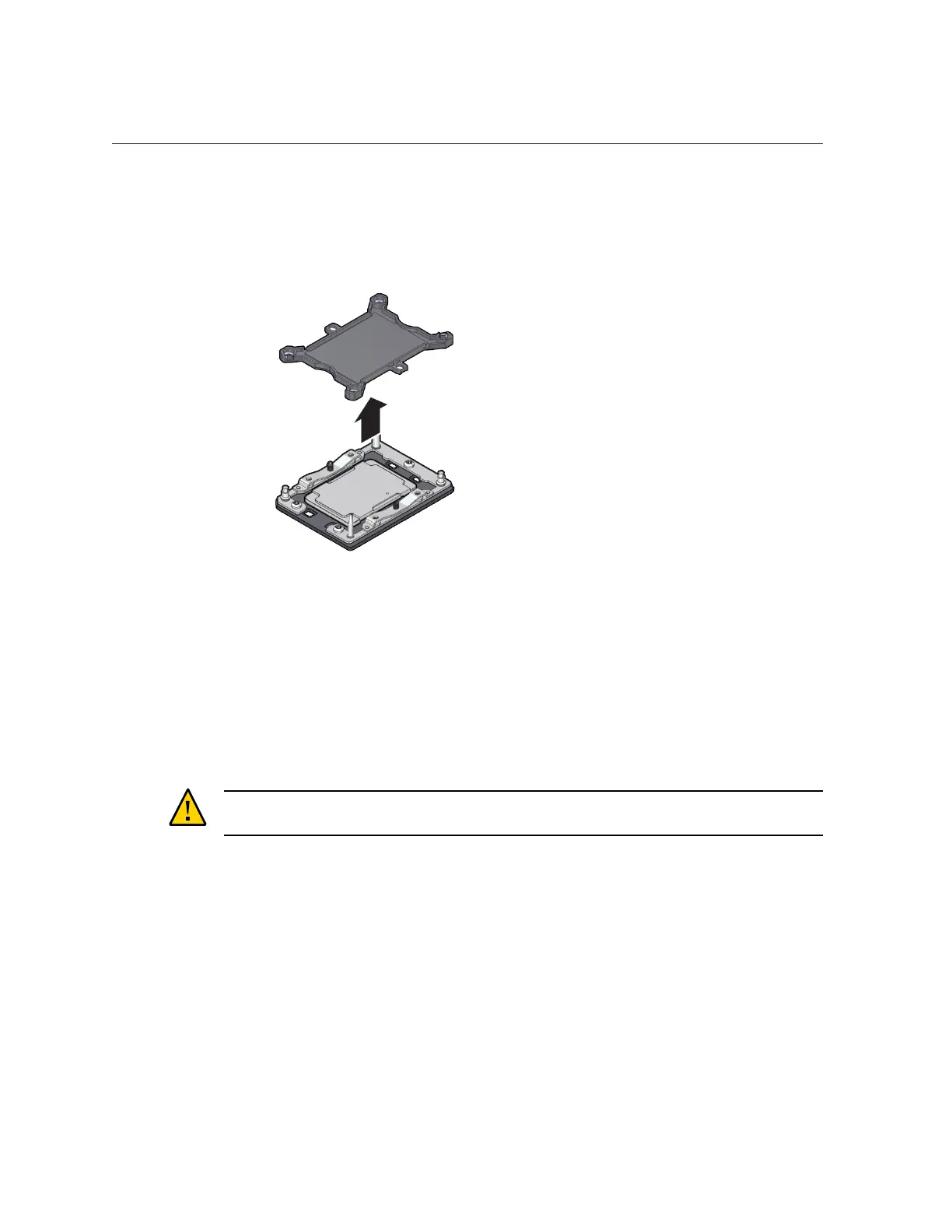

Grasp the processor socket cover finger grips (labeled REMOVE) and lift the
socket cover up and off the processor socket.
b.
Install a processor into the socket from which you removed the processor
socket cover.
See “Install a Processor” on page 152.
c.
Repeat Step 9a and Step 9b to remove the second processor socket cover
from the replacement motherboard and install the second processor.
10.
Install the processor socket covers on the faulty motherboard.
Caution - The processor socket covers must be installed on the faulty motherboard; otherwise,
damage might result to the processor sockets during handling and shipping.
a.
Align the processor socket cover over the processor socket alignment
posts. Install the processor socket cover by firmly pressing down on all four
corners (labeled INSTALL) on the socket cover.
Servicing the Motherboard Assembly (FRU) 209
