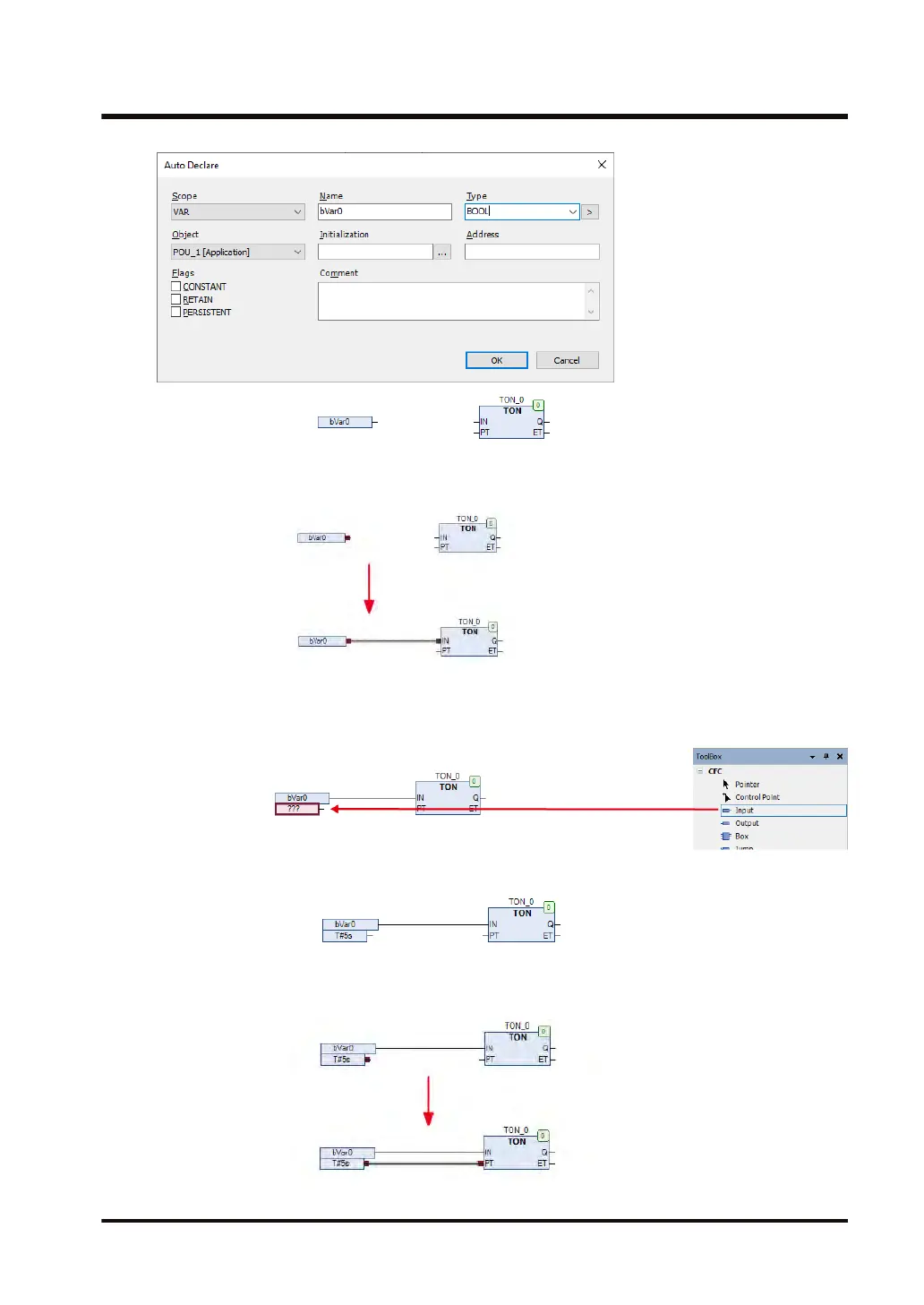

7. Select the pin on input element "variable bV
ar0" and drag it to "IN" on TON.
Input element "variable bVar0" and "IN" on TON will be connected with a line.
8. In T
oolbox, select CFC>Input and drag the input element and drop it in the implementation
section.
The input element will be placed in the implementation section.
9. Enter "T#5s" in "???
" and press the "Enter" key.
10. Select the pin on input element
"T#5s" and connect it to "PT" on TON.
Input element "T#5S" and "PT" on TON will be connected with a line.
7.6 Programming in Continuous Function Chart (CFC)
WUME-GM1RTXOP-01 7-41
