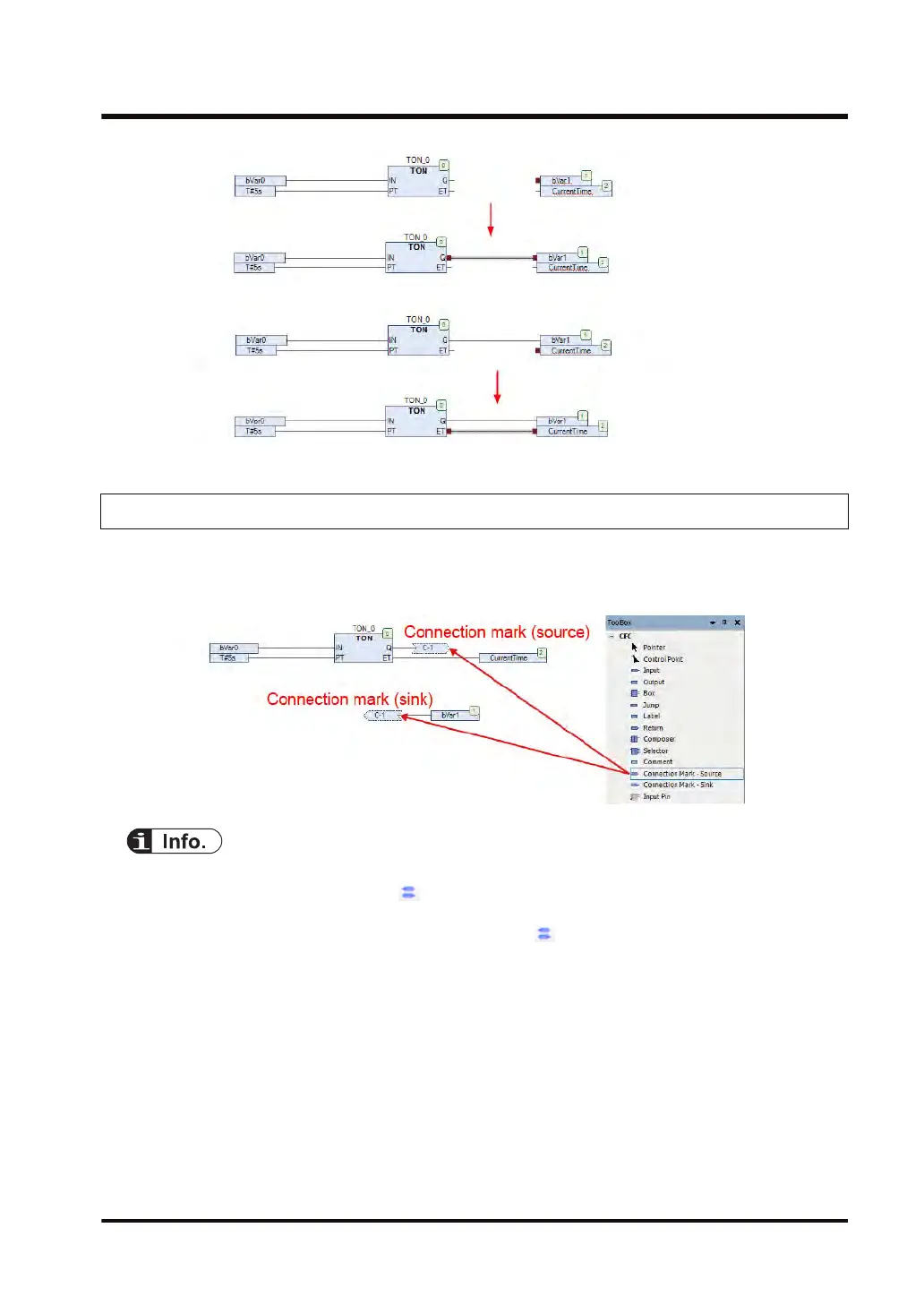

7.6.2 Connection Mark
Connection marks can be used to separate connection lines.
In Toolbox, select CFC>Connection Mark - Source and CFC>Connection Mark - Sink,
arrange them in the implementation section, and enter the same name for them.
● You can also separate a connection line as a connection mark by selecting CFC>Connection
Mark from T
oolbox or clicking the
icon on the toolbar, with the connection line selected .
Conversely
, you can restore the connection mark to a connection line by selecting
CFC>Connection Mark from Toolbox or clicking the
icon on the toolbar, with the
connection mark selected.
7.6 Programming in Continuous Function Chart (CFC)
WUME-GM1RTXOP-01 7-43
