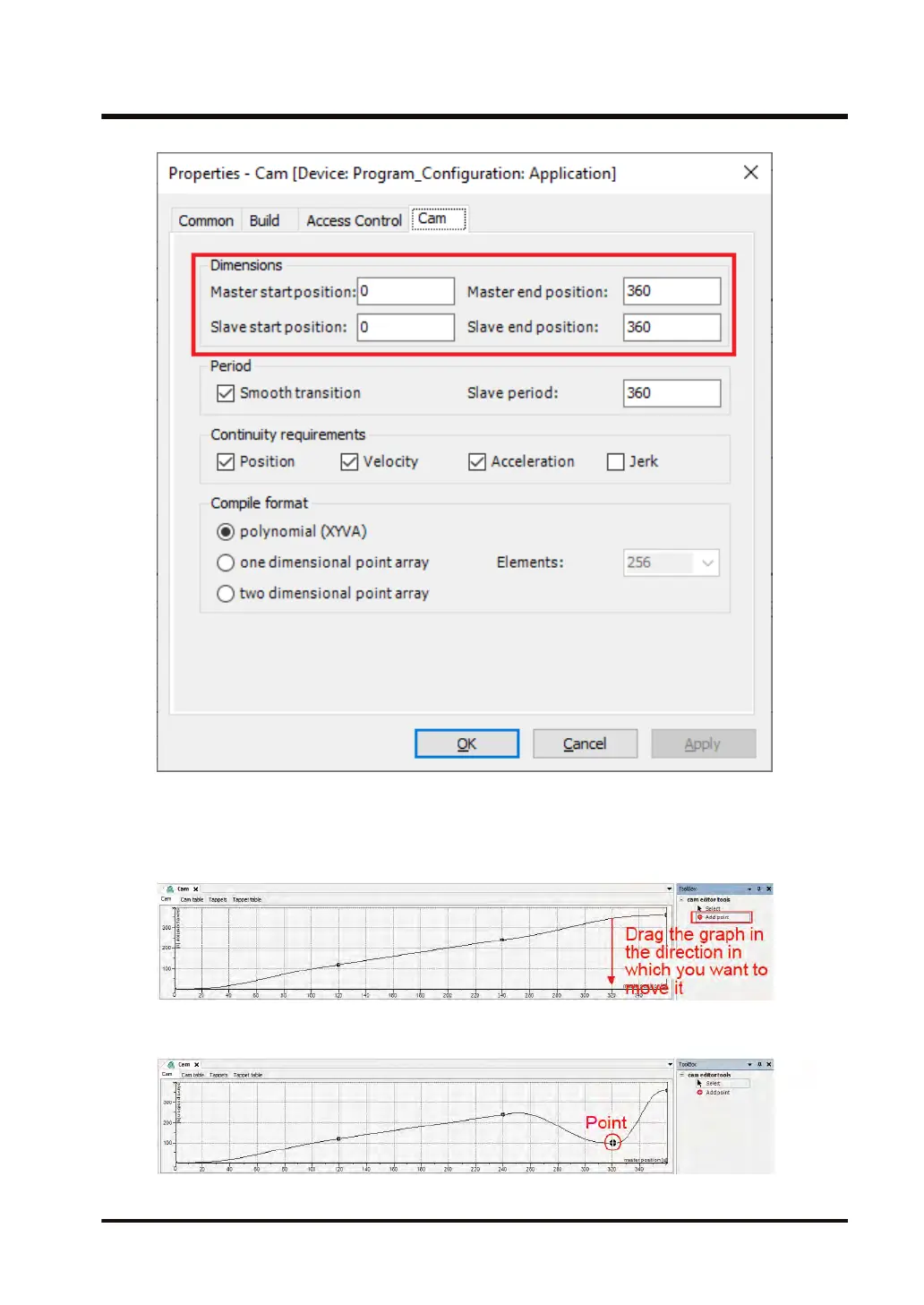

In the "Compile format" section, select "polynomial (XYVA)". Do not select another option.
3. Select "Add pointer
" in Toolbox, click the graph and then drag it in the direction in which you
want to move it.
A cam table object will be added.
A point will be added to the position at which you click the mouse and the graph will be
moved in the direction in which you drag the point.
