● A total of 16 comparison match flags can be set separately for each comparison data item.
●
Multiple comparison data items can be set for the same band.
● For details on how to set up parameters, refer to "12.6.2 Setting Parameters with GM
Programmer".
■

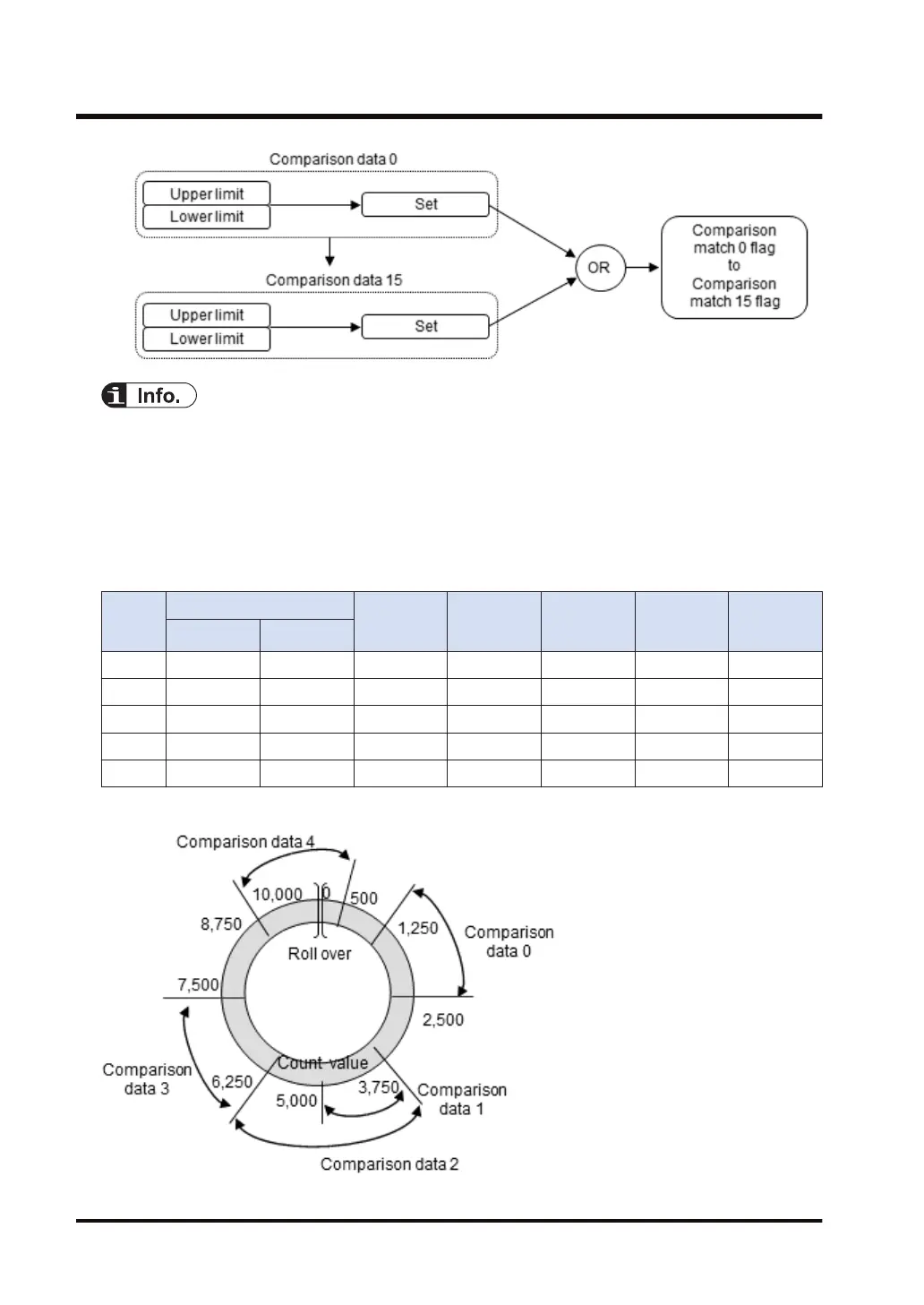

Setting example for band comparison
Output setting example
Compa
rison
data
Band comparison value
Output
setting
Compariso
n match 0
flag
Compariso
n match 1
flag
Compariso
n match 2
flag
Compariso
n match 3
flag
Lower limit Upper limit
0 +1,250 2,500 Set ON OFF OFF OFF
1 +3,750 +5,000 Set OFF ON OFF ON
2 +3,750 +7,500 Set OFF OFF OFF ON
3 +6,250 +7,500 Set ON ON ON ON
4 +8,750 +500 Set OFF OFF ON OFF
Behavior of comparison match flag during band comparison
