VTrak M610i, M310i, M210i Product Manual
206

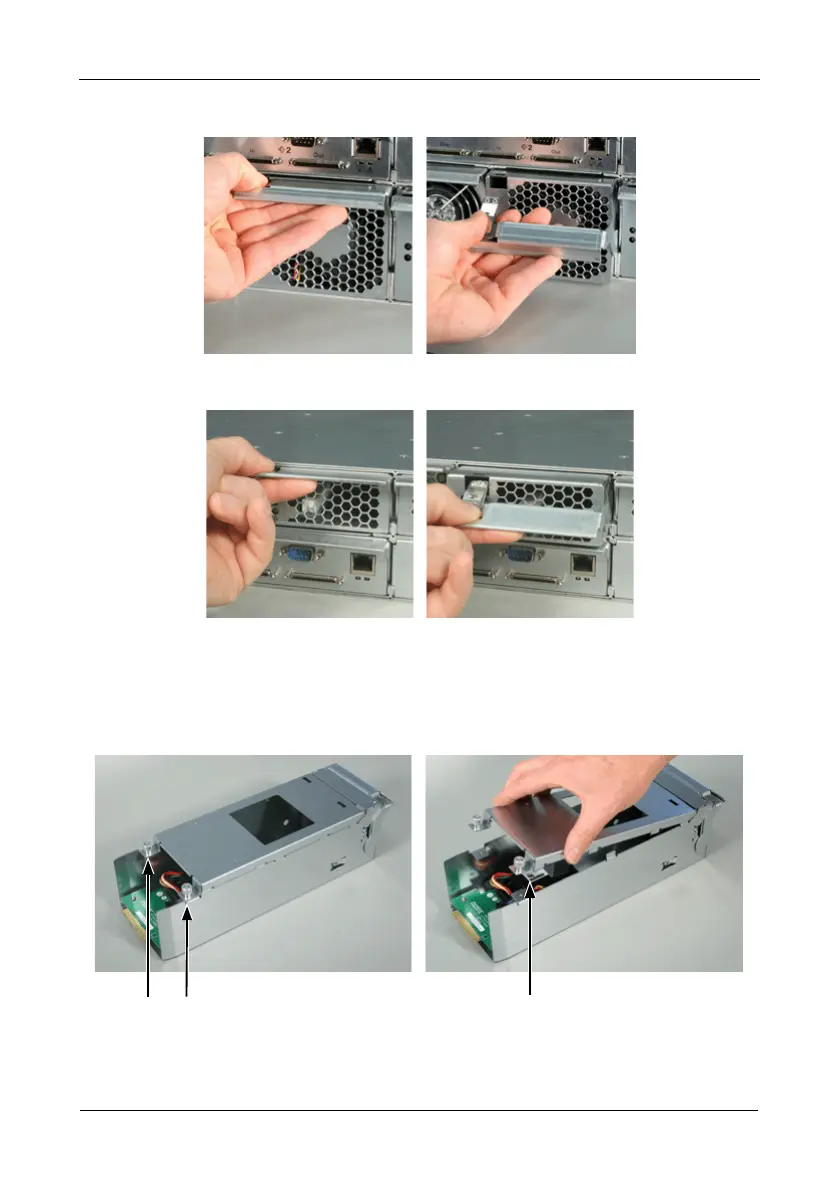

Figure 4. Removing a cooling unit from the M610i
Figure 5. Removing a cooling unit from the M310i/M210i
4. Loosen the thumbscrew. A retainer keeps the thumbscrew in place.
5. Grasp the cover near the thumbscrews and lift it off. Remove the cover to
access the fan or blower. See Figures 6 and 7.
Figure 6. Loosen the thumbscrews and remove the cover (M610i)
Loosen the thumbscrews
Lift the cover
