Chapter 8: Troubleshooting
275
Enclosure Problems
WebPAM PROe displays yellow !s red Xs in Tree View to identify
components that need attention.
When a yellow ! appears over a Subsystem in Tree View, click the Enclosure
icon. The Enclosure screen will display (below).

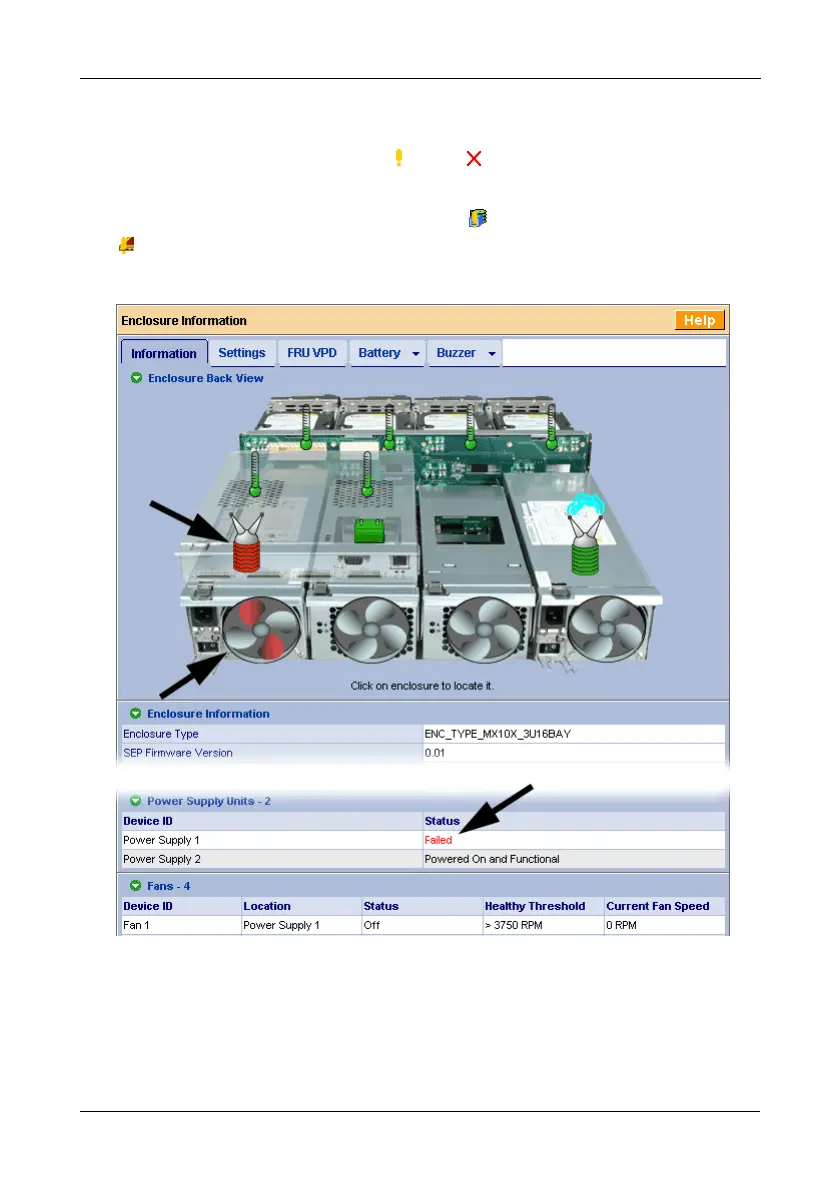

Figure 11. Enclosure information in Management View
In this example, a power supply has failed. The Enclosure Diagram displays
color and motion changes to identify the failed power supply. In this case, you
must replace the power supply.
Note that the image above was shortened to fit on the page.
