Making Serial Cable Connections
The RS-232 Serial connection enables the Command Line Interface (CLI) and
Command Line Utility (CLU) on your PC to monitor and control VTrak.

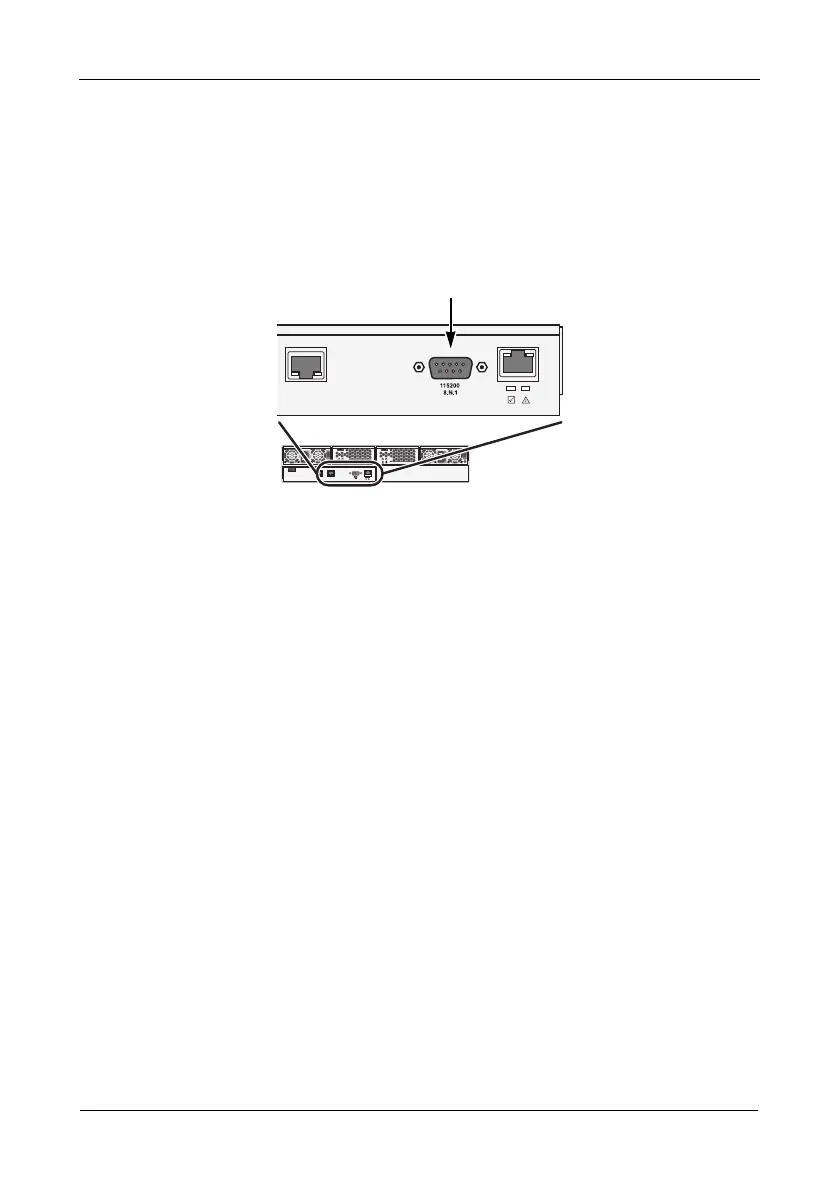

Figure 12.Serial connector for VTrak M310i. The M610i and M210i are
similar
To set up a serial cable connection:
1. Attach a null-modem cable to the DB-9 connector on the VTrak.
2. Attach the other end of the null-modem cable to a serial port on the Host PC
or Server.
You will establish a serial connection on the Host PC or Server (see page 23). At
this time, continue with “Connecting the Power” on page 21.
Mgmt
IOIOI
iSCSI 1iSCSI 2
Mgmt
IOIOI
iSCSI 1
O
I
O
I
DB-9 Serial
Connector
