Chapter 2: VTrak Installation
21
Connecting the Power
Plug the power cords and switch on both power supplies on. When the power is
switched on, the LEDs on the front of the VTrak will light up.
When boot-up is finished and the VTrak is functioning normally:
• Controller Heartbeat LED blinks green seven times in three seconds, goes
dark for six seconds, then repeats the blink pattern.
• Power, FRU, and Logical Drive Status LEDs display green continuously.
• RAID Controller LED flashes green if there is activity on a iSCSI port.

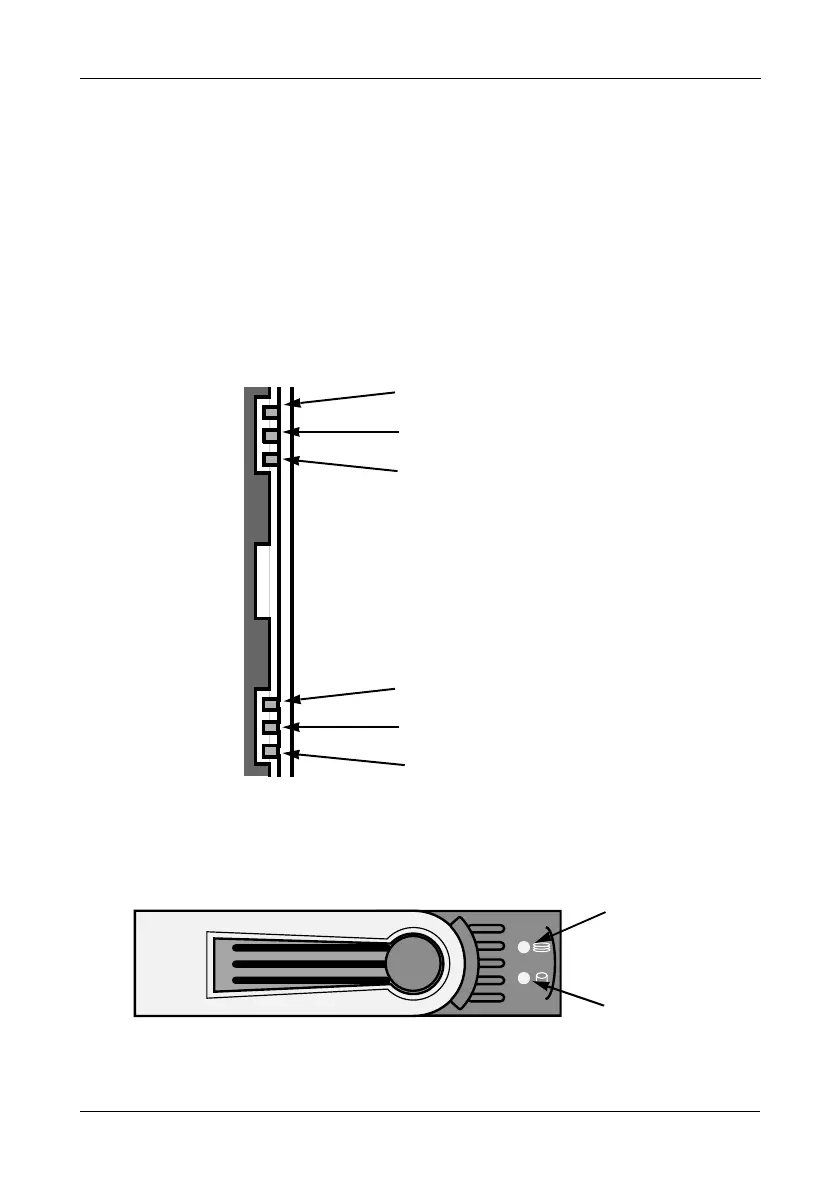

Figure 13.VTrak front panel LED display. The M610i is shown
There are two LEDs on each Drive Carrier. They report the presence of power
and a disk drive, and the current condition of the drive.
Figure 14.VTrak disk carrier LEDs
After a few moments the Power/Activity should display Green.
Power
Reserved
FRU Status
Logical Drive Status
RAID Controller Activity
Controller Heartbeat
Disk Status
Power/Activity
