Back of Enclosure
When the FRU Status LED on VTrak’s front panel shows Amber or Red, check
the LEDs on the back of VTrak. These LEDs give the status of the field
replaceable units.

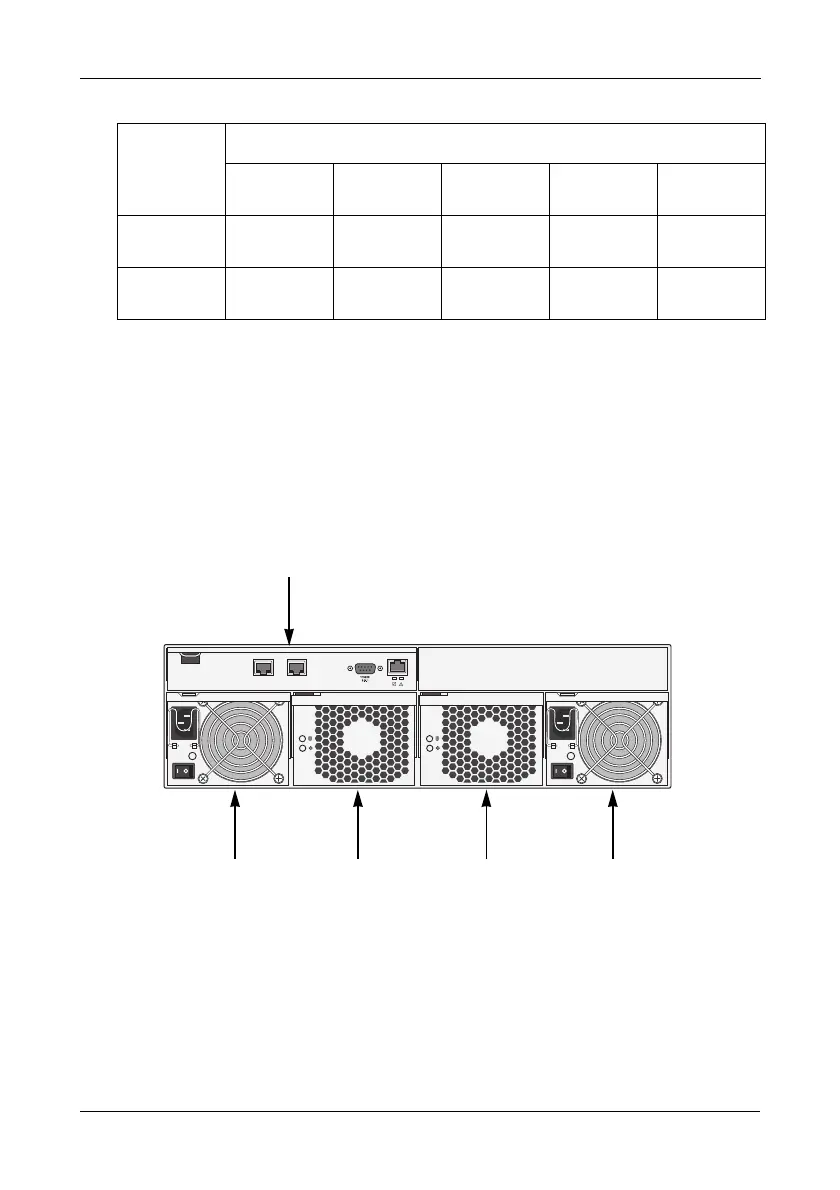

Figure 1. VTrak M610i rear view
LEDs
State
Dark
Steady
Green
Flashing
Green
Amber Red
Power/
Activity
No Drive
Drive
Present
Activity
Status
No Power/
No Drive
Drive OK
Drive
Rebuilding
Drive
Error
Mgmt
IOIOI
iSCSI 2 iSCSI 1
RAID Controller
Power Supply 1 Power Supply 2Cooling Unit 1 Cooling Unit 2
