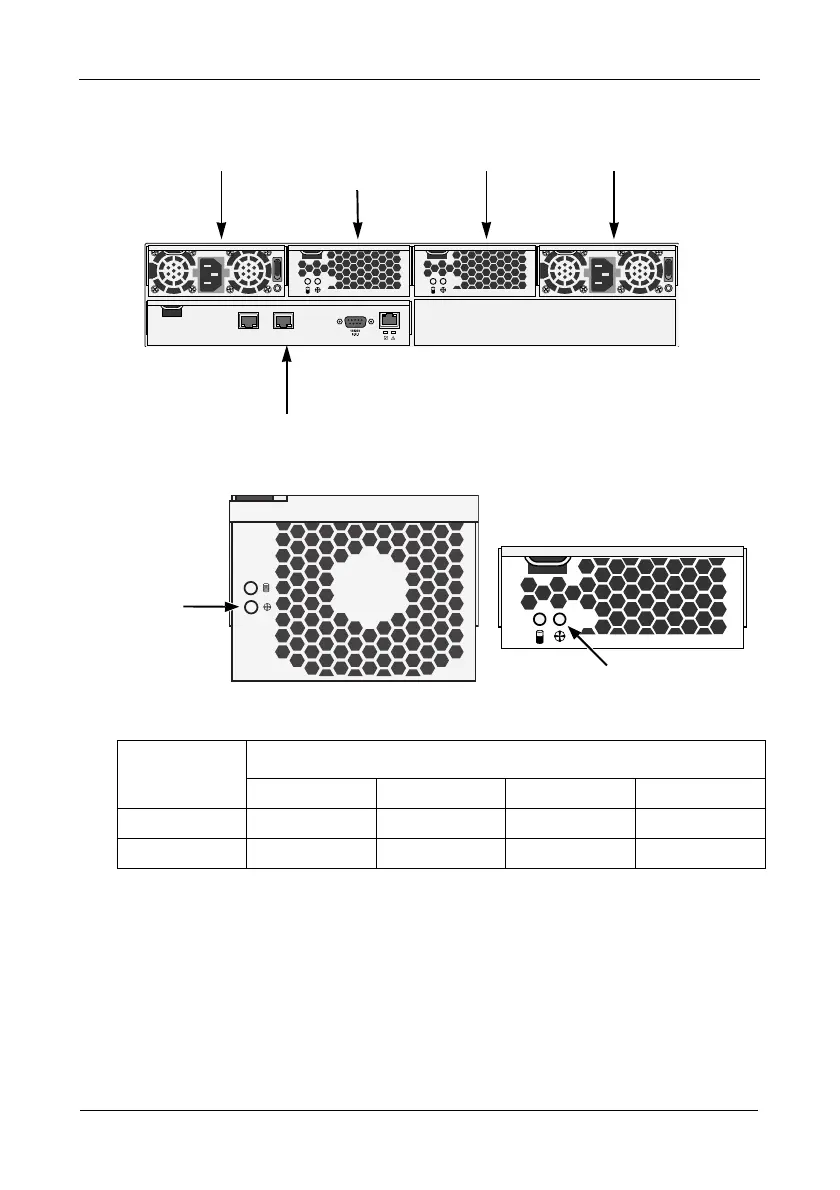

Figure 2. VTrak M310i and M210i rear view
Figure 4. Fan LED (left: M610i, right: M310i/M210i)
Under normal conditions, the power supply and fan LEDs should display green.
To check a component’s installation, follow the same procedure as replacing the
component, except that you reinstall the original component rather than a new
one. In most cases, this action fixes a bad connection and allows VTrak to detect
the component. If this action does not correct the problem, replace the unit. See
page 199 for instructions.
The Controller Location LEDs, on the back of the VTrak subsystem, will flash for
one minute.
LEDs
State
Dark Green Amber Red
Power supply Not detected OK Fan failed Failed
Fan Not detected OK Wrong speed Failed
Mgmt
IOIOI
iSCSI 2
iSCSI 1
O
I
O
I
RAID Controller
Power Supply 1 Power Supply 2Cooling Unit 1
with Battery
Cooling Unit 2
Fan LED
Fan LED
