VTrak M610i, M310i, M210i Product Manual
18
Making Management and Data Connections
Configuring an IP Storage Area Network
• A Gigabit Ethernet network interface card (GbE NIC) with iSCSI support (in
hardware or software)
• A GbE Switch with iSCSI support
• A network switch
• A network interface card (NIC) in the PC
Data Path
To establish an isolated data path:
1. Connect the 1 GbE (iSCSI) NIC to your GbE switch.
2. Connect the VTrak Data Ports to your GbE switch.
Management Path
To establish the management path:
Connect the PC’s standard network card and VTrak Management Port to your
network switch.

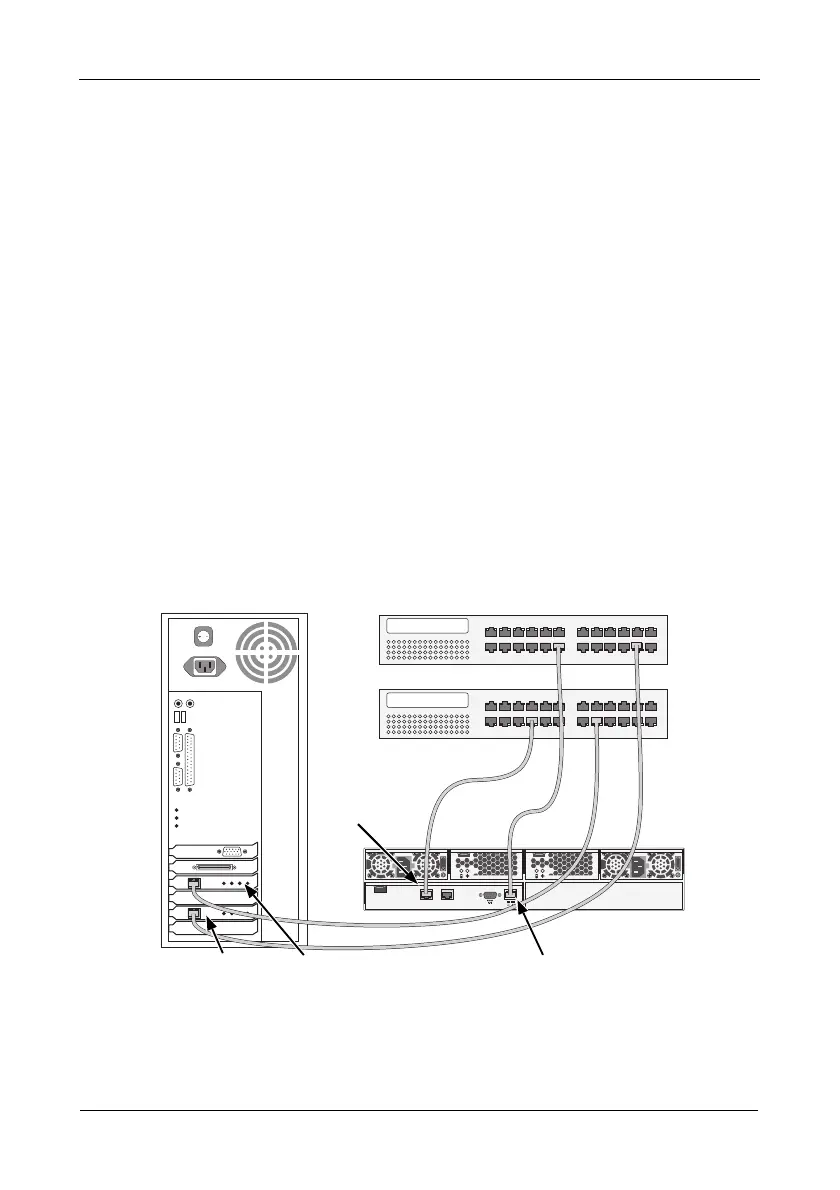

Figure 10.VTrak IP SAN connections
As an alternative, you can use the same GbE (iSCSI) NIC for your PC for
management and data connections. However, combining management and data
paths this way will reduce performance.
Mgmt
IOIOI
iSCSI 1iSCSI 2
O
I
O
I
PC
VTrak
Network Switch
iSCSI Port
Management PortGbE NICNIC
GbE Switch
