Promise Technology VTrak M610i User Manual

Chapter 2: VTrak Installation
11
4. Square the rail assemblies in the rack.
5. Tighten the adjustment screws and the attaching screws.
6. Place the VTrak subsystem onto the rails.
7. Secure the VTrak subsystem to the rack through each handle, using the
attaching screws from your rack system.

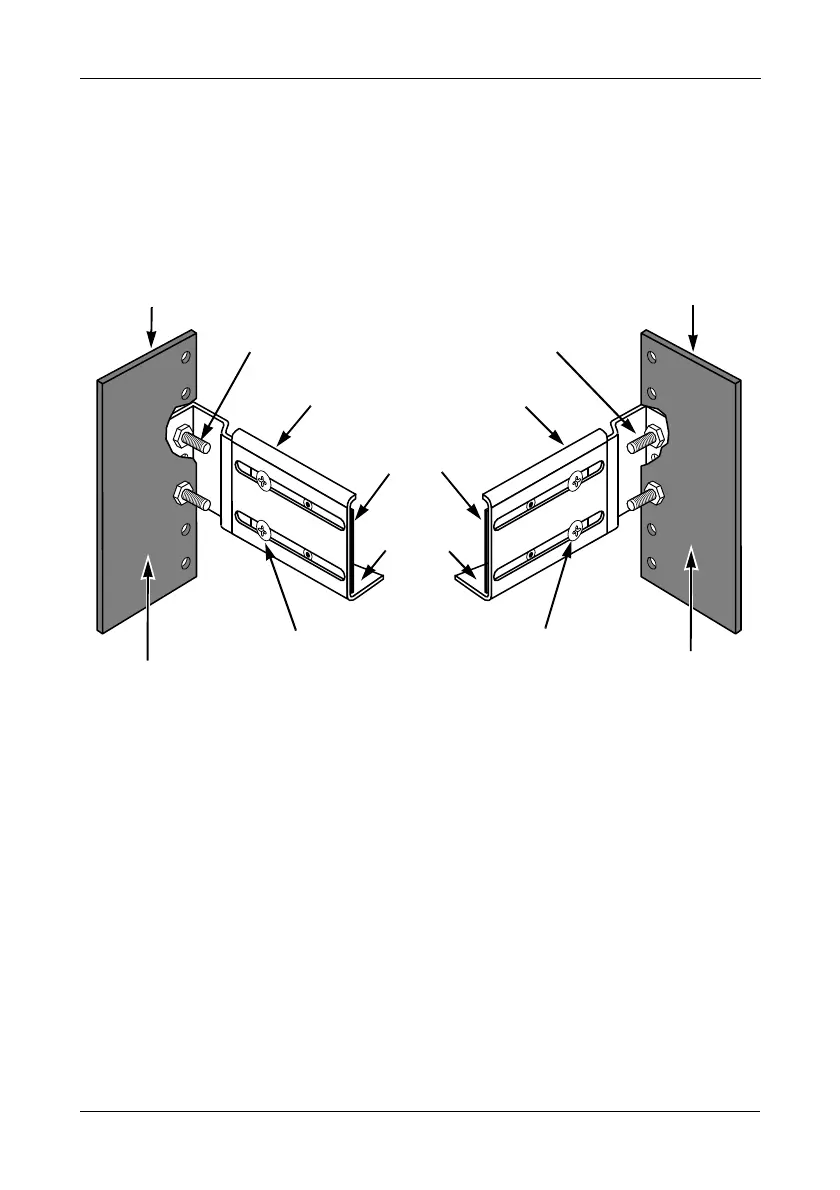

Figure 2. Rack mount assembly diagram
Inside of post
Rack front post
Rail attaching screw
(not included)
Rail adjustment screw
Flange
Rail attaching screw
(not included)
Inside of post
Rack back post
Front rail
Rail adjustment screw
Rear rail
Support
