142

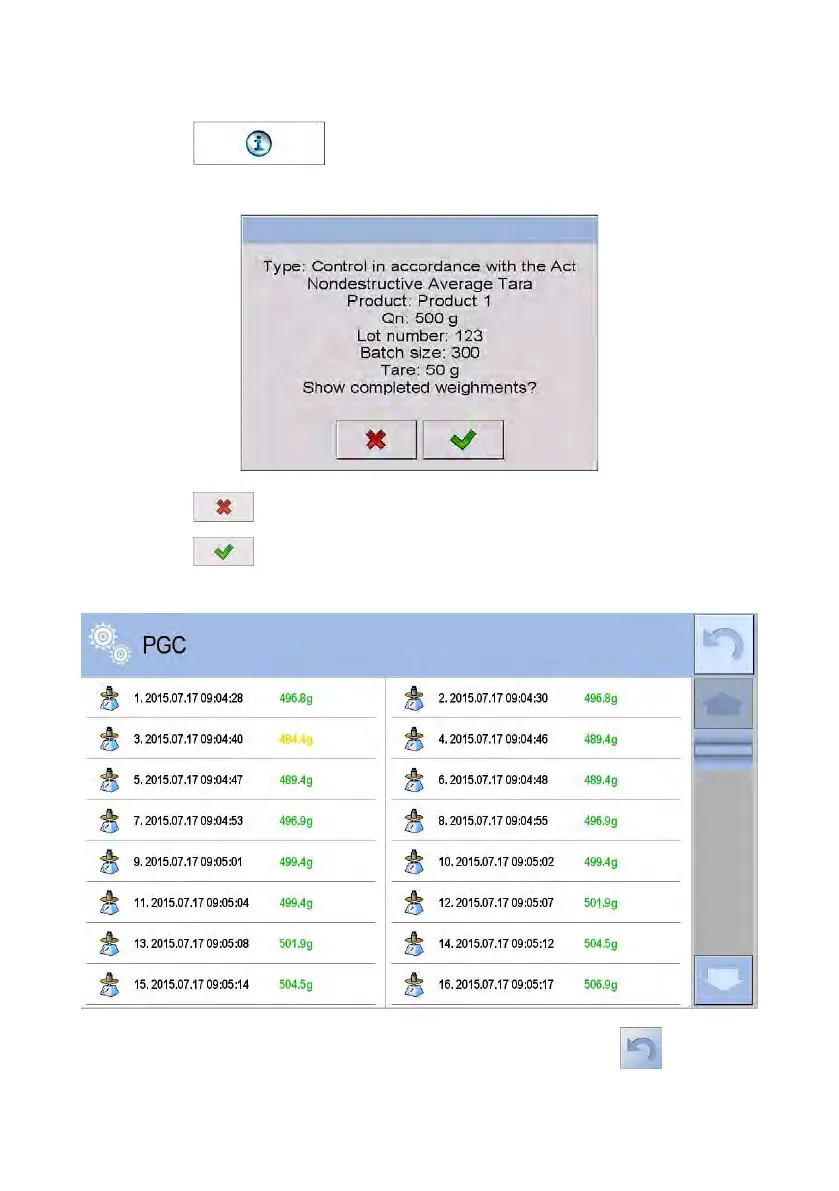

• Data on control process in progress

Pressing key displays data on a control process in

progress:

Pressing

key causes returning to the control process in progress.

Pressing key causes moving to displaying a list of completed

weighments:

In order to return to the control process in progress press key.
