Selection between these two modes is made in SYSTEM > MONITOR > PREVIEW. The default setting is
VIDEO (720p). In this mode, the HDMI output replicates the HD Preview video output.
The alternative mode is MENUS (DVI). In this mode, the HDMI output is compatible with most DVI based
SXGA or higher resolution computer monitors. Use is as an external Viewfinder.
NOTE: HDMI output is not active when PLAYBACK is set to 1080p.i.e. no output is available when
the RED-ONE camera is placed into playback.
NOTE: If an ANAMORPHIC record mode has been selected (2K ANA, 3K ANA, 4K ANA) the video
visible on the HDMI output has been stretched 2:1 to illustrate the final 2.40:1 aspect ratio of the
final image projection. The actual recorded image is 1.2:1 aspect.

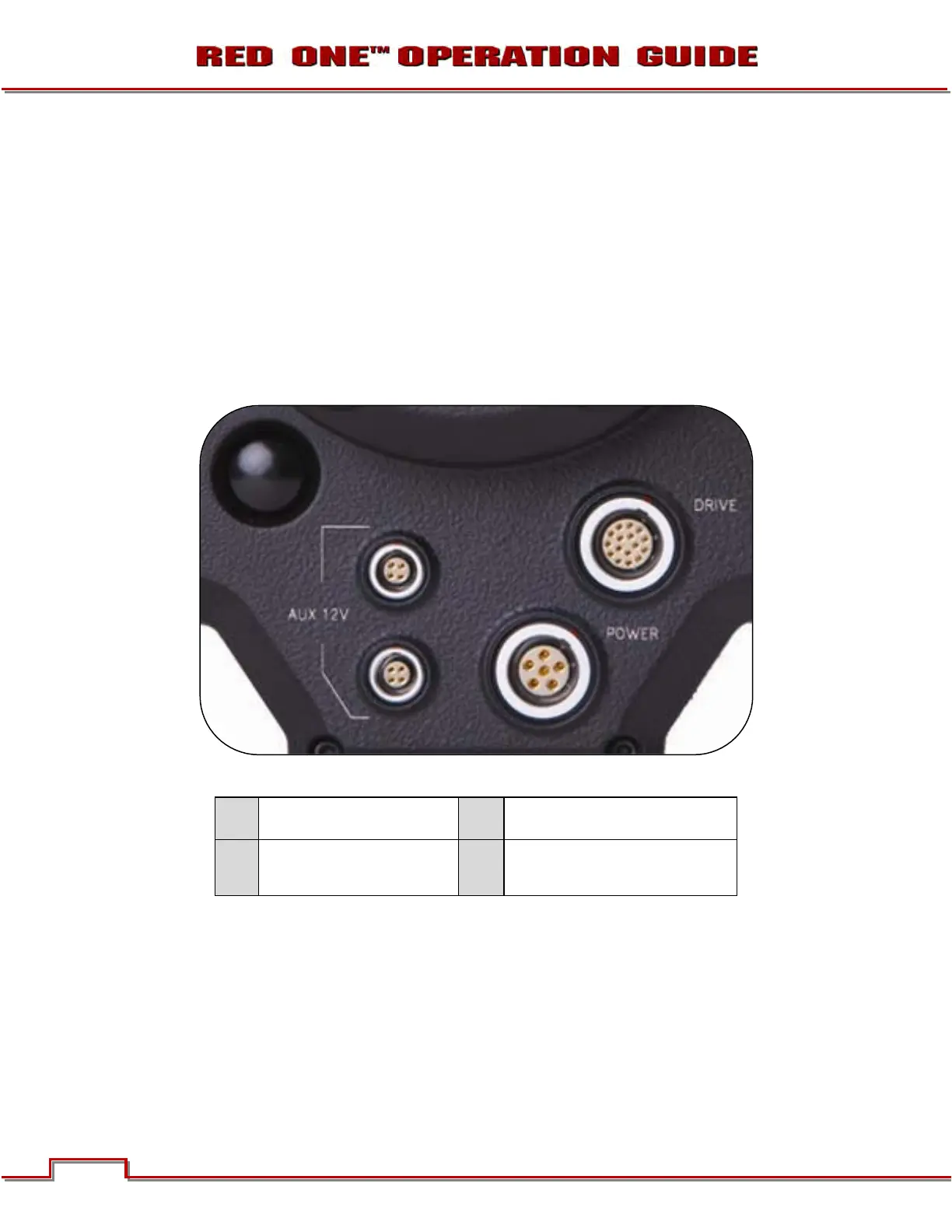

REAR OF CAMERA
A
Camera DC Power Input
11.5 – 17V
C
Aux Power / GPIO A
B
e-SATA Interface (to RED-
DRIVE or RED-RAM digital
magazine)
D
Aux Power / GPIO B
A
B
C
D
