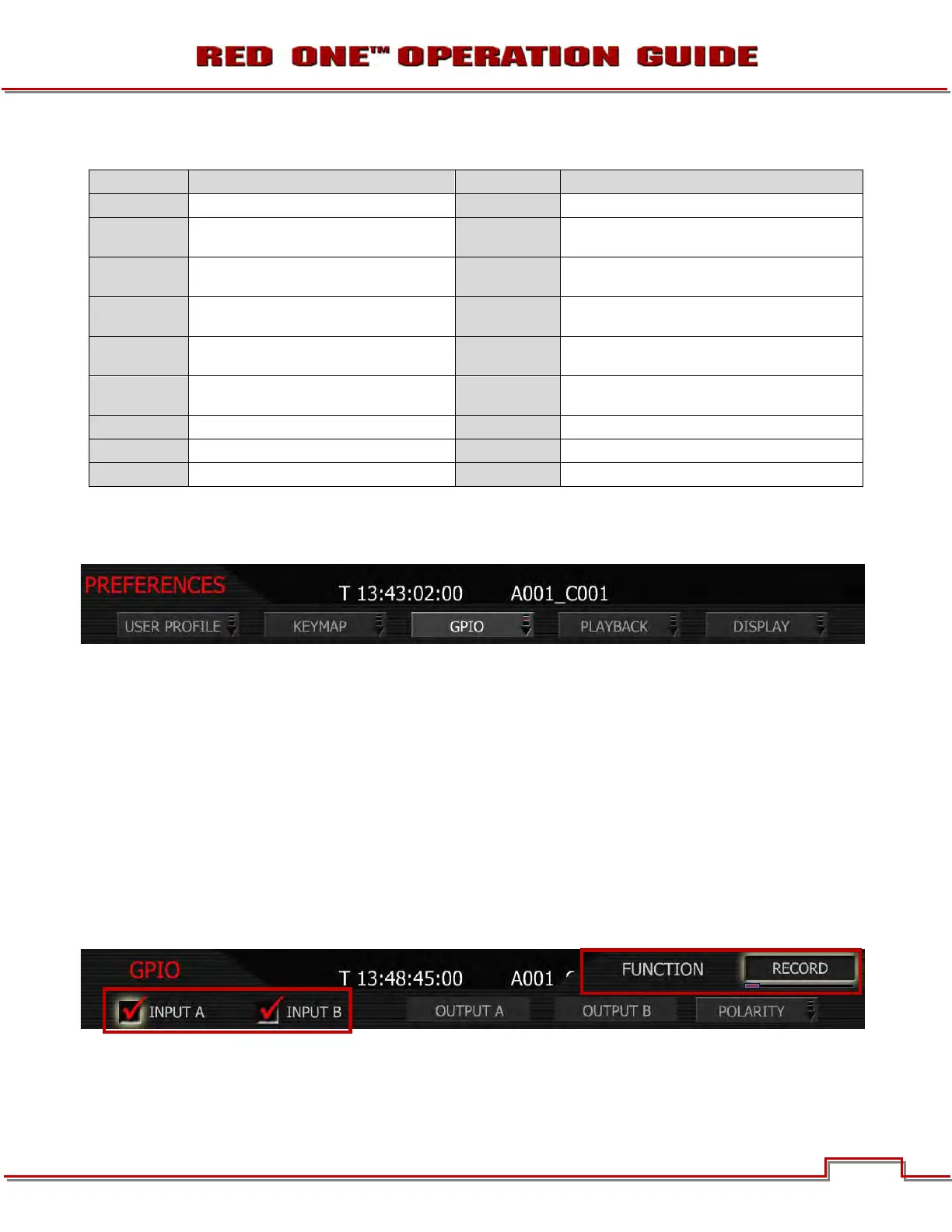

Available functions that may be allocated to the User Keys are:
Function Description Function Description
Record
Initiates camera record start / stop
Zebra 2
Toggles Zebra 2 On / Off
Magnify
Initiates camera monitor path magnify
function
+ Volume 1
Increases volume of Channel 1 (when in mi-
crophone mode)
Auto WB
Initiates camera Auto White Balance
- Volume 1
Decreases volume of Channel 1 (when in
microphone mode)
Color
Toggles the EVF Color selection On/Off
+ Volume 2
Increases volume of Channel 1 (when in mi-
crophone mode)
View RAW
Toggles VIEW RAW selection On/Off
- Volume 2
Decreases volume of Channel 1 (when in
microphone mode)
Meter
Toggles the EVF Meter Assist selection
On/Off
+ ISO
Increases camera Sensitivity
Ramp
Initiates Variable Speed Ramp
- ISO
Decreases camera Sensitivity
Timelapse
Initiates Timelapse Record Mode
+ Shutter
Increases camera Shutter Speed
Zebra 1
Toggles Zebra 1 On / Off
- Shutter
Decreases camera Shutter Speed
GPIO
GPIO selects the GPIO preferences sub-menu.
INPUT A/B
Permits the function of GPI A and B to be defined as:
RECORD (Default): starts standard mode (video and audio) record. Subsequent trigger stops record.
PRE-RECORD: activates Pre-record. Subsequent triggers start / stop record. Refer to SYSTEM MENU
CONTROLS > MEDIA MENU > PRE-RECORD for complete information.
TIMELAPSE: activates Time-lapse. Subsequent trigger activates one-shot or burst recording.
RAMP: initiates variable frame rate ramp speed change.
SHUT DOWN: initiates a controlled camera power down
PLAY CLIP: causes the selected Clip to play back at normal speed
NEXT CLIP: cues the selected clip to end. If at end, cues to beginning of next clip.
OUTPUT A/B
Permits the function of GPO A and B to be defined as:
