ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-91
Note: If mains voltage applied at X5 then DC bus dynamic brake not
executed! The ZKS control is realized with the currentless
input.
L1
L2
L3
R
ZKS
L+
L-
Ap5416f1.fh7
t
d
&
Mains voltage:
applied: "H"
not applied: "L"
ZKS input:
with current: "H"
without current: "L"

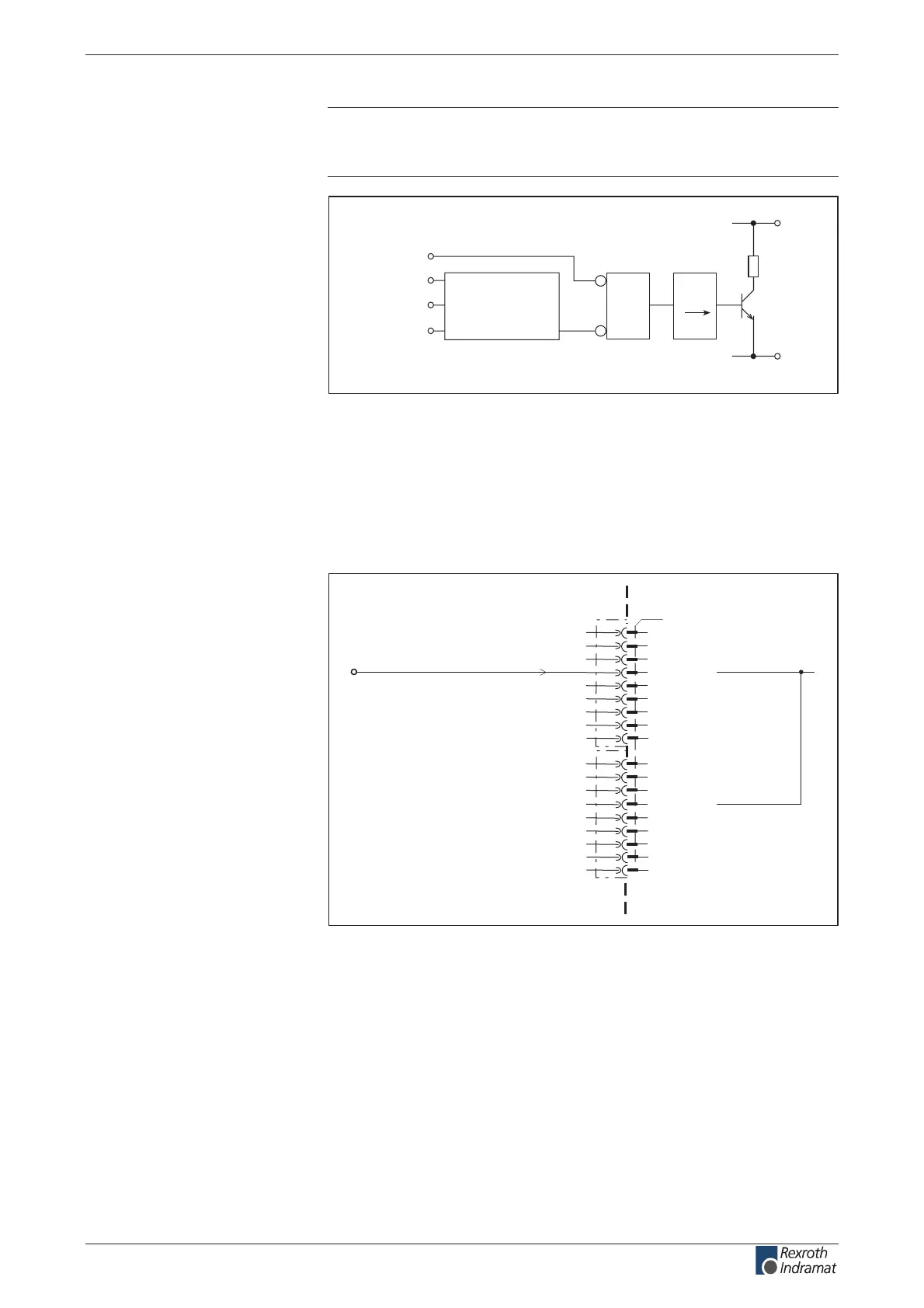

Fig. 4-146: Block diagram interlock ZKS/Mains
See page 4-25: "Arranging the Central supply" and
page 11-5: "Control Circuits with internal DC bus dynamic brake (ZKS)".
U
D
power supply
AP5285F1.FH7
n.c.
n.c.
X11
1
2
3
4
5
6
7
8
10
11
12
13
14
15
n.c.
n.c.
16
18
17
9
U
DPower supply
n.c.
n.c.
n.c.
n.c.
device-external device-internal
U
DPower supply
U
DPower supply
Fig. 4-147: Bb drive, Bb power supply and U
D
power supply
See page 4-47: "Drive halt (AH) and Drive enable (RF)".
Protecting the ZKS setup with
mains voltage applied:
Connection
U
D
mains section:
Input circuit
U
D
mains section:
