4-102 ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 ECODRIVE03 Drive Controllers
Control inputs for stepper motor mode (SM1+, SM1-,
SM2+, SM2-)
Note: The control of the stepper motor interface with dierential
signals is preferable to single-channel control because the
noise immunity of dierential signals is better than zero-
referenced signals.
AP5315F1.FH7
Uext
R
pull up
SM+
SM-
0Vext
Schematics

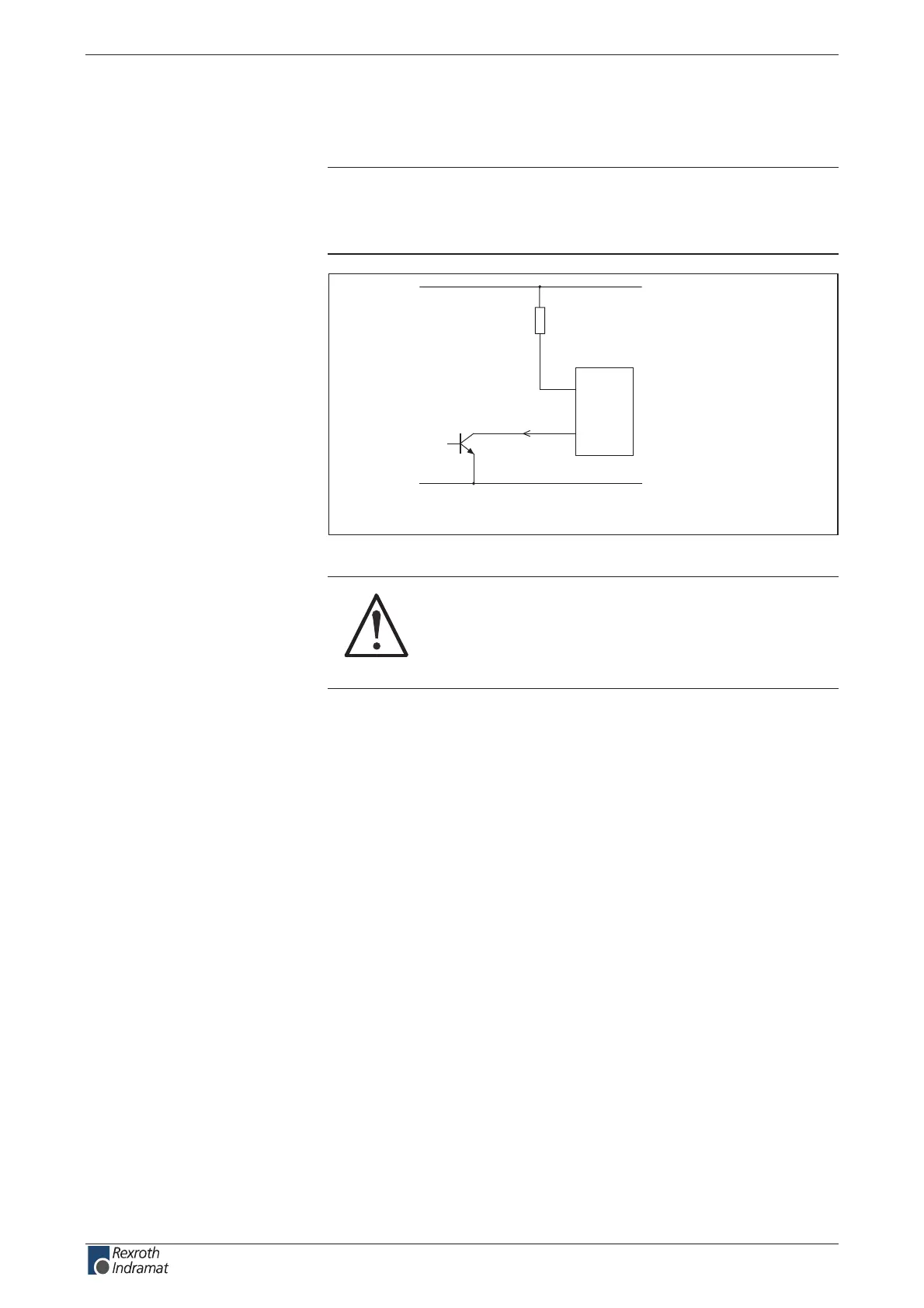

Fig. 4-173: Controlling with open collector outputs
CAUTION
Overloads damage inputs!
 Resistance R
pull up
must be sized so that the
maximum allowed input current is never exceeded.
Connection
single channel:
