RFL Electronics 9780 - Page 27

June 21, 2002 Publication No. PI9780
6
15 1/4”
(387.35mm)
▼
▼
▼
▼
5 1/4”
(133.44mm)
▼
19”
(483.00mm)
18 5/16”
(465.1mm)
▼

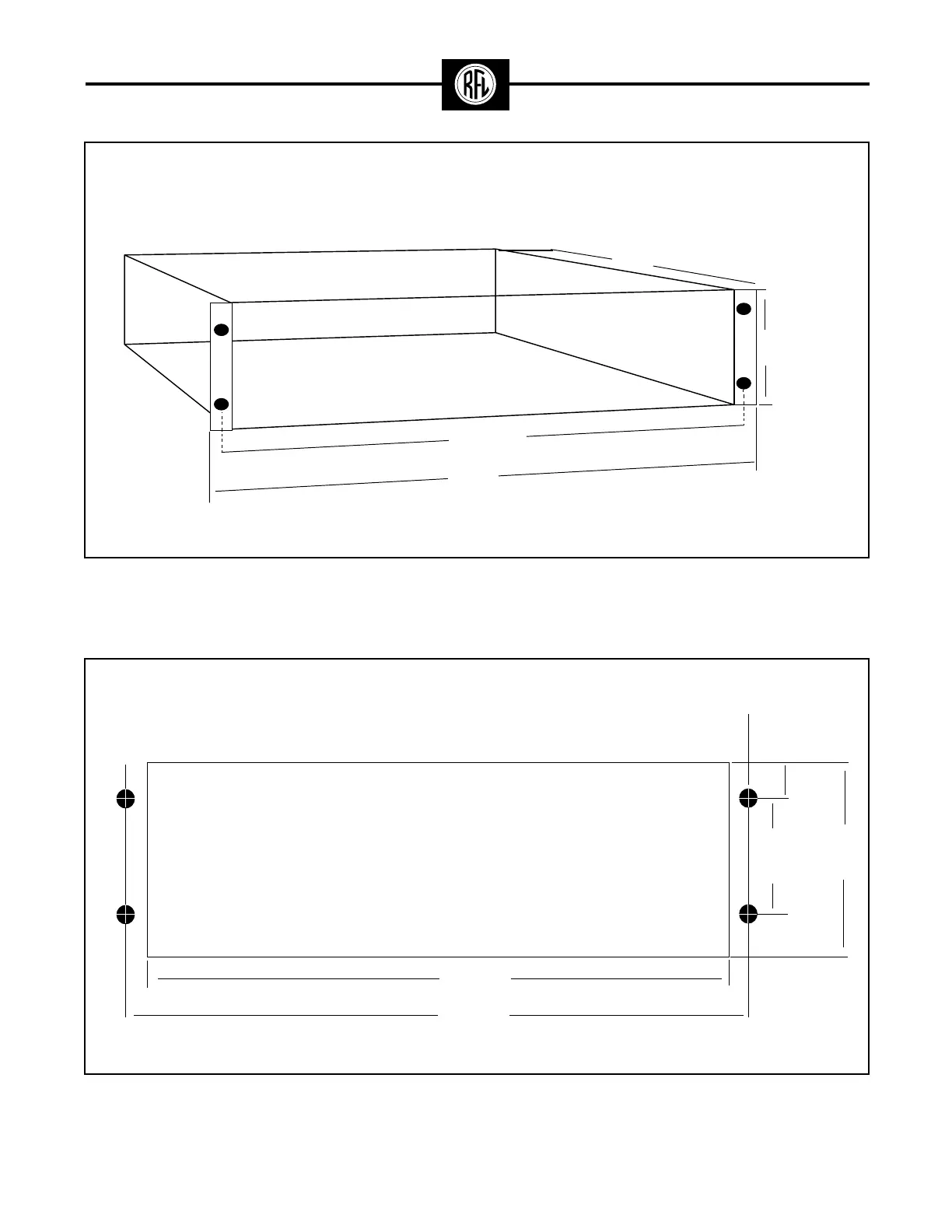

Figure 6. RFL 9780 Programmable FSK Powerline Carrier
Figure 7. RFL 9780 Programmable FSK Powerline Carrier Panel Mounting
CUT OUT
▼
▼
5 1/4”
▼
▼
1 1/2”
▼
▼
2 1/4”
▼
Diameter of hole .187
(4) required
▼
▼
▼
▼
17 5/8”
18.312”
