Reflected PReflected P
Reflected PReflected P
Reflected P
ower Measurement Usingower Measurement Using
ower Measurement Usingower Measurement Using
ower Measurement Using
RFL Sequence of Events Module OptionRFL Sequence of Events Module Option
RFL Sequence of Events Module OptionRFL Sequence of Events Module Option
RFL Sequence of Events Module Option

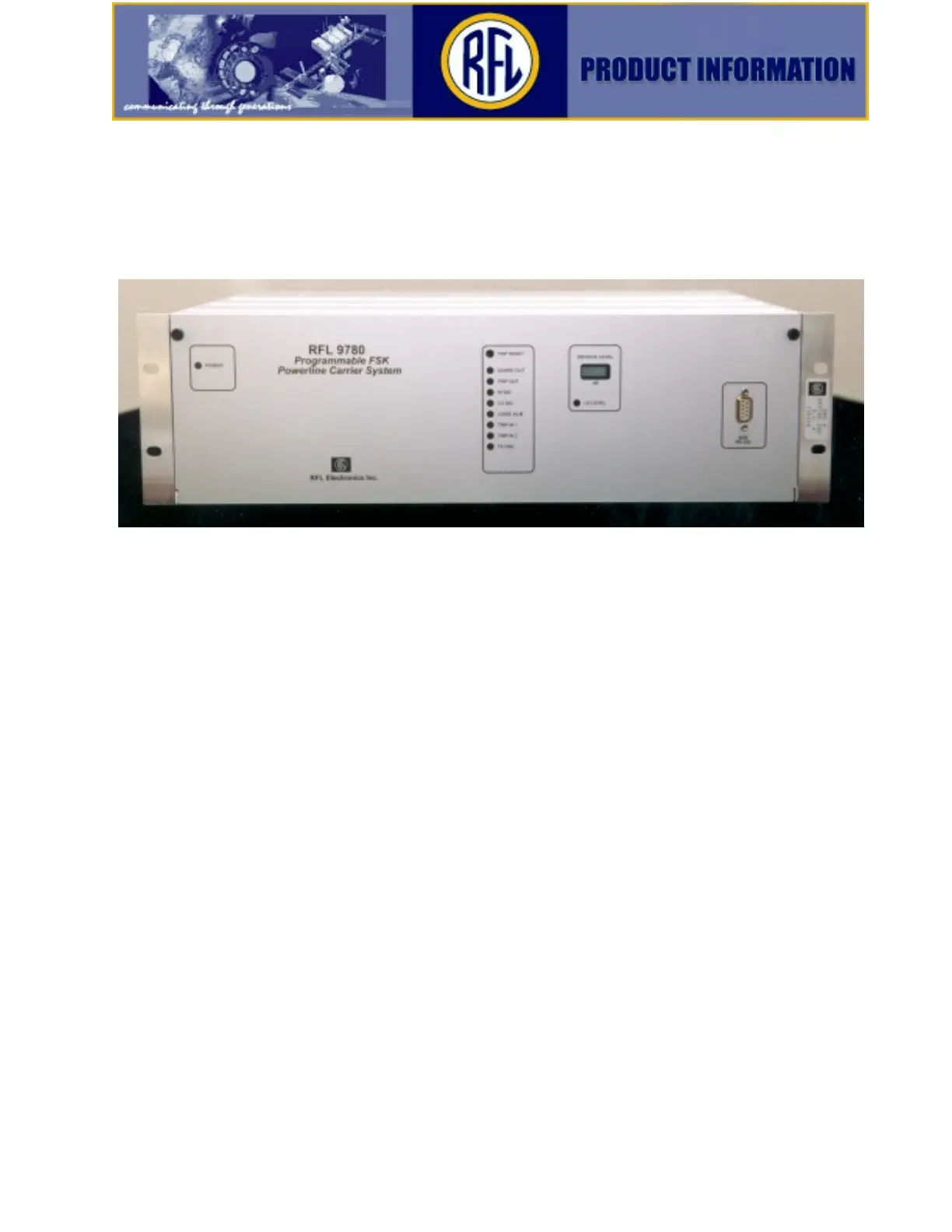

RFL 9780/RFL 9785 P RFL 9780/RFL 9785 P
RFL 9780/RFL 9785 P RFL 9780/RFL 9785 P
RFL 9780/RFL 9785 P
ower Line Carrierower Line Carrier
ower Line Carrierower Line Carrier
ower Line Carrier
RFL Electronics Inc.
(973) 334-3100
February 2003
Innovation from RFL:
An essential part of any powerline carrier commissioning, or maintenance program requires verifying the efficient
transfer of power from the powerline carrier equipment to the transmission line. Previously this test required taking
the powerline carrier system out of service, and connecting SWR meters, and often, frequency selective voltme-
ters, in the switchyard, at the line tuning equipment. RFL Electronics Inc.’s Sequence of Events module now offers
a convenient, alternative to this testing method.
The RFL Sequence of Events option now offers the ability to locally, or remotely verify the transmitter reflected
power, as well as both the transmit, and receive signal levels. Besides providing instant channel status , this
feature provides the answer to the question, “which end of the line has the problem?” without even leaving the
office.
Features
·
Built-in optional module for RFL 9780 and RFL
9785 Power Line Carrier
·
Display of Received Signal Level (Rx) in dB,
Transmit Power (Tx) in dB and Reflected
Power in percent
·
Eliminates the need for reflected power meter
test equipment
·
Displays the true reflected power as seen by
each carrier set in dual-carrier applications
·
Easy detection of any standing wave or other
channel problem reducing field service
troubleshooting time
·
Enables optimization of carrier performance and
line tuning
·
Can be read off locally or remotely
·
Transmit Power (Tx) and Reflected Power display veri-
fies that there is no problem with losses/reflected
power from the local end
·
Remote interrogation enables diagnostics of
both ends from one location
·
Easy, remote, checking of increased losses due
to weather and/or contamination
·
Provides the ability to identify loss of carrier
due to line impedance, or attenuation changes
·
Part of the RFL Browser-based HMI Interface
for Setting, Configuration and Diagnostics
·
Existing RFL 9780/RFL 9785 can be upgraded
in the field
·
Received Level (Rx) display verifies correctly
received signal from remote end
Reflected Power Meter
Publication No. RFL RPM
