4.6.7 Cleaning the quality module (QS I, QS I-LLD)
When required, clean the camera lens using a slightly damp micro-fiber cloth.
NOTICE
Store the cleaning cloths for the camera lens separately so as to avoid contamination by foreign
bodies.
CAUTION
The lens must not be adjusted!
1. Open housing of tube recognition unit by loosening A screws and removing B cover.

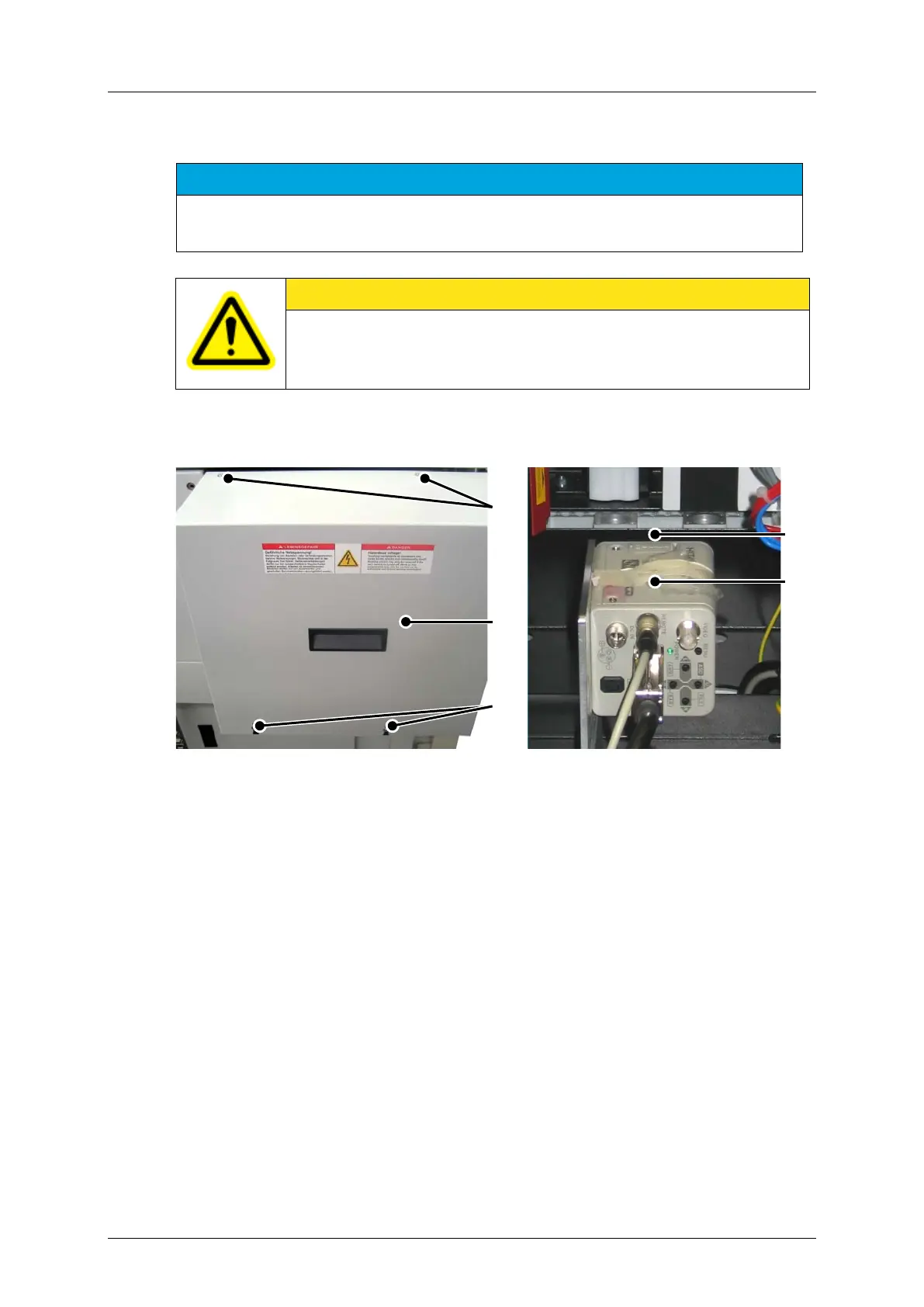

Figure
4-25: Cover of the tube recognition unit
Figure
4-26: QS I-LLD camera
A
Fastening screws
C
Lens of QS I- camera
B
Cover of tube recognition unit
D
QS I- camera
2. Clean C lens from the rear.
3. Install B cover again, and secure in place with A screws.
B
A
A
C
D
