Part B - System description cobas p 512
2-28 Operator's Manual - Version 1.6 - 10/2015
2.2.16 Mains connection and system interfaces
The interface block of the system is located on the bottom left-hand side at the rear of the
device.

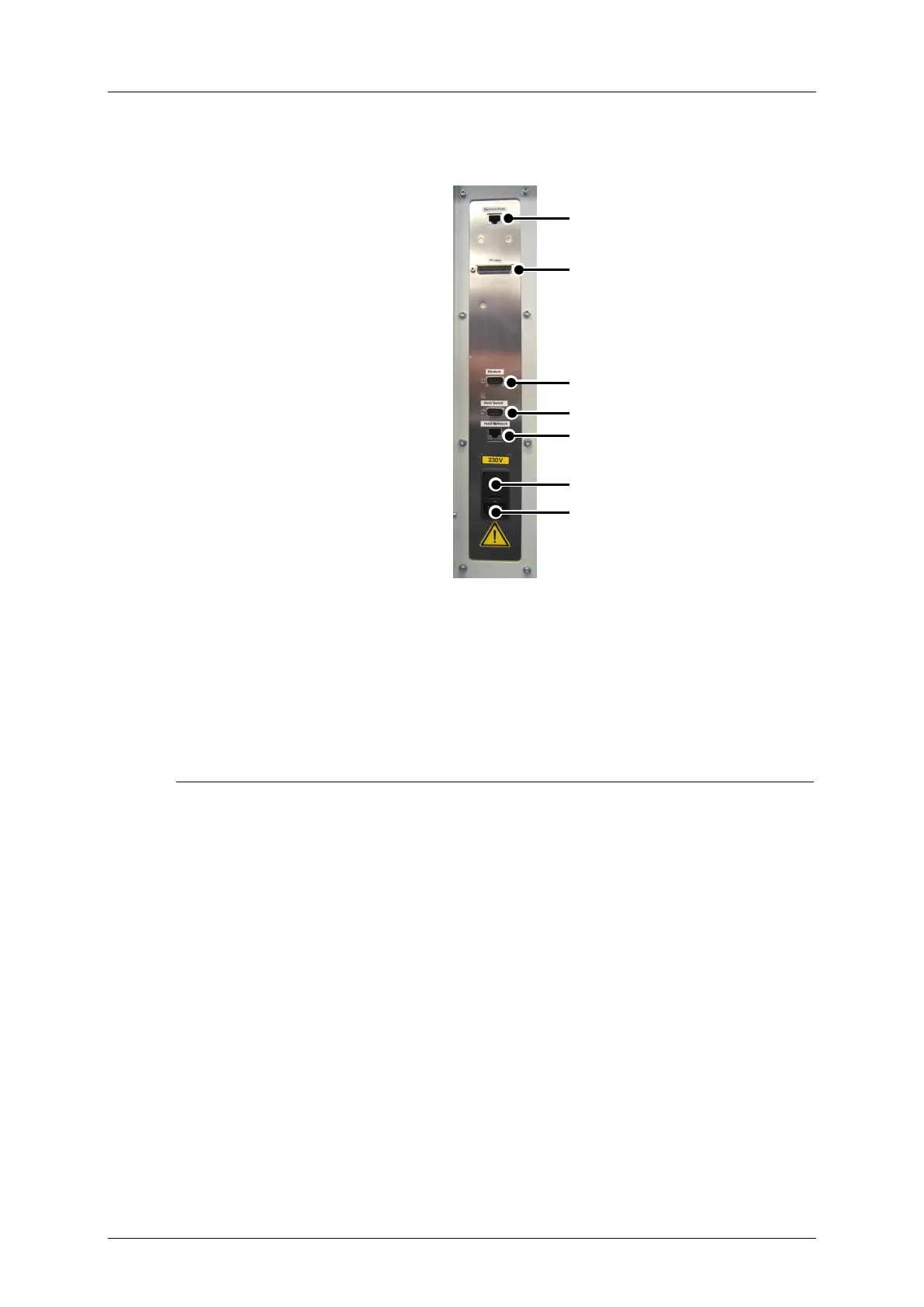

Figure 2-24: Interface block
A
Service port (Ethernet)
E
Network (Ethernet)
B
Printer (parallel)
F
Mains fuse
C
Modem (serial)
G
Mains connection
D
Host connection (serial)
Connections
Interface
Connection
Remarks
Network
Serial (RS232)
The connector is a 9-pole Sub-D socket.
Network
Ethernet (RJ45)
Host connection (LIS)
Service
Ethernet (RJ45)
Service port for the service technician.
Printer
Parallel
The connector is a 25-pole Sub-D socket.
Modem
Serial (RS232)
For remote servicing purposes.
A second 9-pole Sub-D socket serves as the connector.
A
B
C
D
E
F
G
