2 Installation Multiplate® analyzer
Installing the analyzer
WARNING
Electric shock and analyzer damage due to use of unearthed connection
Without the protective earth wire the analyzer is not earthed and safe operation cannot
be guaranteed.
r Do not plug the analyzer into a non-earthed socket.
r Do not plug the analyzer into an extension cord that is plugged into a non-earthed
socket.
7 Plug in all sensor cables into the jack positions on the analyzer.

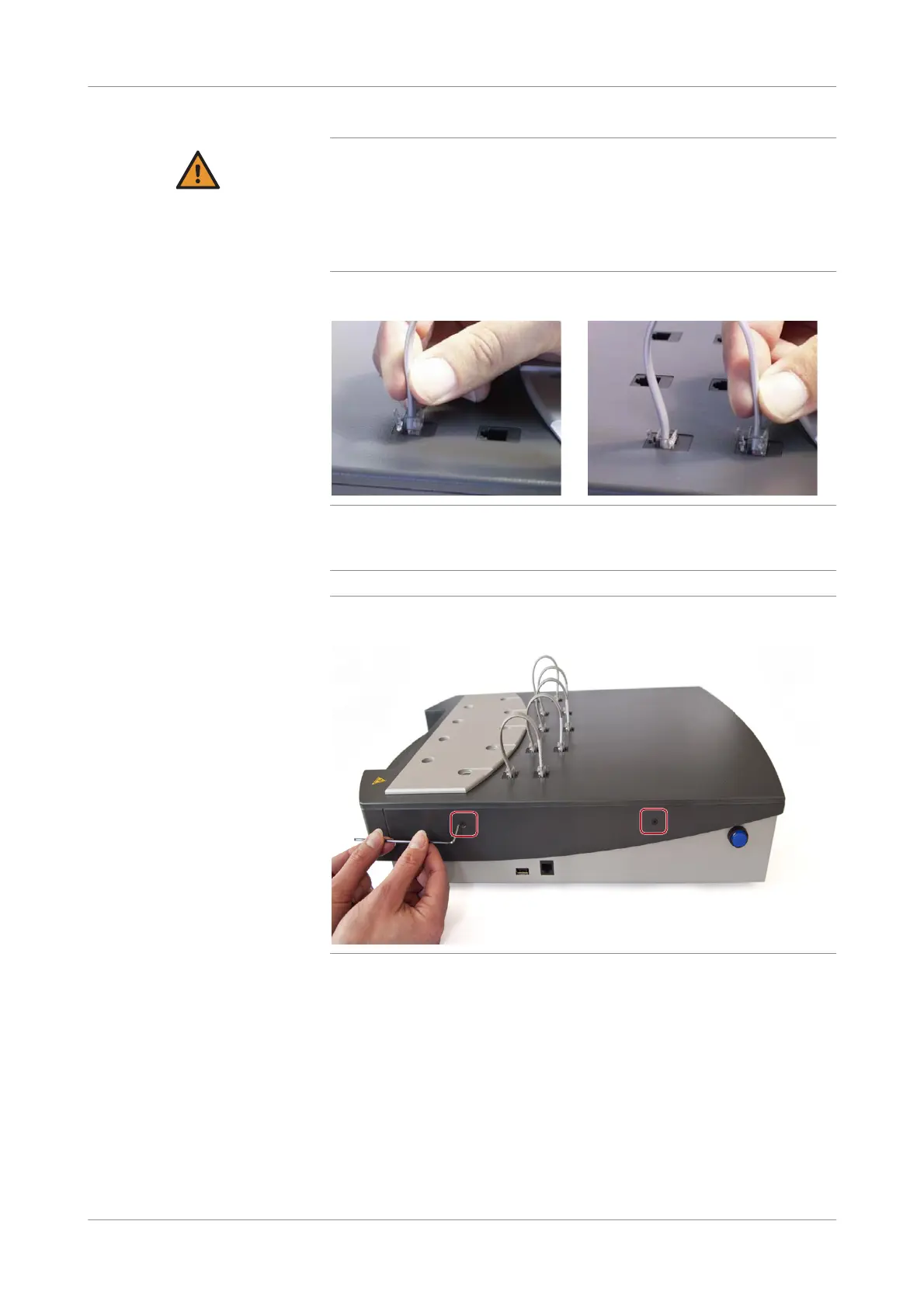

Figure 2-5 Installing sensor cables
8 Install the pipette holder.
q
This pipette holder is compatible with all analyzers from serial #100075 upward.
9 Unscrew two Allen 6 mm screws on the right side of the outer housing.
Figure 2-6 Removing Allen screws
