Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

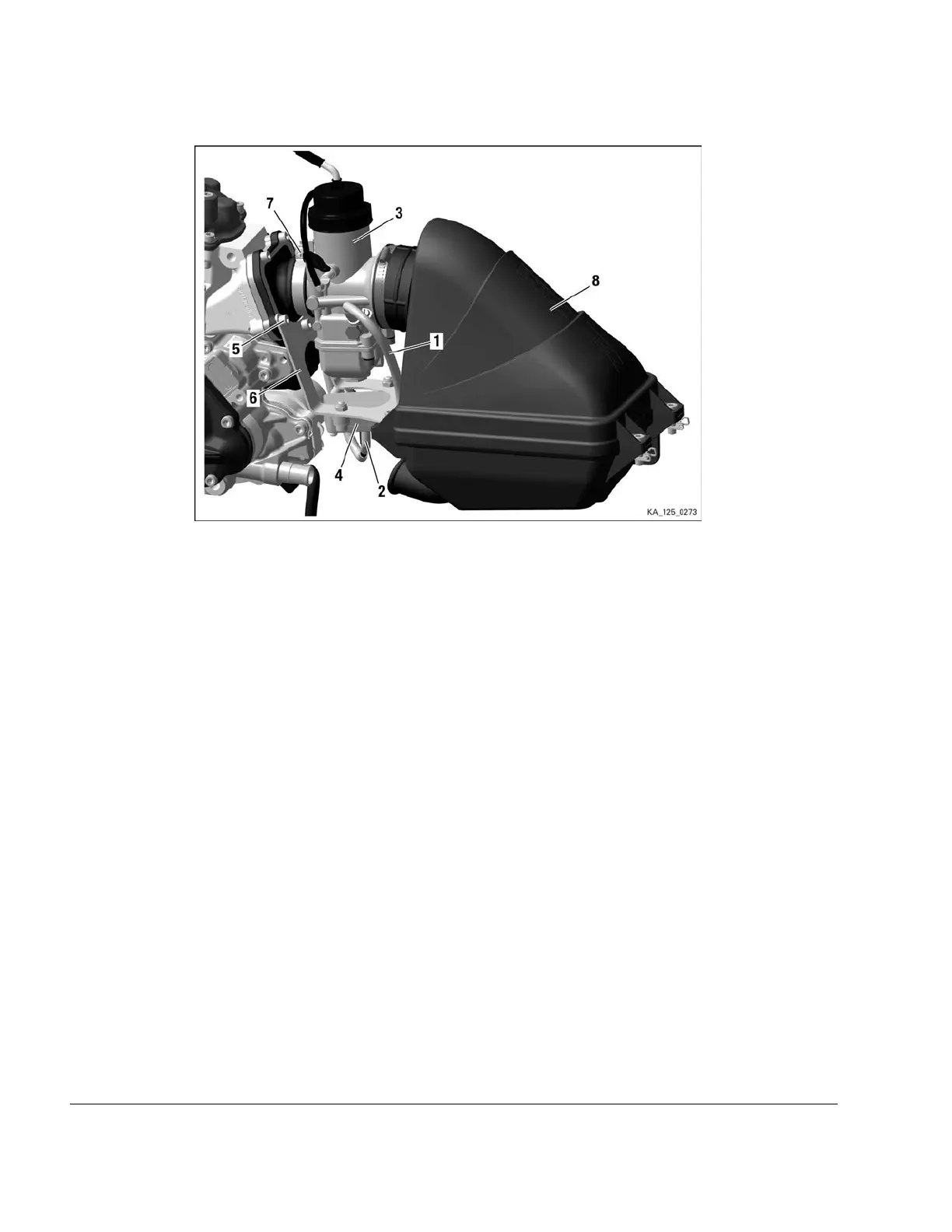

Figure 6.2: Carburetor and intake silencer
1 Fuel line to the carburetor 2
Impulse line
3 Carburetor 4
Fuel pump
5 Allen screw M6x25 6
Support bracket
7
Pipe clamp 51
8 Intake silencer
______________________________________________________
REMOVAL OF THE FUEL PUMP
Instruction See Figure: Fuel pump.
To remove the fuel pump the following steps are required:
1. Loosen 2 Allen screws M6 with washers fixed by lock nuts.
2. Remove the fuel pump (1) from the support bracket (2).
Chapter 6
Page 4
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
