Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

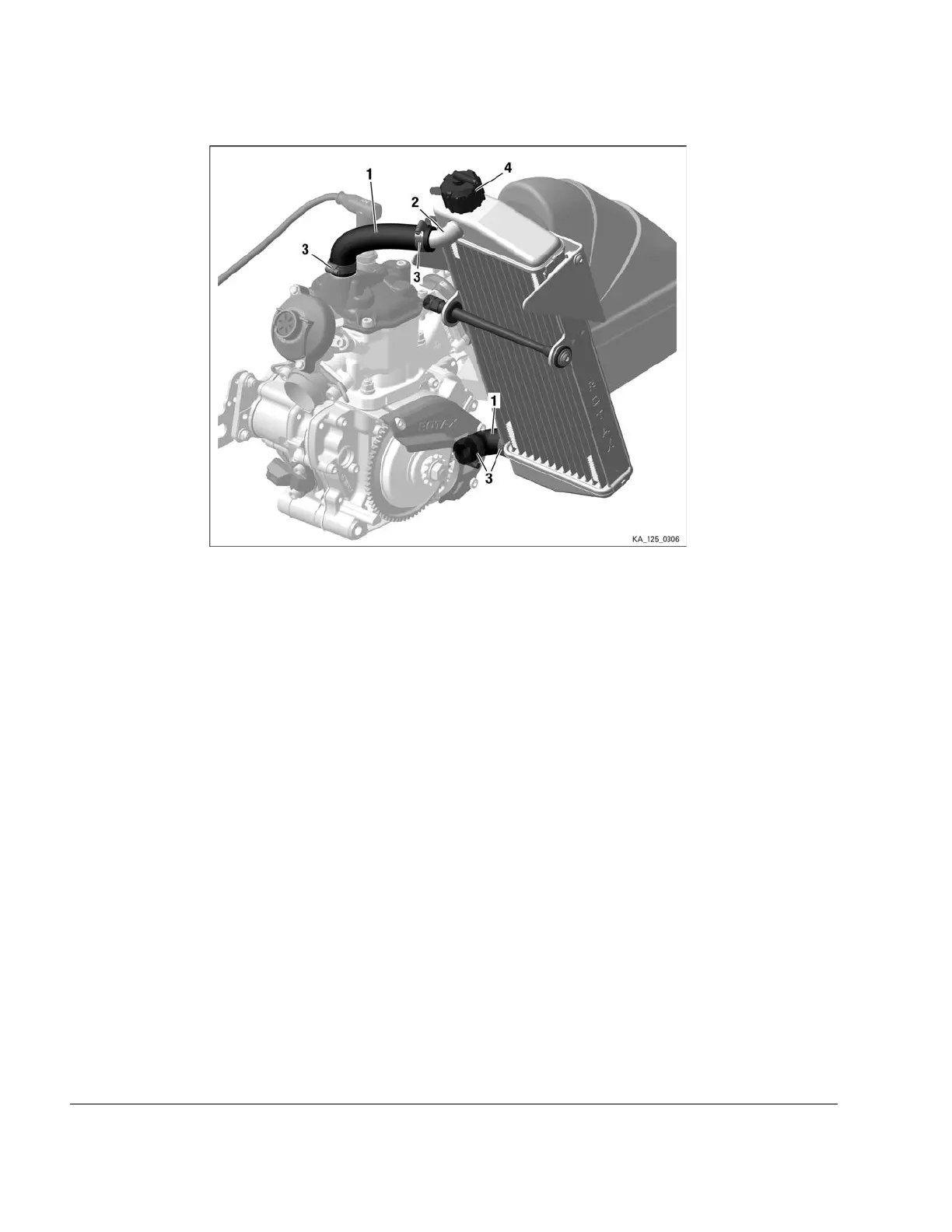

Figure 8.6: Installation of cooling water hoses
1
Cooling water hoses
2 Radiator connection
3
Hose clamps
4
Radiator cap
______________________________________________________
INSTALLATION OF THE RADIATOR ON ENGINE
Instructions See Figure: Installation of the radiator on engine
1. Install radiator with pre-mounted radiator bracket (3) on engine an tighten with Allen screw
M8x75 (2) and Lock washer A8 (1). Tightening torque 24 Nm (18 ft. lb).
Chapter 8
Page 8
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
