INSTALLATION OF CLUTCH AND STARTER GEAR ASSY.
General Follow the sequence exactly. The starter reduction gear assy. cannot be installed after in-
sertion of the starter gear assy.
INSTALLATION OF THE STARTER REDUCTION GEAR ASSY.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
897330 Lithium-based grease
Starter drive
Instruction See Figure: Starter reduction gear assy.
1. Lubricate starter reduction gear assy. (1) with lithium-based grease in the area of the two
bearing seats and the two gears.
2. Slide the thrust washer 8.1/150.5 (2) and starter reduction gear assy. (1) into the bearing
seat in the housing together.

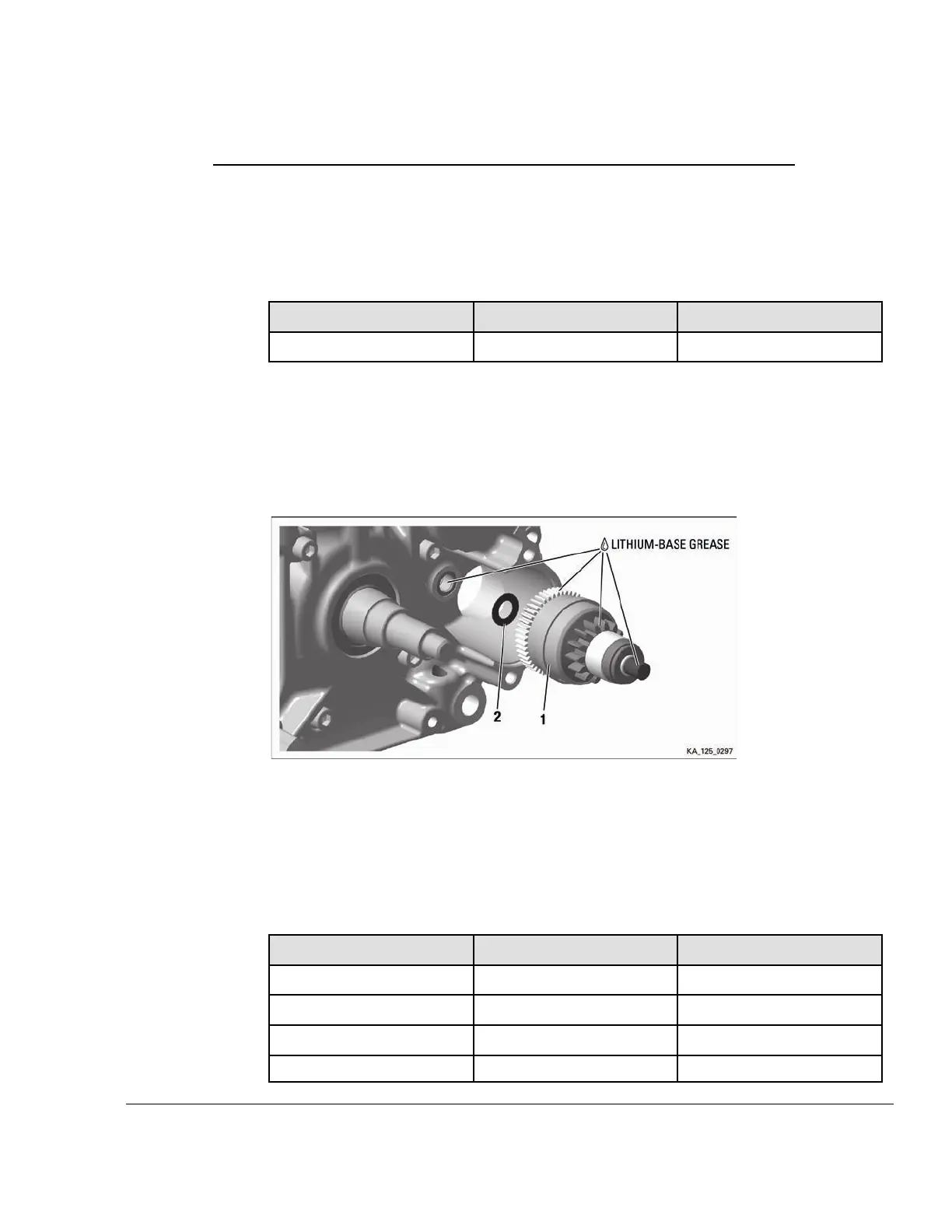

Figure 7.17: Starter reduction gear assy.
1
Starter reduction gear
2 Thrust washer
INSTALLATION OF THE STARTER GEAR ASSY.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
277381
Locking tool (crankshaft) Spark plug thread
676205 Fixation tool assy.
Starter gear assy.
899788 LOCTITE 648 Starter gear assy.
897651
LOCTITE 243 Starter drive
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 17
