REPAIR MANUAL

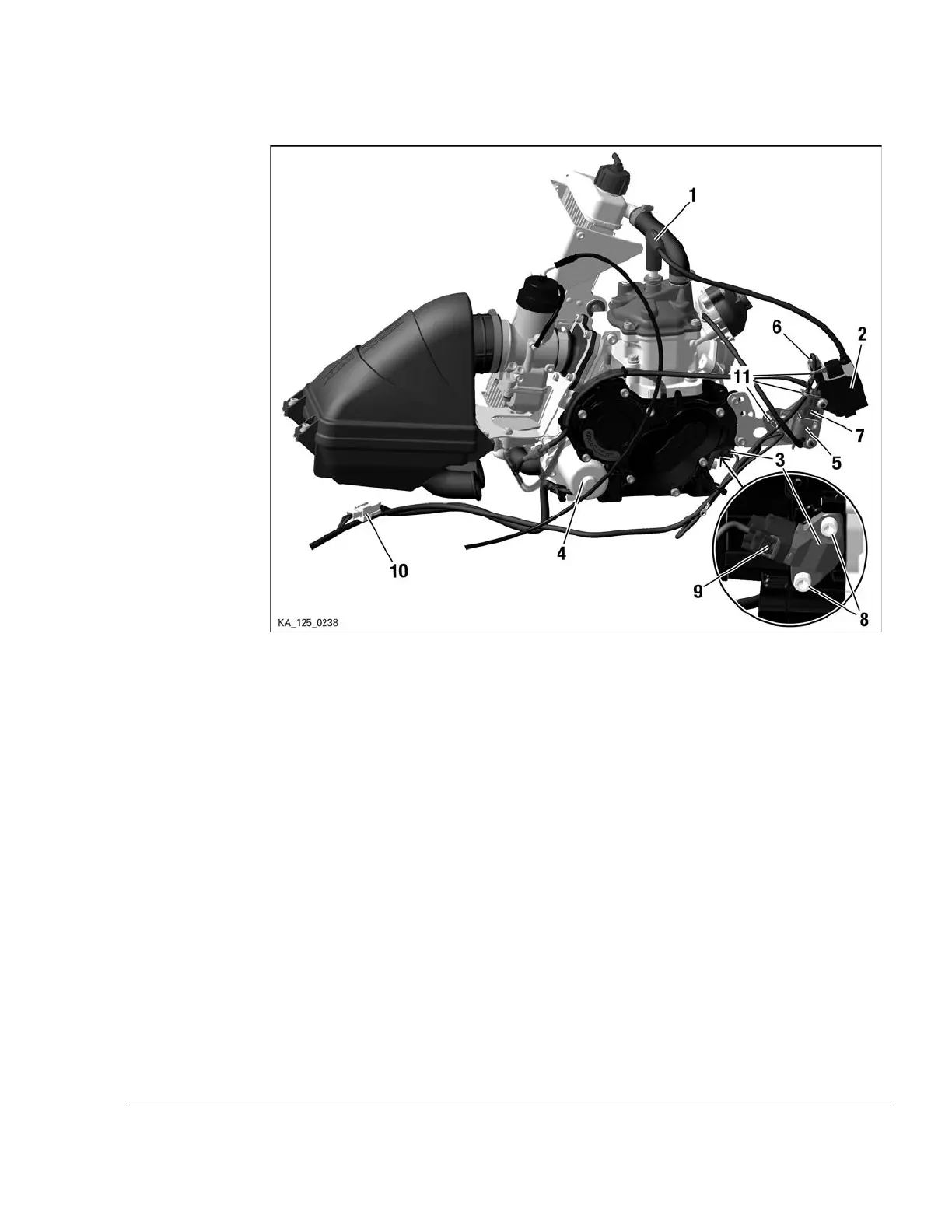

Figure 3.3: Ignition system
1
Spark plug connector
2
Ignition coil
3
Crankshaft positioning sensor (CPS)
4 Electric starter
5 Solenoid valve 6
Connector ignition coil
7 Solenoid connector 8 Allen screw M6x25
9 CPS connector 10 Starter connector
11 Cable tie
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 3
Page 5
