Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
Part no. Description
Field of application
297386
SILASTIC 732 Gasket
Instructions See Figure: Exhaust socket. Proceed as follows to install the exhaust socket:
1. Coat both sides of the gasket with SILASTIC.
2. Fasten the exhaust socket (1) to the cylinder (5) with a new gasket (4) and 2 Allen screws
M8x20 (3). Tightening torque 20 Nm (177 in.lb).
3. Check that the exhaust port is tightly seated on the cylinder.

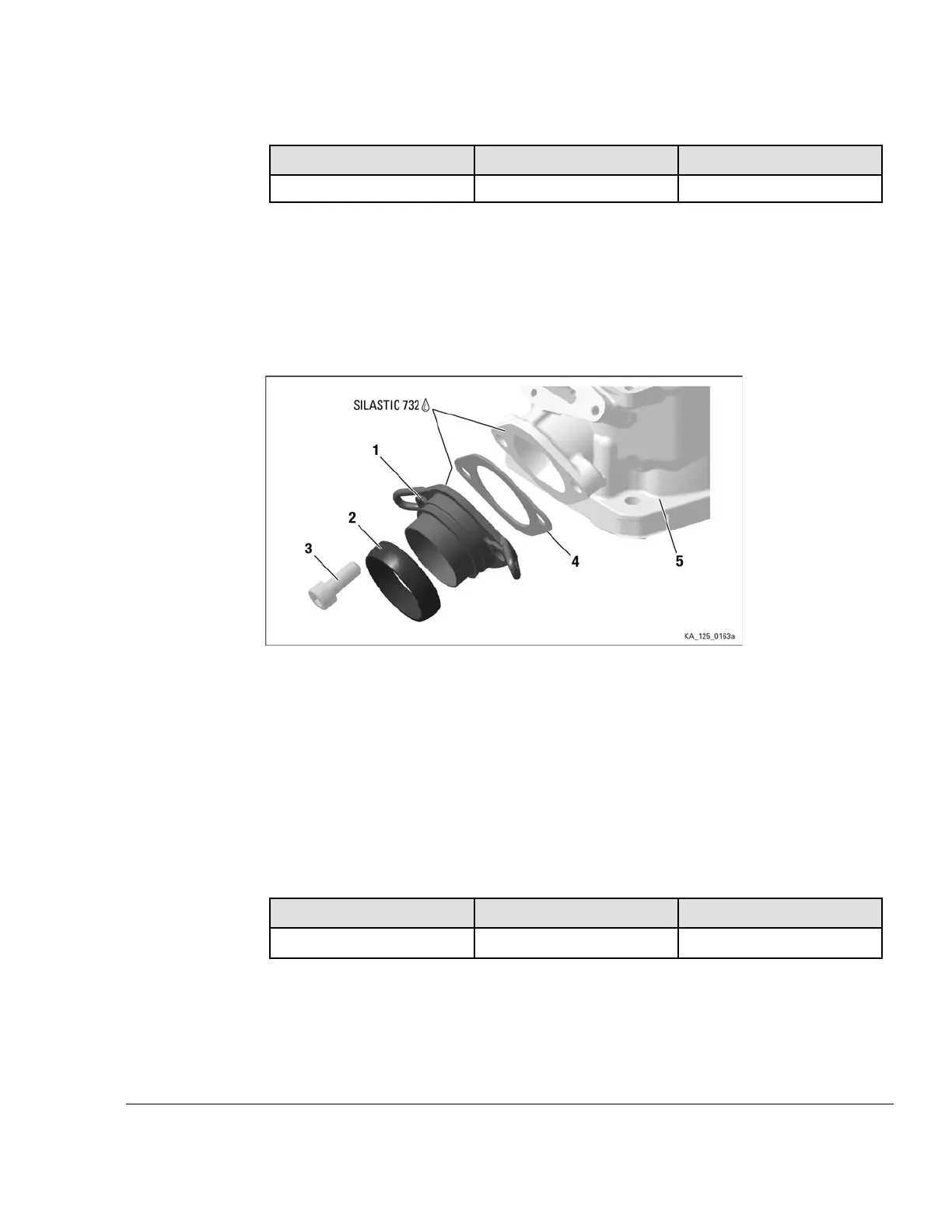

Figure 4.25: Exhaust socket
1
Exhaust socket assy.
2
Exhaust gasket
3 Allen screws M8x20 4 Gasket
5
Cylinder
______________________________________________________
INSTALLATION OF THE CARBURETOR FLANGE AND REED VALVE
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
899788 LOCTITE 648 Screw locking
Instructions See Figure: Carburetor flange and reed valve
Proceed as follows to install the exhaust socket:
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 4
Page 27
